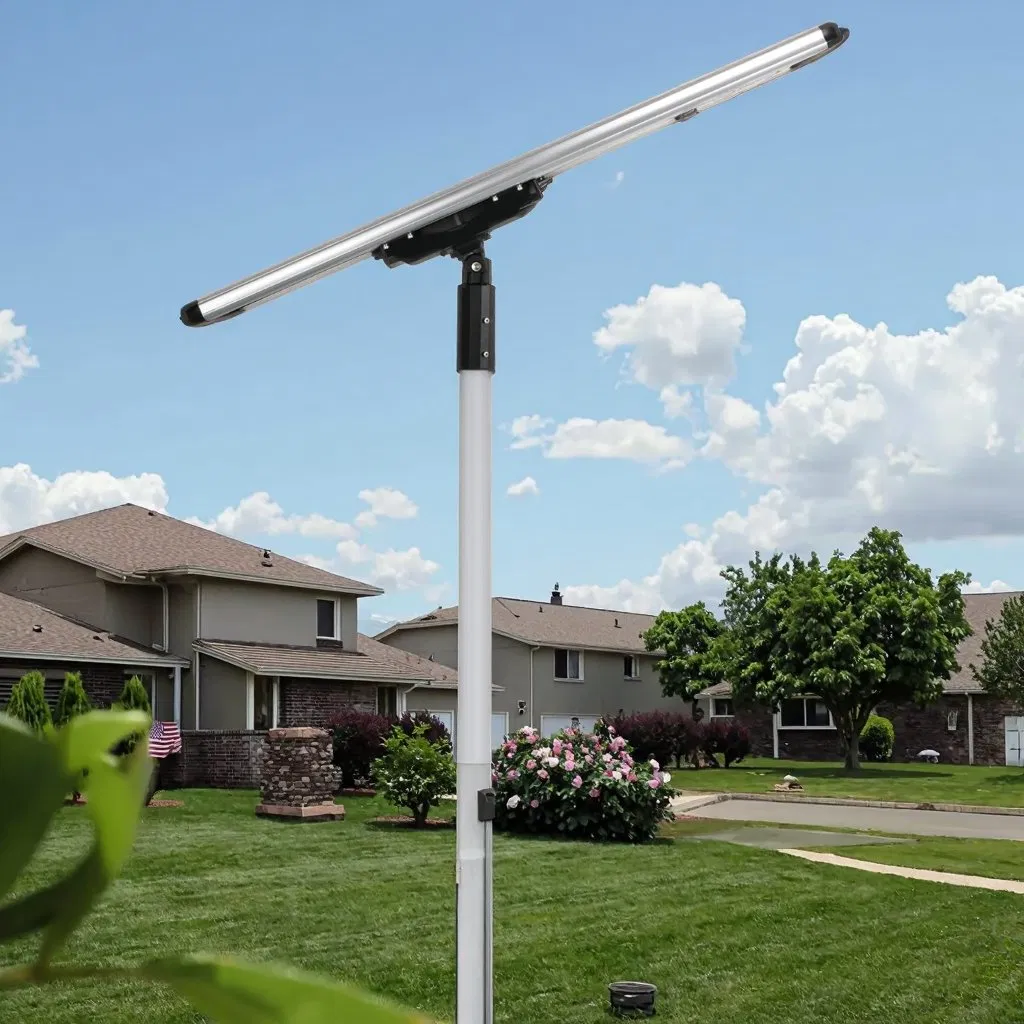

Waterproof IP66 LED Street Light for Outdoor Use

Basic Info.

Model NO.

SLSR440-400W

Lamp Body Material

Alu. Profile+Die Cast Alu.+Metal+PC Black/Sandy Gr

Light Type

Solar

Color Temperature

Pure White

Power

400W

Illumination Time

3-5 Rainy Days

Cell Type

30ah/12.8V New 32650 LiFePO4

Charging Time (H)

4

Usage

Garden, Street

IP Rating

IP65

Certification

CE, RoHS

Voltage

16V

With Light Source

Product Name

All in One LED Solar Street Light

Solar Panel Spec

125W/16V Double-Sided Monosilicon

Chips

3030/128PCS

Control Mode

Light Control+Time Control+Microwave Radar/PIR

Installation Pipe Diameter

57-63mm

Protection Class

IP65

Lamp Luminous Flux(Lm)

11000lm

CCT

3000/4000/6500K

Application

Courtyard, Community, Square, Industry, Road and Street

Specification

1694*454*124mm

Production Capacity

10000 Pieces/Year

Packaging & Delivery

Package Size

207.00cm * 46.00cm * 13.00cm

Package Gross Weight

43.000kg

Lead Time

30 days (1 - 10 Pieces)
To be negotiated ( > 10 Pieces)

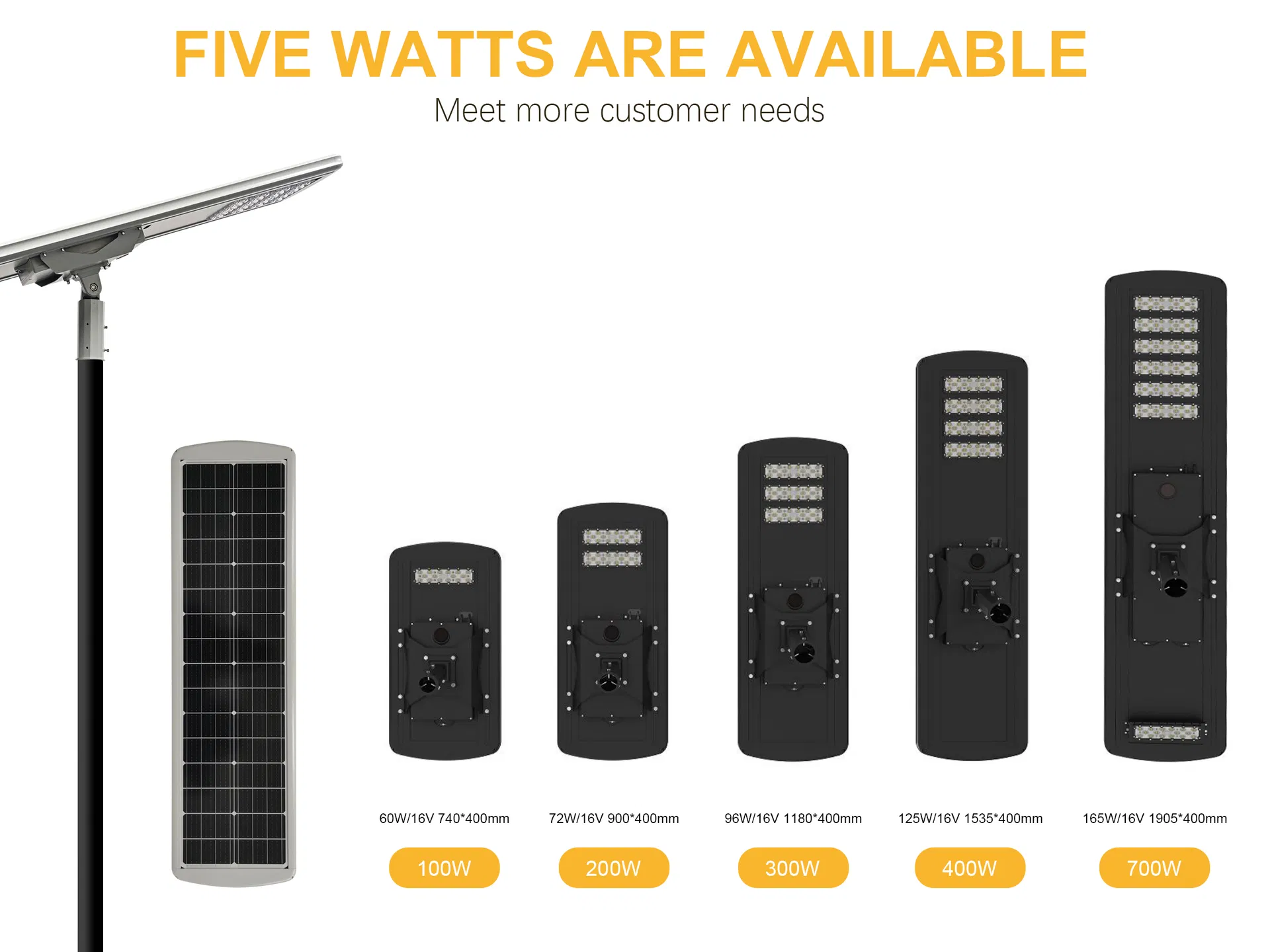

Specification

Model	Solar Panel SPEC	Battery SPEC	LED	CCT(K)	Lamp Luminous Flux(lm)	Installation Pipe Diameter (mm)
SLSR440-MZ15	60W/16V 740*400mm Monosilicon	24AH/12.8V New 32650 LiFePO4	3030/32pcs	3000/4000/6500	>4400	φ57-63
SLSR440-MZ110	72W/16V 900*400mm Monosilicon	30AH/12.8V New 32650 LiFePO4	3030/64pcs	3000/4000/6500	>6600	φ57-63
SLSR440-MZ115	96W/16V 1180*400mm Monosilicon	36AH/12.8V New 32650 LiFePO4	3030/96pcs	3000/4000/6500	>8800	φ74-80
SLSR440-MZ120	125W/16V 1535*400mm Monosilicon	42AH/12.8V New 32650 LiFePO4	3030/128pcs	3000/4000/6500	>11000	φ74-80
SLSR440-MZ110*3+MZ15	165W/16V 1905*400mm Monosilicon	60AH/12.8V New 32650 LiFePO4	3030/224pcs	3000/4000/6500	>13200	φ74-80
SLSR440-MZ120*2+MZ15	165W/16V 1905*400mm Monosilicon	60AH/12.8V New 32650 LiFePO4	3030/288pcs	3000/4000/6500	>13200	φ74-80
SLSR440-100W	60W/16V 740*400mm Monosilicon	24AH/12.8V New 32650 LiFePO4	7070/16pcs	3000/4000/6500	>4400	φ57-63
SLSR440-200W	72W/16V 900*400mm Monosilicon	30AH/12.8V New 32650 LiFePO4	7070/32pcs	3000/4000/6500	>6600	φ57-63
SLSR440-300W	96W/16V 1180*400mm Monosilicon	36AH/12.8V New 32650 LiFePO4	7070/48pcs	3000/4000/6500	>8800	φ74-80
SLSR440-400W	125W/16V 1535*400mm Monosilicon	42AH/12.8V New 32650 LiFePO4	7070/64pcs	3000/4000/6500	>11000	φ74-80
SLSR440-700W	165W/16V 1905*400mm Monosilicon	60AH/12.8V New 32650 LiFePO4	7070/112pcs	3000/4000/6500	>13200	φ74-80

Product Description

1

The light efficiency of whole lamp could reach 180-260LM/w.

2

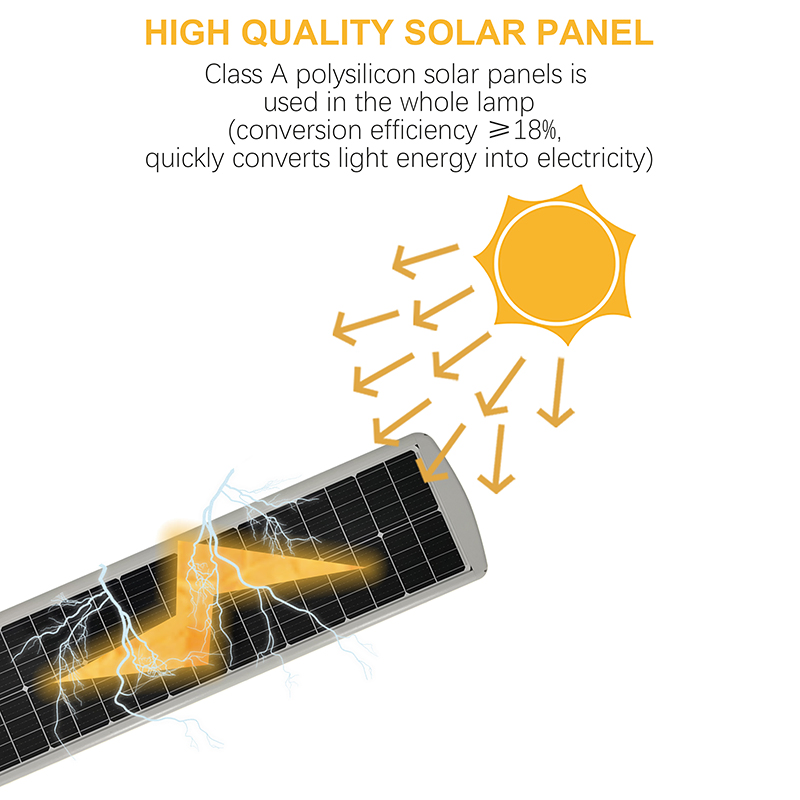

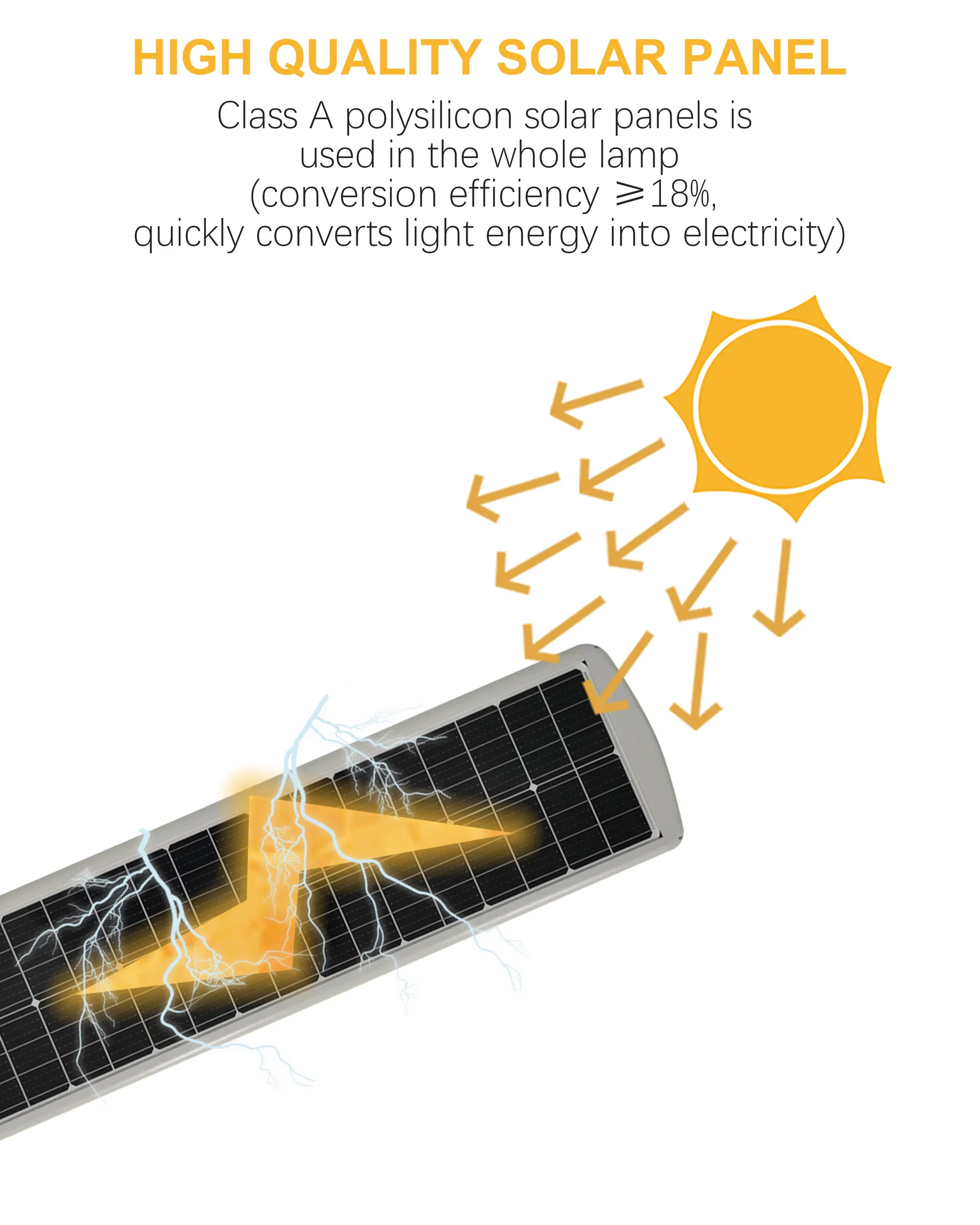

Class A polysilicon solar panels are used in the whole lamp, with a conversion efficiency of 18%, quickly converting light energy into electricity.

3

Power lithium iron phosphate battery is used in the whole lamp, new cell, more cycles, longer life.

4

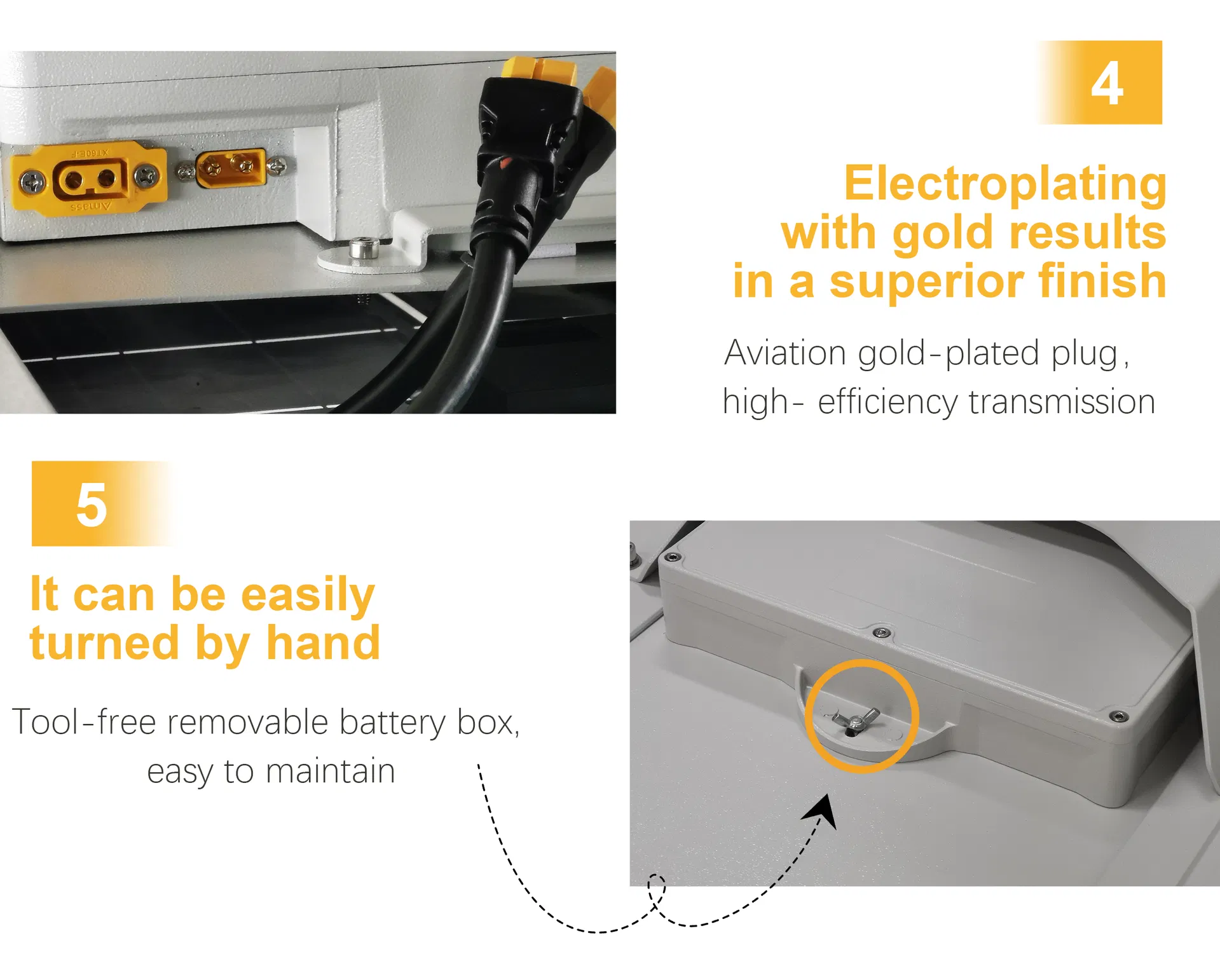

The whole lamp adopts 24K gold-plated waterproof plug, which could pass 60A current, providing fast charging and improving charging efficiency.

5

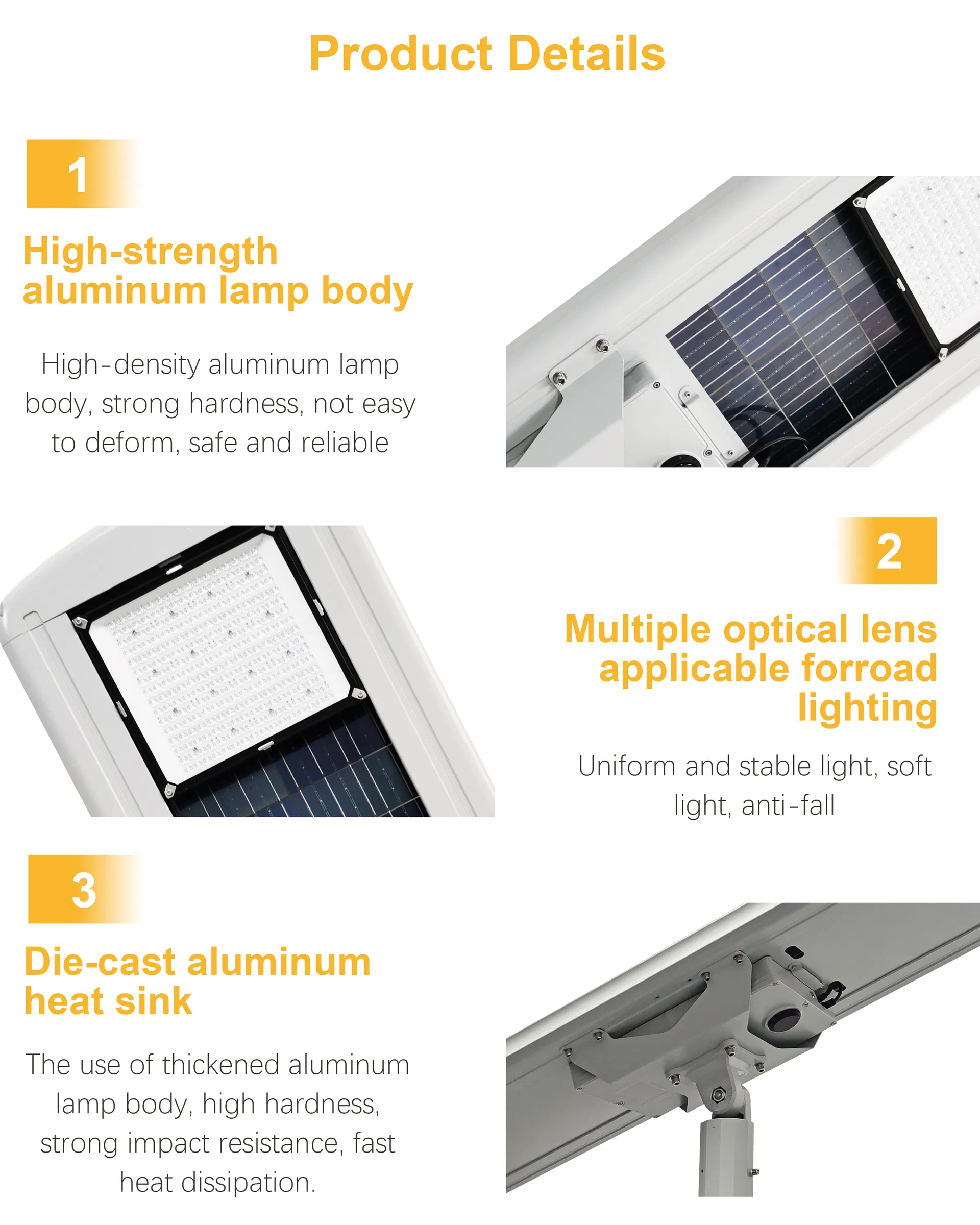

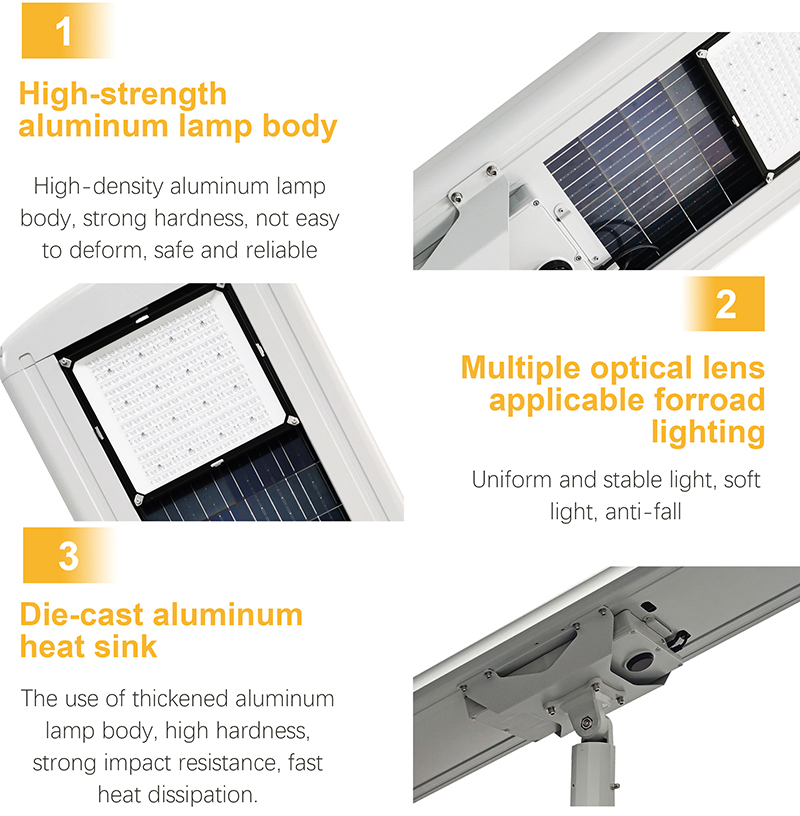

The whole lamp housing is made of high-quality die-cast aluminum alloy, Akzo spraying, offering high strength, corrosion resistance, and acid & alkali resistance.

6

PC optical integrated lens is used in the whole lamp, providing professional optical light distribution, making it more suitable for various application scenarios and avoiding light pollution.

7

New nano reflective materials are selected for the whole lamp, maximizing the brightness of the LED chip to reduce light waste.

8

The whole lamp can achieve uninterrupted lighting throughout the night in 365 days, featuring an intelligent AI control system for reasonable distribution of battery power.

9

The whole lamp can be continuously charged on rainy days using low light charging technology, ensuring normal charging on rainy days.

10

Streamlined design housing, in line with public aesthetics, has a certain self-cleaning ability and improves heat dissipation efficiency.

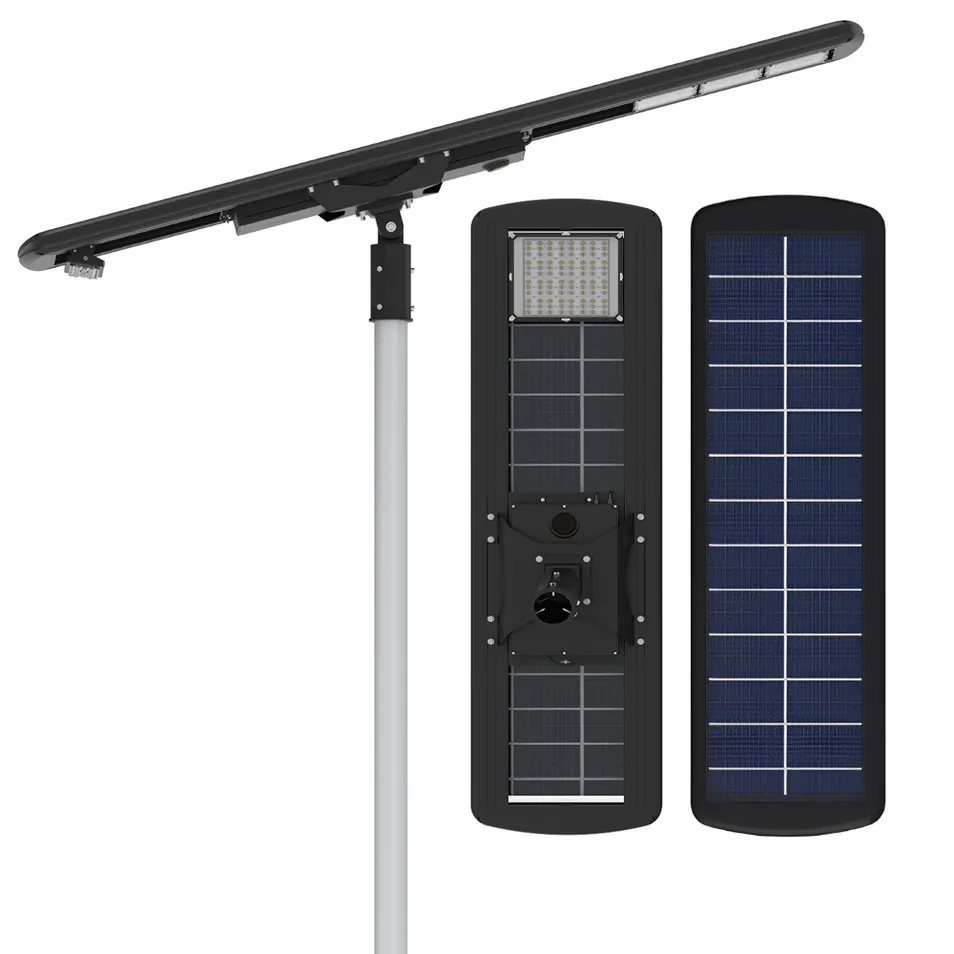

Waterproof IP66 LED Street Light Details 1

Waterproof IP66 LED Street Light Details 2

Certifications

Company Profile

We are a joint-stock enterprise specializing in the R&D, production, marketing and service of illumination & electric products. With 6 years of experience in the LED lighting field, the company mainly produces LED street lights, flood lights, high bay lights, panel lights and other LED products, as well as high-quality LED drivers. All products are exported to Europe, South America, Russia and other regions, well-received for excellent quality and competitive prices. It also provides OEM/ODM customization services according to customer requirements.

Renowned for its integrity, strong technical force and perfect after-sales service, the company has passed ISO9001:2000, CE, RoHS, SAA, BSCI and other certifications. Adhering to the tenet of "QUALITY&REPUTATION FIRST", it sincerely welcomes new and old customers to visit, negotiate and cooperate for common development.

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than expected.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q5. Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q6. How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including recall according to real situation.
