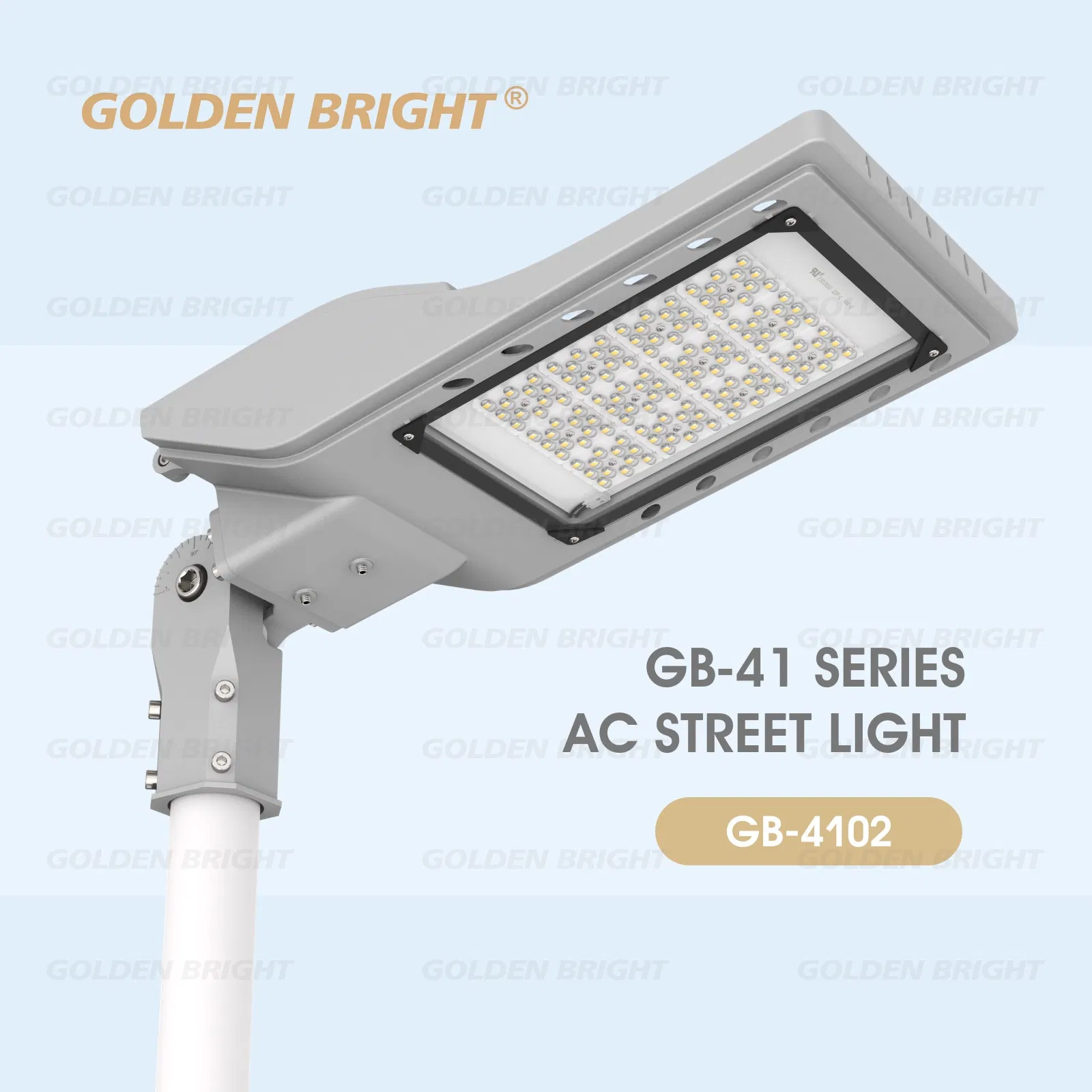

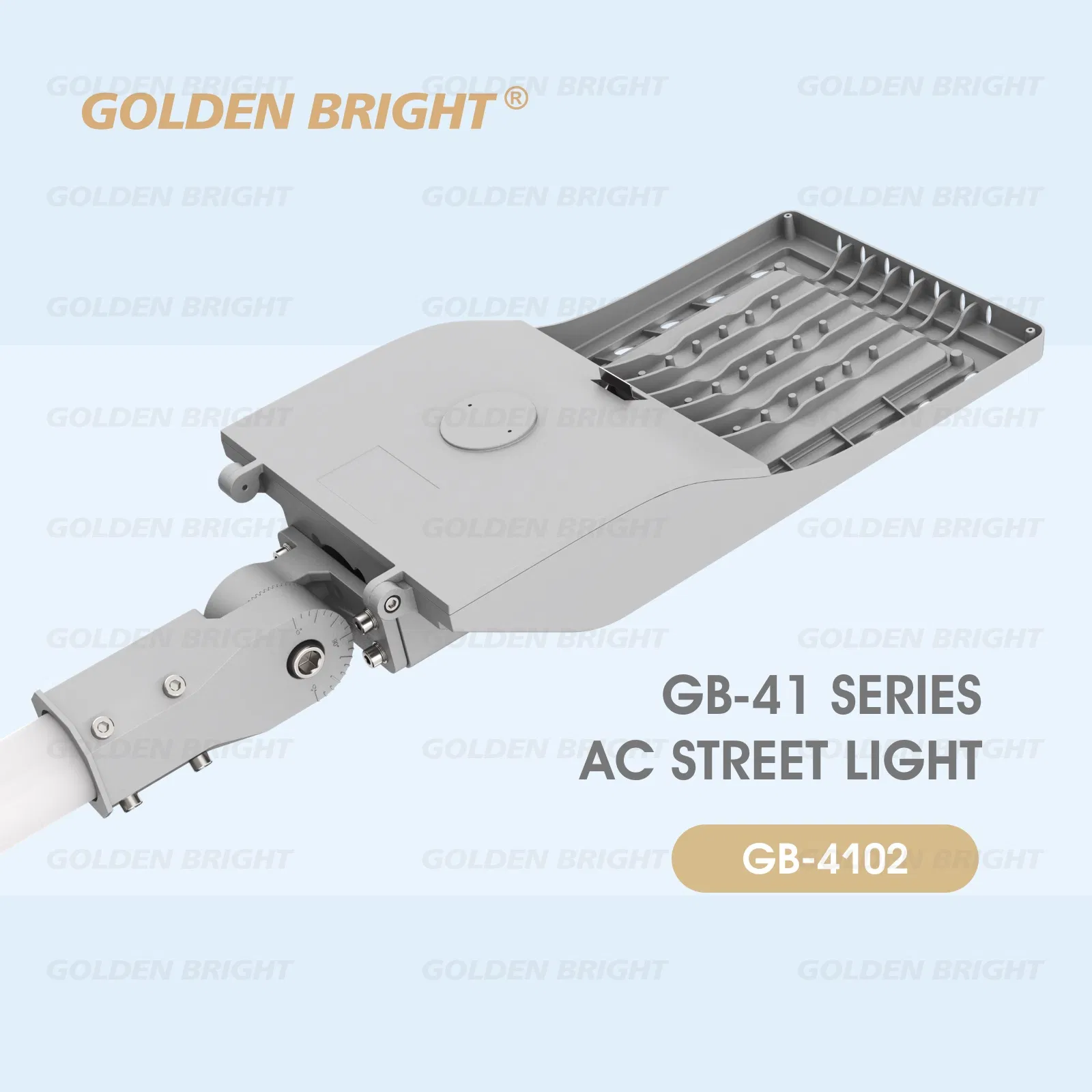

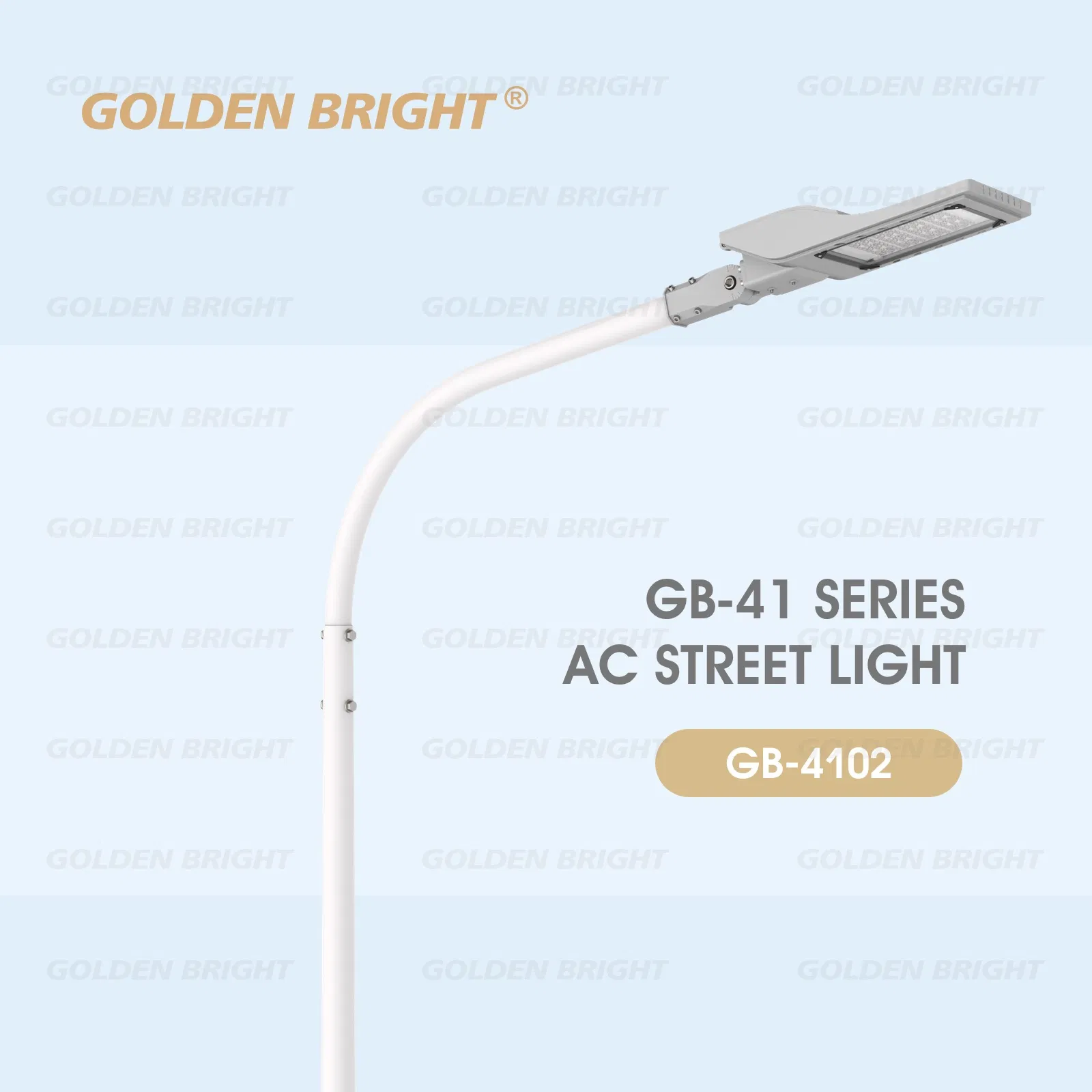

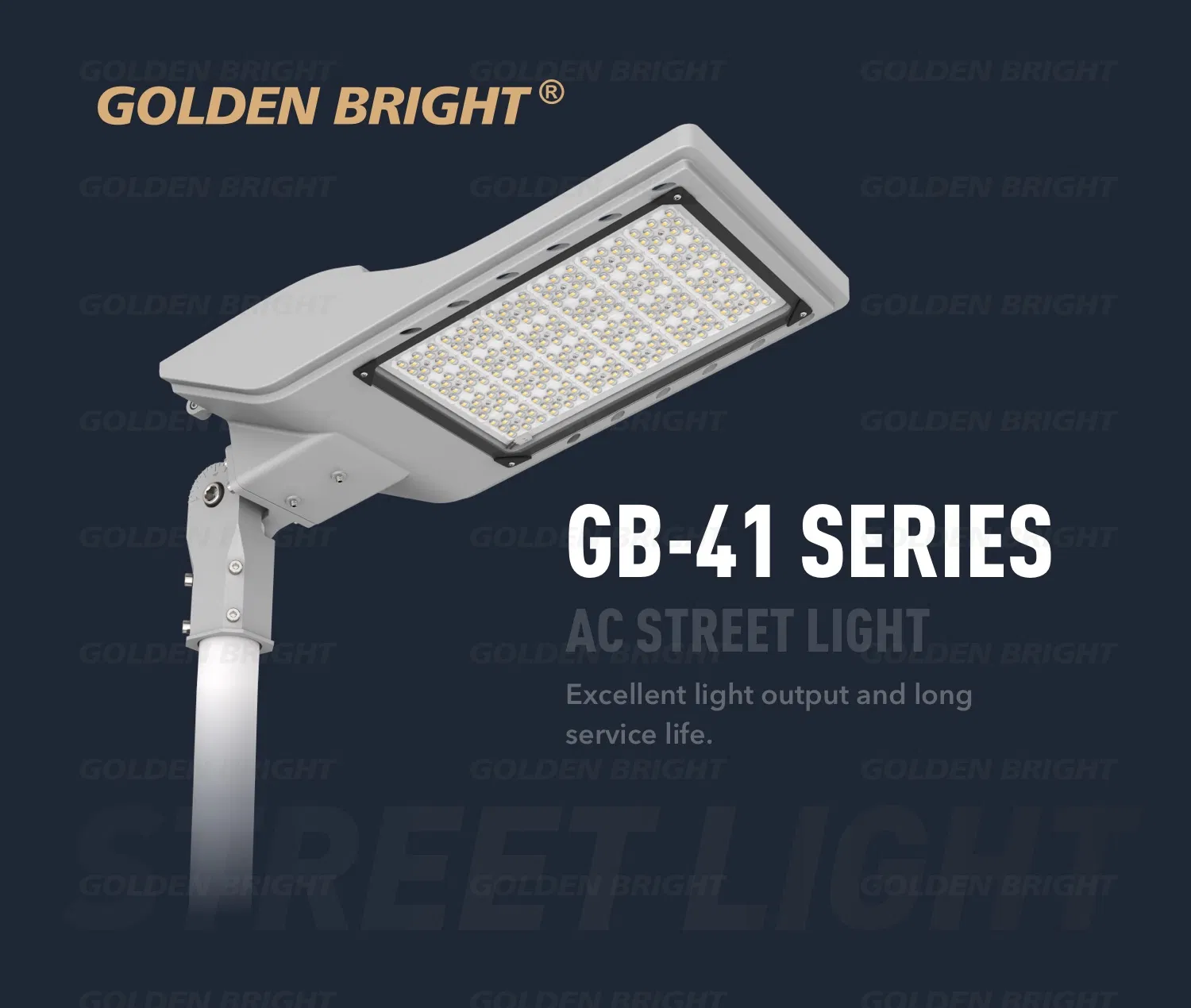

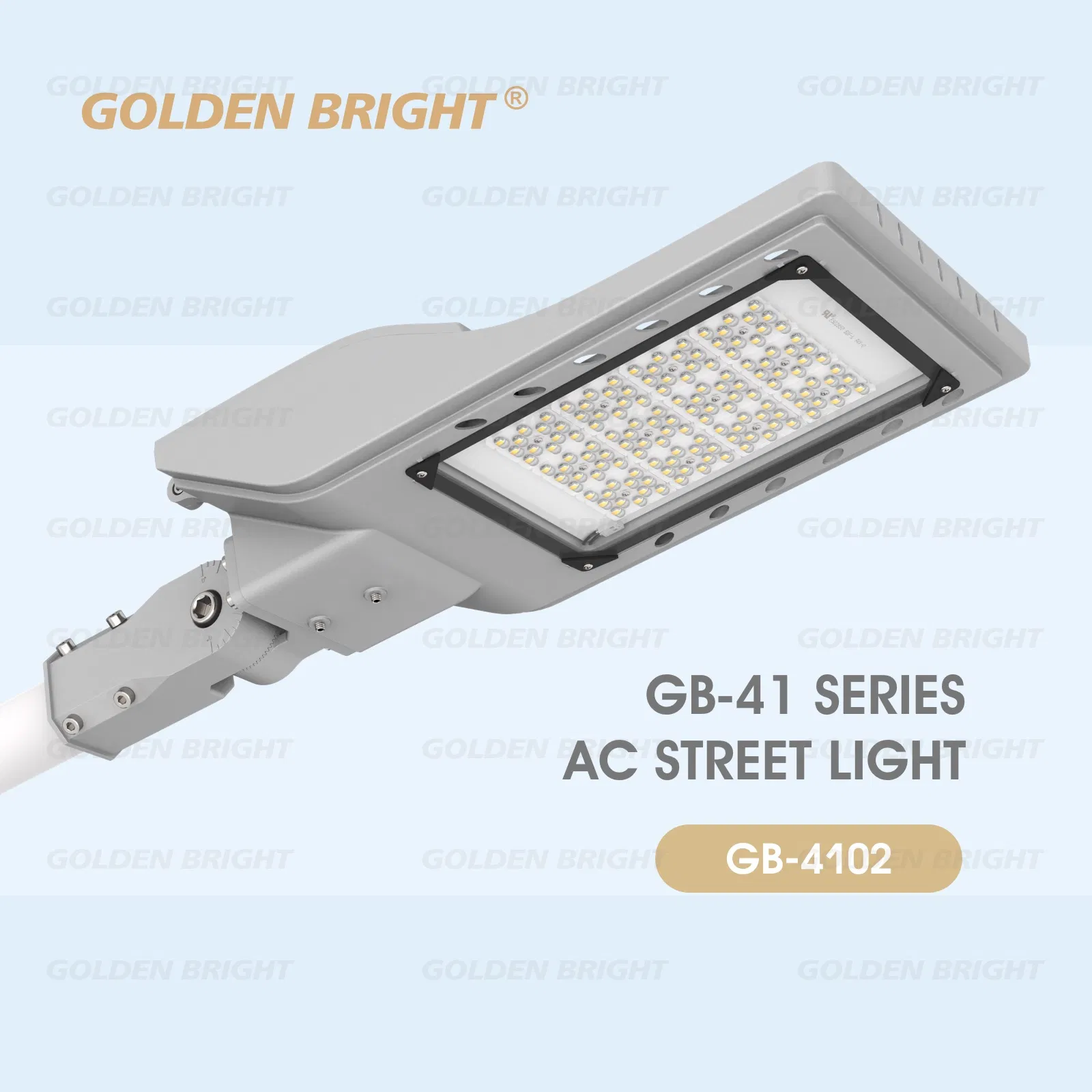

GB-41 150W AC LED Street Light Outdoor IP66 Road Lighting Manufacturer

Basic Info

Model NO. GB-41

Lamp Body Material Aluminum

Power 150W

Application Square, Highway, Garden, Parking Lot

IP Rating IP65

Certification CB, CCC, CE, CQC, RoHS

Input Voltage 100-240V

With Light Source With Light Source

LED Chips Brand Bridgelux

Design ODM/OEM

SPD 10kv 20kv

Color Customized

Warranty 3/5 Years

Transport Package Carton

Specification 0.02m³

HS Code 9405429000

Product Description

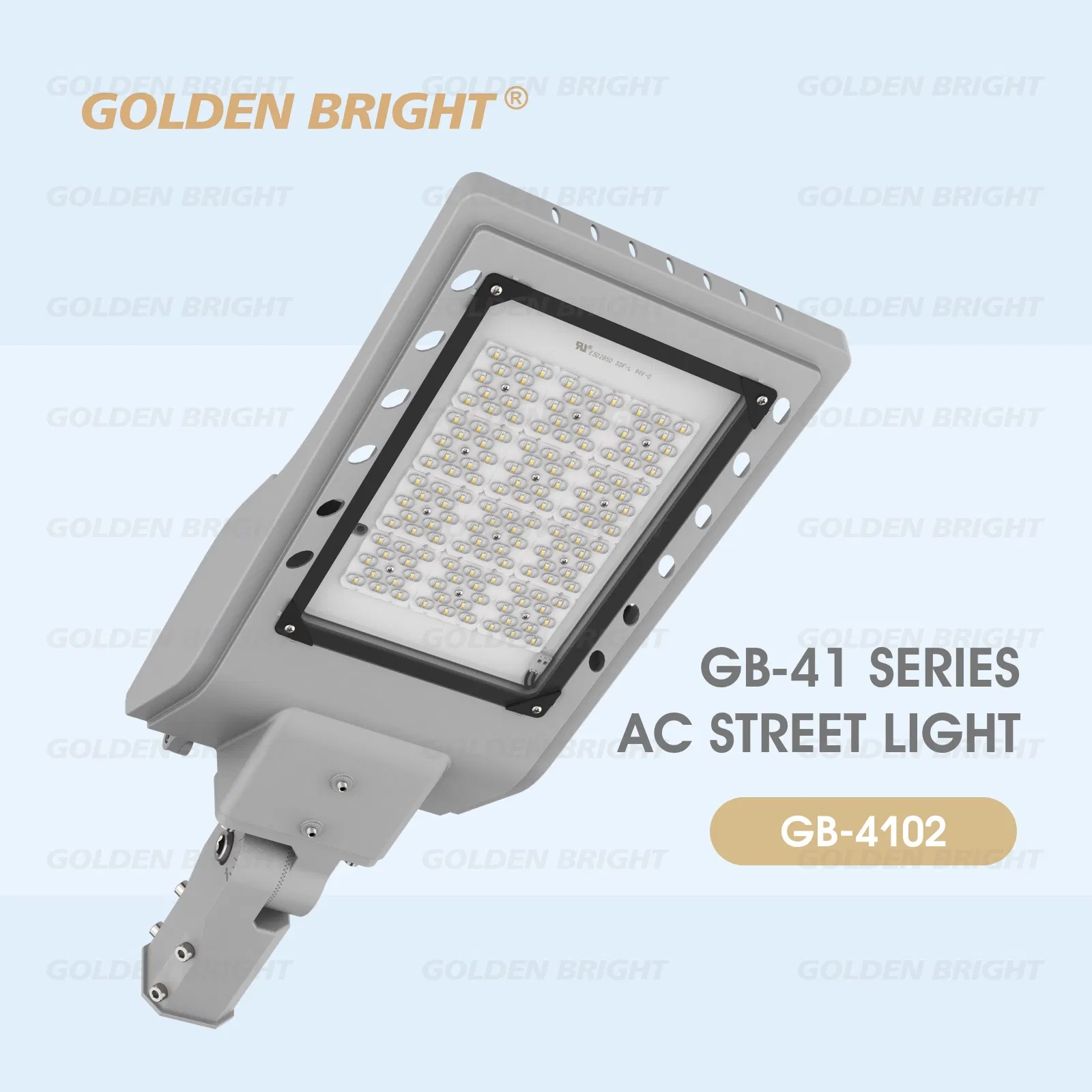

GB-41 150W AC LED Street Light Outdoor IP66 Road Lighting Manufacturer

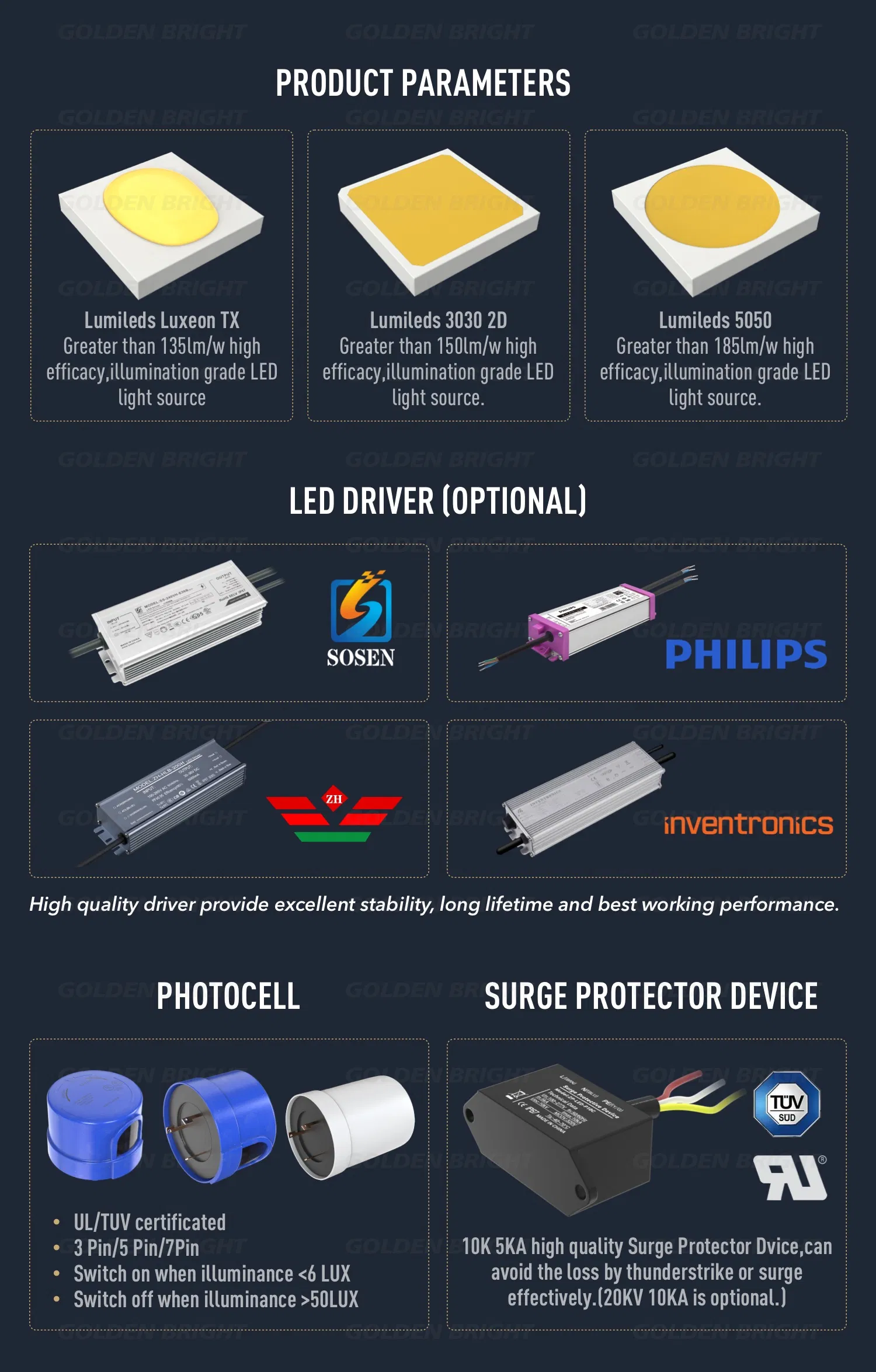

High-efficiency LEDs: From Lumileds, Bridgelux, or Cree.
High-stability drivers: From MEANWELL, MOSO, INVENTRONICS, SOSEN, and ZHIHE.
Superb luminaire efficiency: Up to 150 lm/w.
High light efficiency: With perfect light distribution.
Cost-effective: Aluminum die-casting design.
Tool-free design: For easy installation and maintenance.

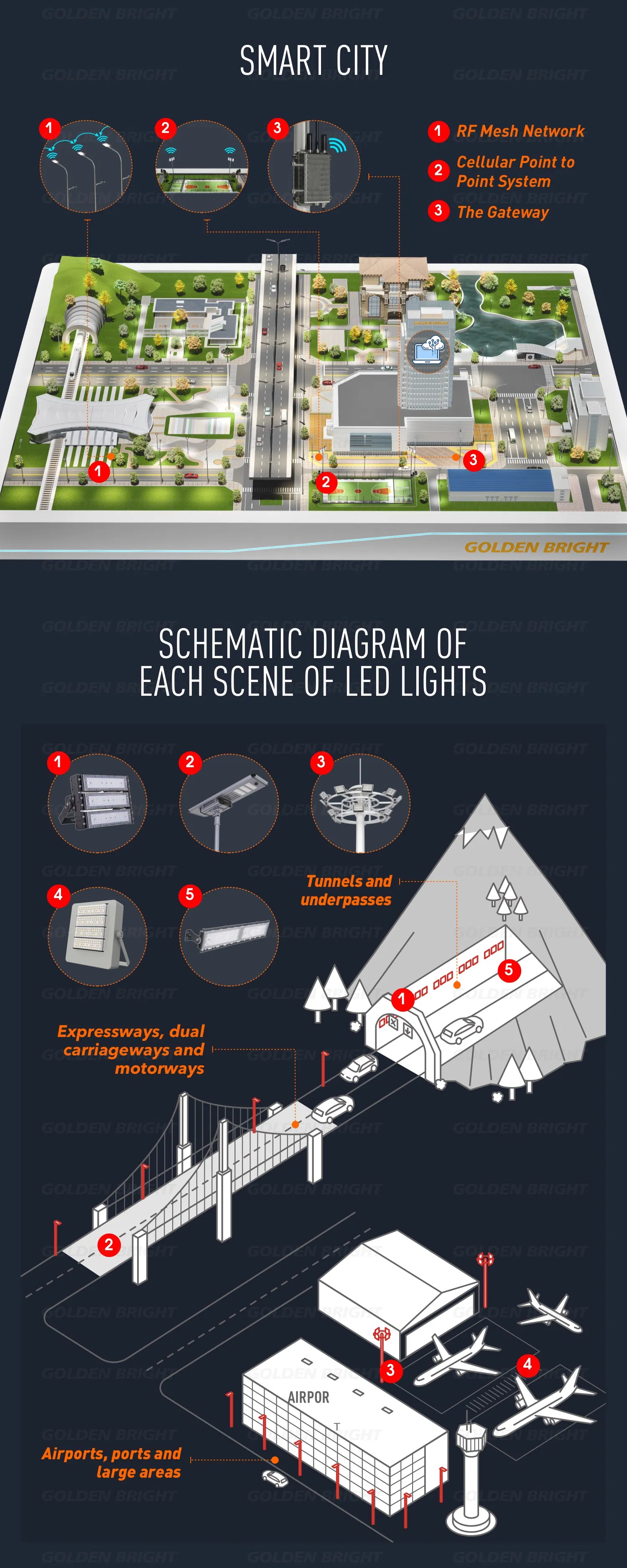

Suitable for use: In streets, highways, squares, parks, and parking lots.
3-5 year warranty: Ensuring excellent stability and longevity.
Optional features: Photocell, timer dimming, DALI/DALI 2.0, and 0/1-10V dimming.
10KV SPD: For added surge protection.

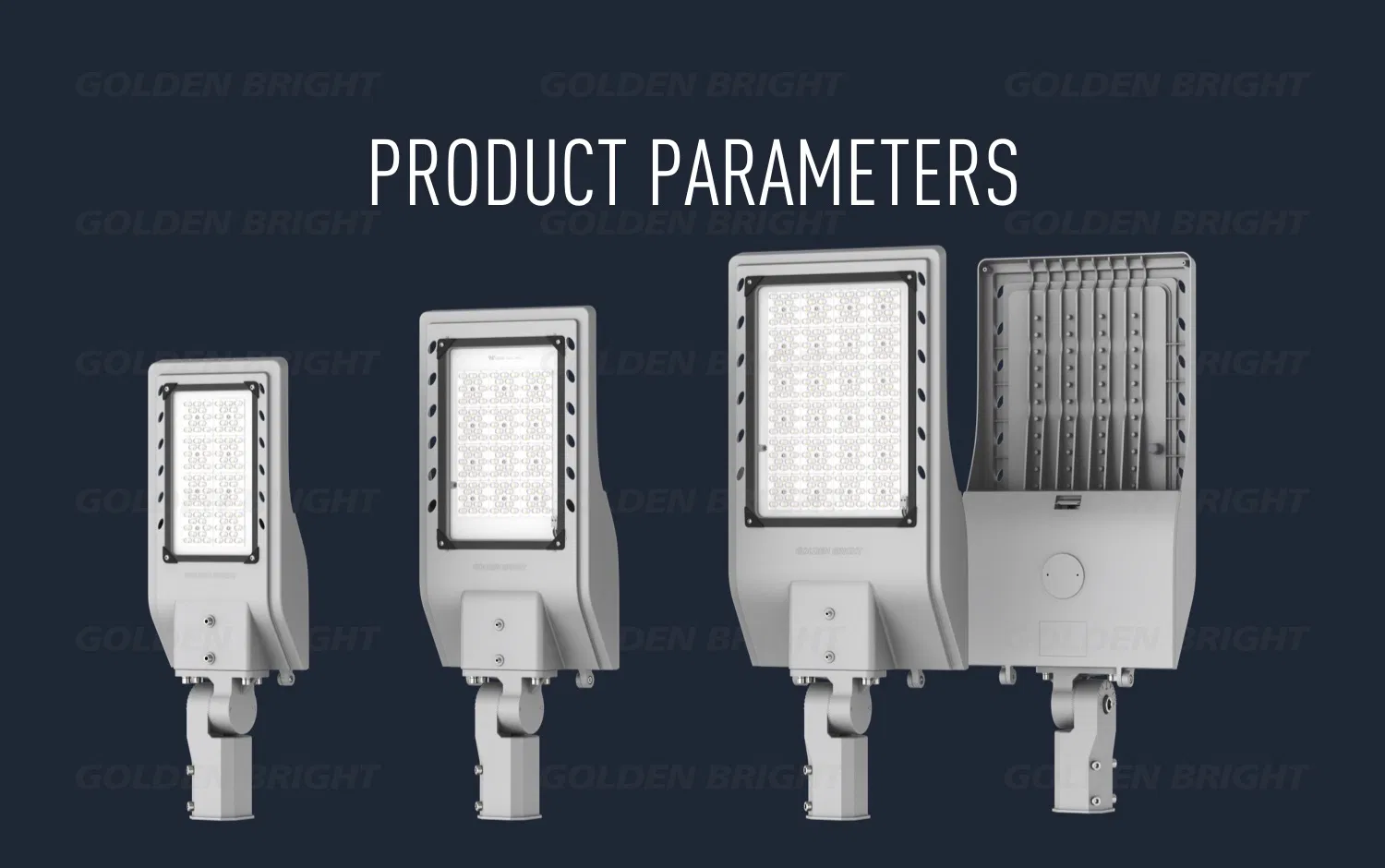

Specifications Table

Model	GB-4101			GB-4102			GB-4103
LED Light Power	50W	60W	80W	100W	120W	150W	200W	250W
Number of Leds	72	96	96	144	144	180	240	288
LED Chip		Lumileds 3030(standard), Bridgelux, Cree, and Osram are available options
Light Efficacy		110-130lm/w; 140-150lm/w(option)
CRI		≥ 70 or ≥ 80
Luminous Flux(3030)	6500lm	7800lm	10400lm	13000lm	15600lm	19500lm	26000lm	32500lm
Color Temperature		2700K, 3000K, 4000K, 5000K, 5700K, 6500K
LED Light Life		Up to 100,000hrs LM70,Ta 25℃
Driver		Sosen(standard), Mean well, MOSO, Inventronics, Philips(option)
Driver Isolation		Class I or Class II
Frequency		50 / 60Hz
Power Factor		≥0.95 cos
Control Dimming		DALI / 1-10V / Timing / PWM
Body Parts Material		ADC12 (standard) / LM6 (option)
Optic		PC (standard)/ PMMA (option)
Optional Configuration		10KV/20KV SPD/ Open on-off switch/ Adjustable mounted arm
Operation Voltage		AC 90-305V or AC 220-240V
Operating Temperature		-35℃~50℃ / 10% ~ 95% (humidity)
Color Stability		3 or 5 MacAdam steps

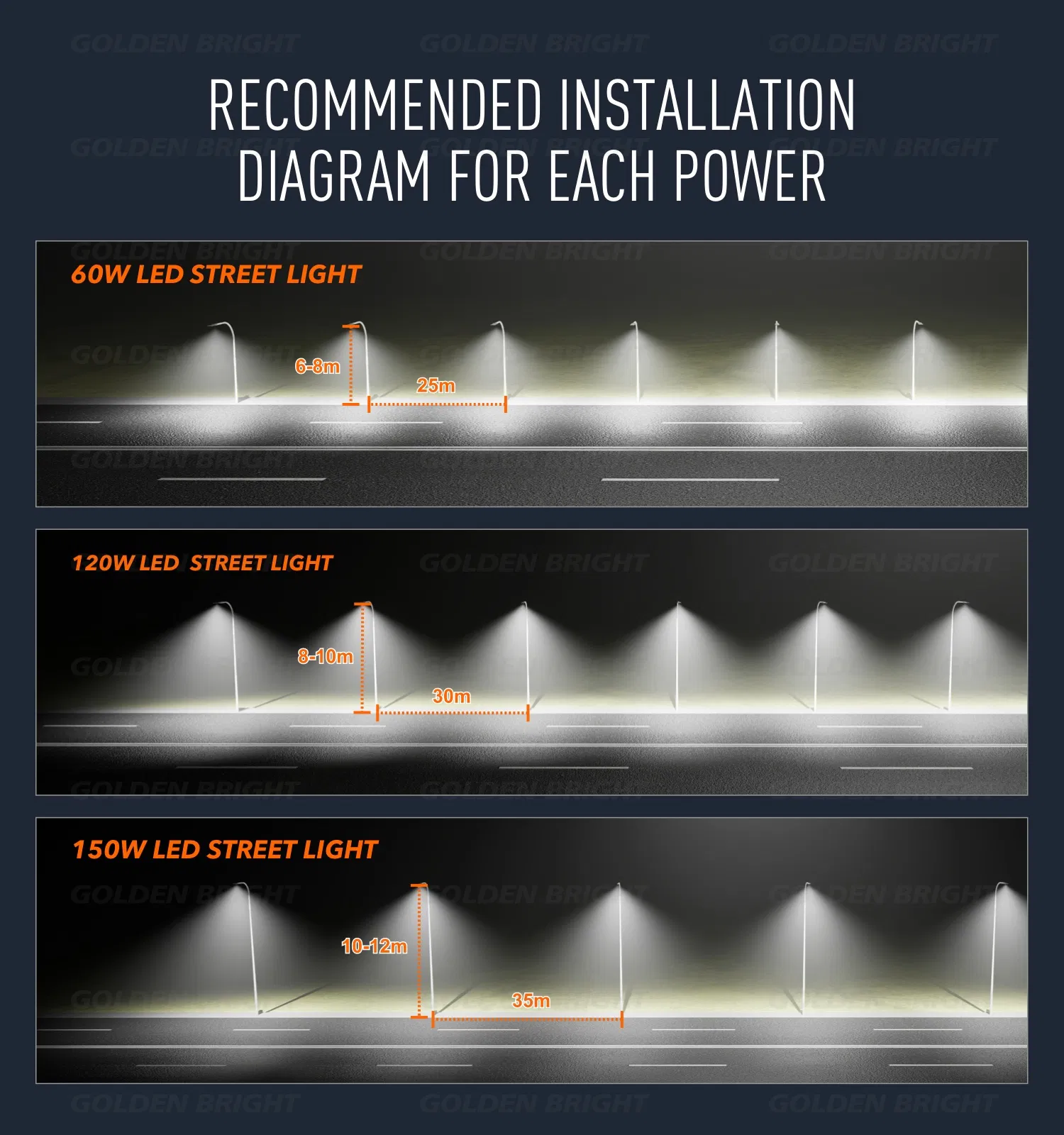

Mounting Height	4m	5-6m	7-8m	8-10m	10m	10-12m	10-12m	12-14m
Light Size	44122297mm			525277109mm			612325120mm
Package Size	465245130mm 0.0148m³			550300145mm 0.0239m³			635360145mm 0.033m³
Weight	3.3kg	3.3kg	3.45kg	5.7kg	5.85kg	5.85kg	7.9kg	8.1kg
Warranty	3 years(standard)/ 5 years(option)

Product Gallery

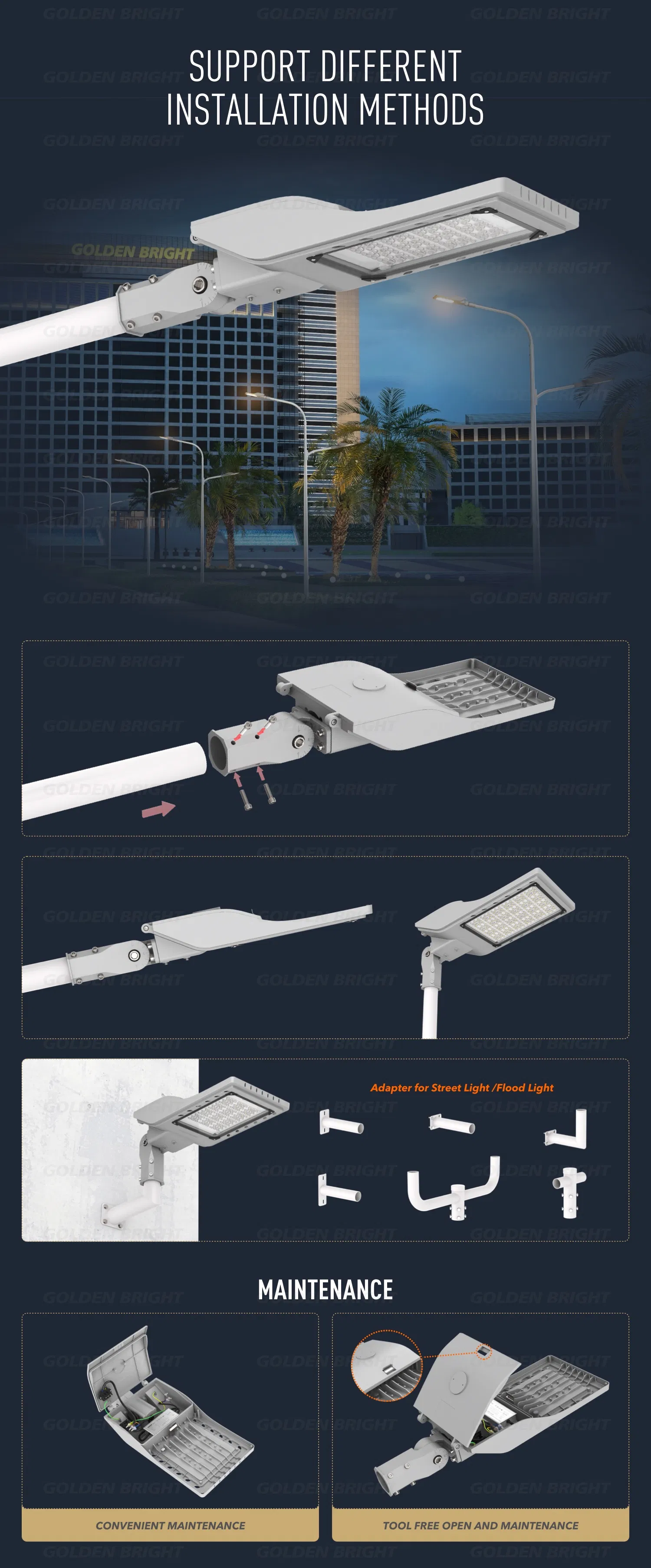

Product Dimensions & Installation

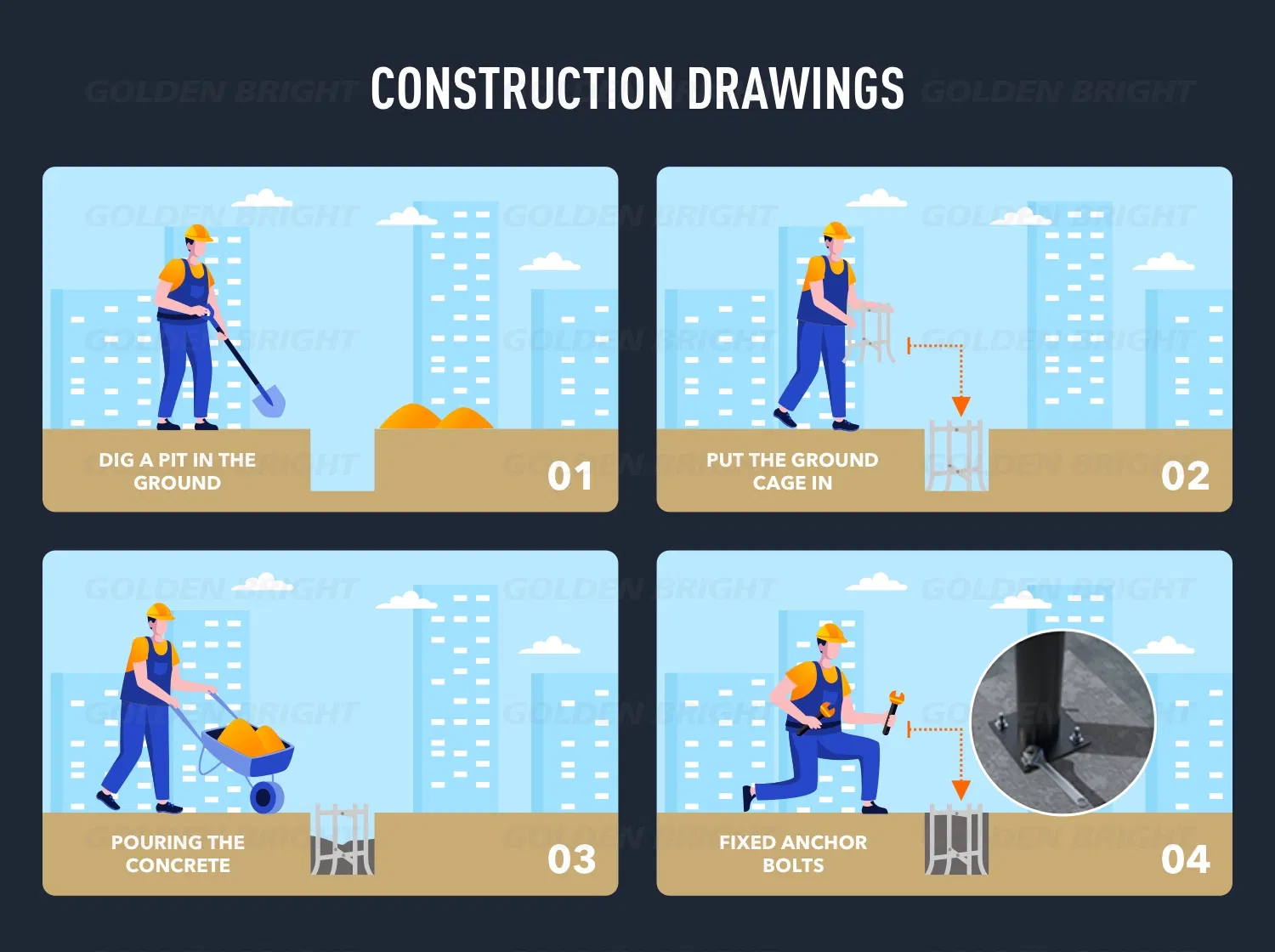

GB-41 Maintenance and Installation Guide

Frequently Asked Questions (FAQ)

What are the main applications for the GB-41 LED street light?

The GB-41 is highly versatile and designed for outdoor environments, making it ideal for squares, highways, gardens, parks, and parking lots.

What options are available for LED chips and drivers?

We offer high-efficiency LEDs from Lumileds (standard), Bridgelux, Cree, or Osram. The high-stability drivers can be selected from Sosen (standard), Mean Well, MOSO, Inventronics, or Philips.

What is the standard warranty period for this product?

This light comes with a standard 3-year warranty, with an optional upgrade to a 5-year warranty configuration for long-term project peace of mind.

Does the light feature tool-free maintenance?

Yes, it features a tool-free design that allows for easy, manual opening during installation and maintenance, significantly reducing labor and servicing costs.

What intelligent control systems can be configured with the GB-41?

It can be equipped with optional configurations such as photocell sensors, timer dimming, DALI/DALI 2.0 dimming, and 0/1-10V dimming.

How does the street light protect against surge currents?

The GB-41 is equipped with a high-performance 10KV Surge Protection Device (SPD) as standard, with the option to upgrade to a 20KV SPD for more demanding electrical environments.
