with Source 120 W LED Electrical Street Light Garden Lights

Basic Info.

Model NO. ZN-LEDLD-01

Lamp Body Material Aluminum

Power 60-100W

Application Square, Highway, Garden, Parking Lot

IP Rating IP65

Certification CCC, CE, CQC

Input Voltage 100-240V

With Light Source With Light Source

LED Chips Brand CREE

Street Lamp Grid Lamp

Transport Package Carton + Foam

Specification 540*290*100

Origin China

Detailed parameter table

Product model	ZN-LD-04-LED-50W-200w	Power brand	Mingwei, Maoshuo, Songsheng, Jiansen, Infinite
Input Voltage	100-240V	Whole lighting effect	110-150LM
LED chip brand	Corey, Osram, Puri	Intelligent system	PLC/Mobile phone
Warranty	2-5 years	Power efficiency	>0.97
Dimmable	1-10V / PWM / You can choose	Surge protection	10KV
Operating voltage	AC100V 120V 230V 277V 347V 480V	Specifications	50W-200W
Product material	Die-cast aluminum	Shipping packaging	Plastic bags, cardboard and foam in cartons
Certify	CCC, CE	Beam angle	T2/T3/T4
Color temperature	3000K, 4000K, 5000K, 6500K	Color development index	Color development index >80
Level of protection	IP66	Shell color	Black, gray
Work hours	>50,000 Hour	Operating temperature	-40ºC~+70ºC

Product and packaging dimensions

Product model	ZN-LD-04-LED60W	ZN-LD-04-LED150W	ZN-LD-04-LED200W
Power	60W	90W-150W	120W-200W
Product size	540290100	640290100	740290100
Number of LEDs	60Self	150Self	200Self
Net weight	2.7kg	3.3kg	3.9kg
Gross weight	3.2kg	4.2kg	4.8kg
Package size	580320100	670320100	760320100

Product description

LED street lamp, municipal street lamp, solar street lamp, smart street lamp, municipal engineering street lamp, 60W/80W90W/100W/120W/150W/160W180W/200W

with Source 120 W LED Electrical Street Light Garden Lights

Features and advantages

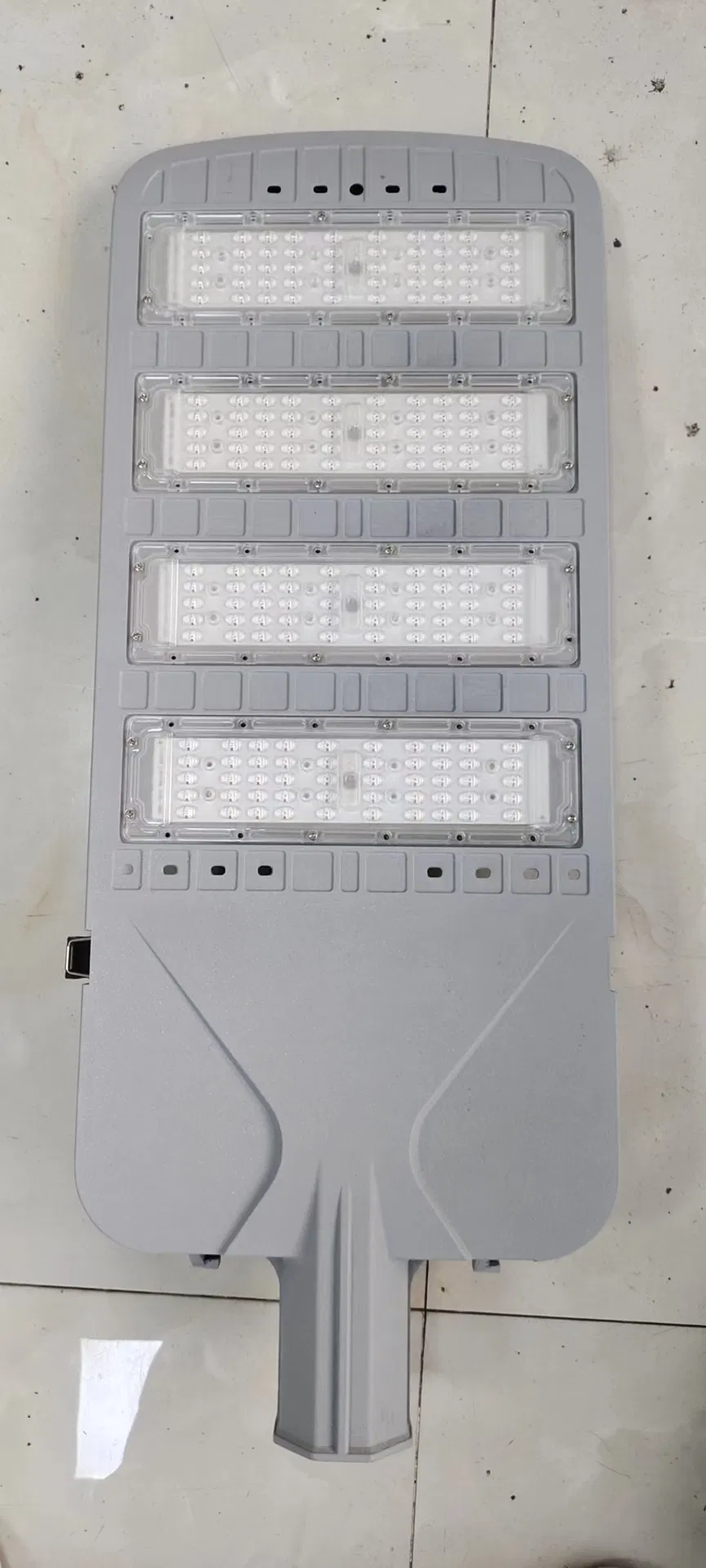

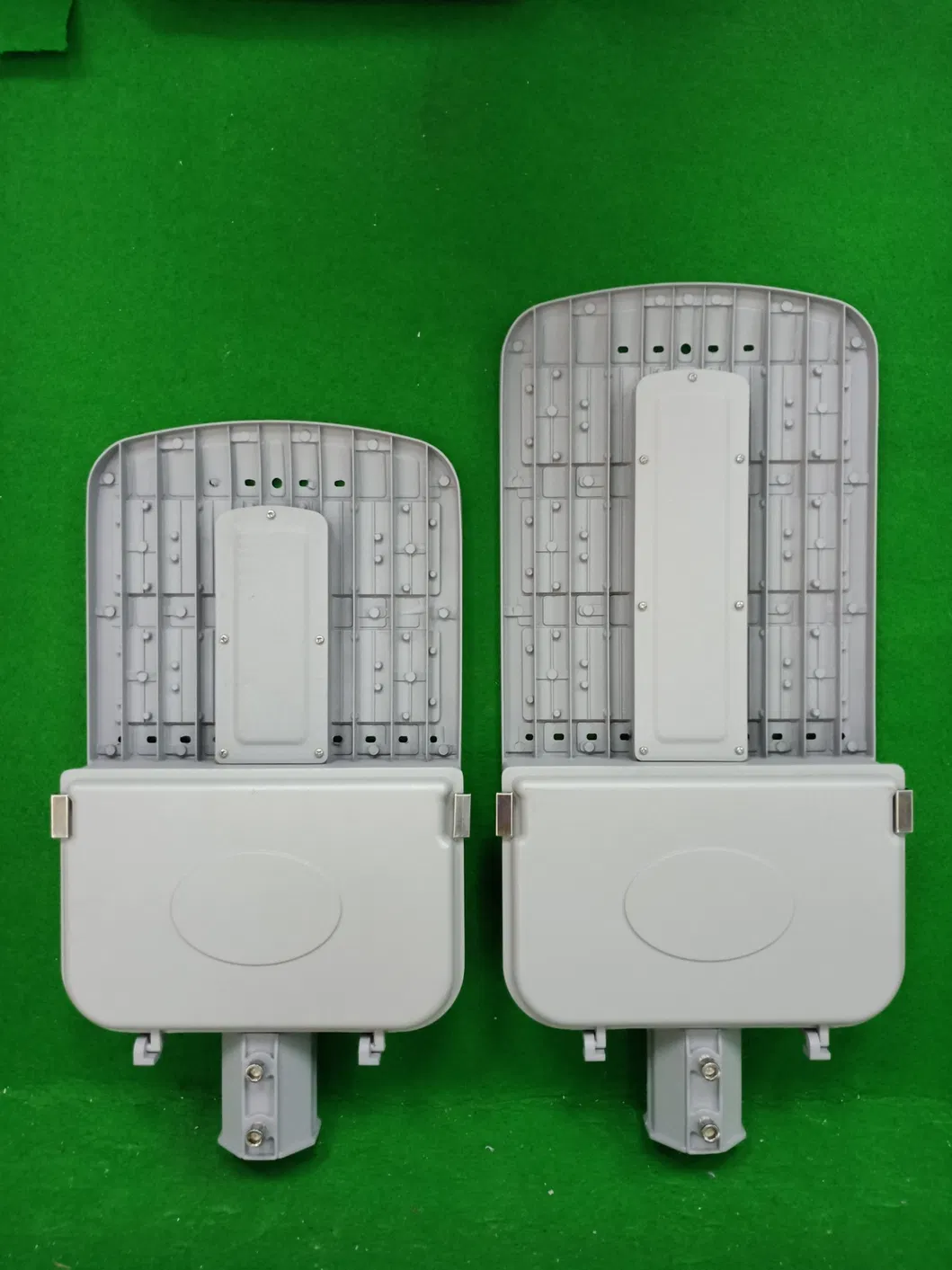

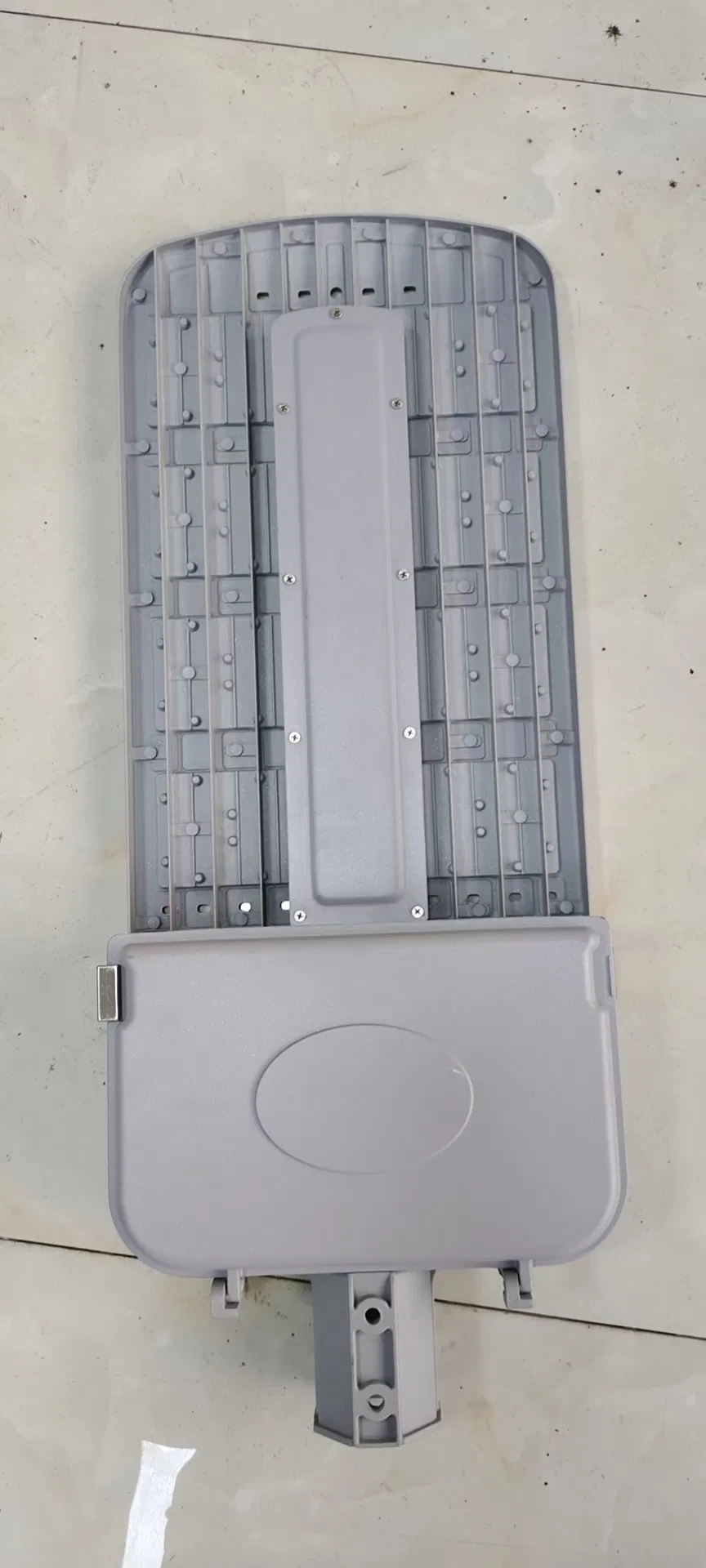

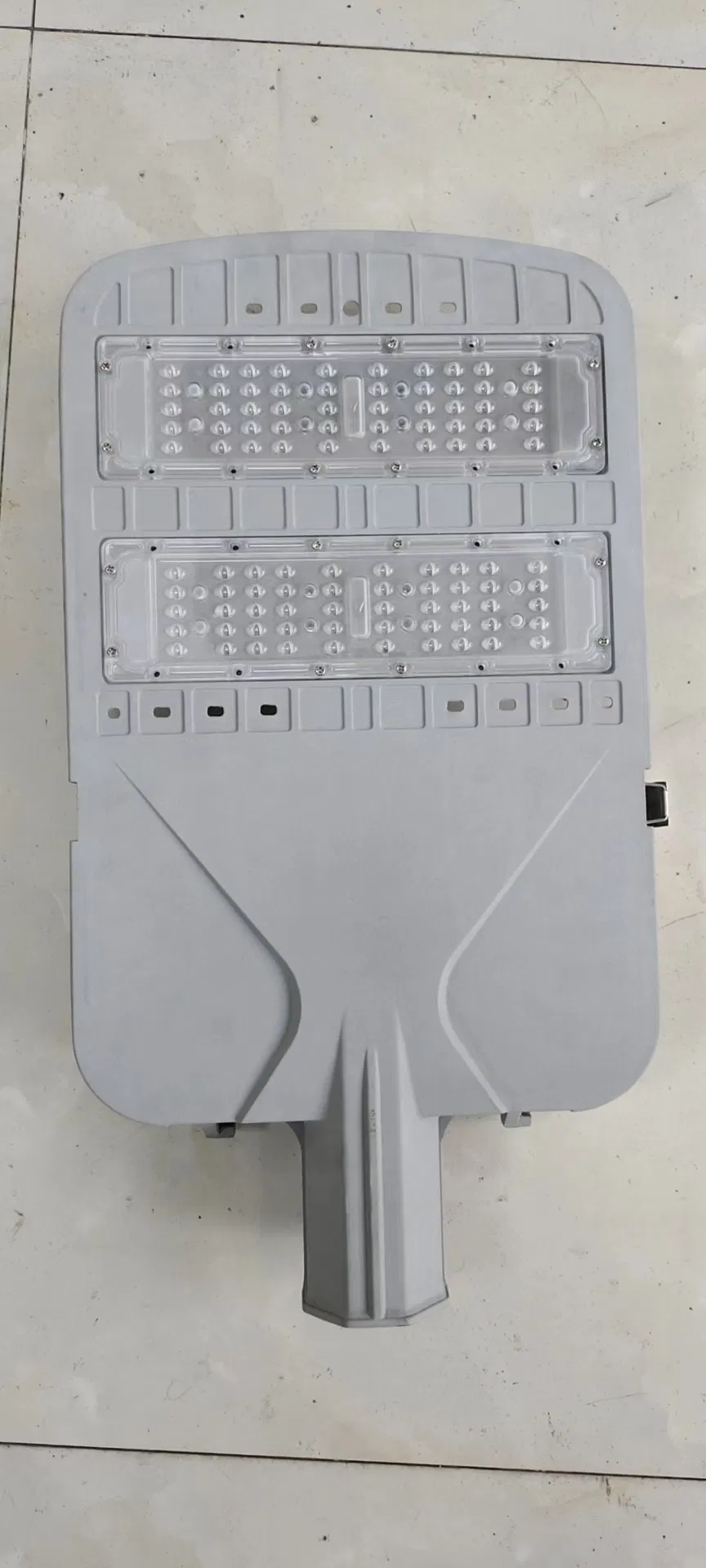

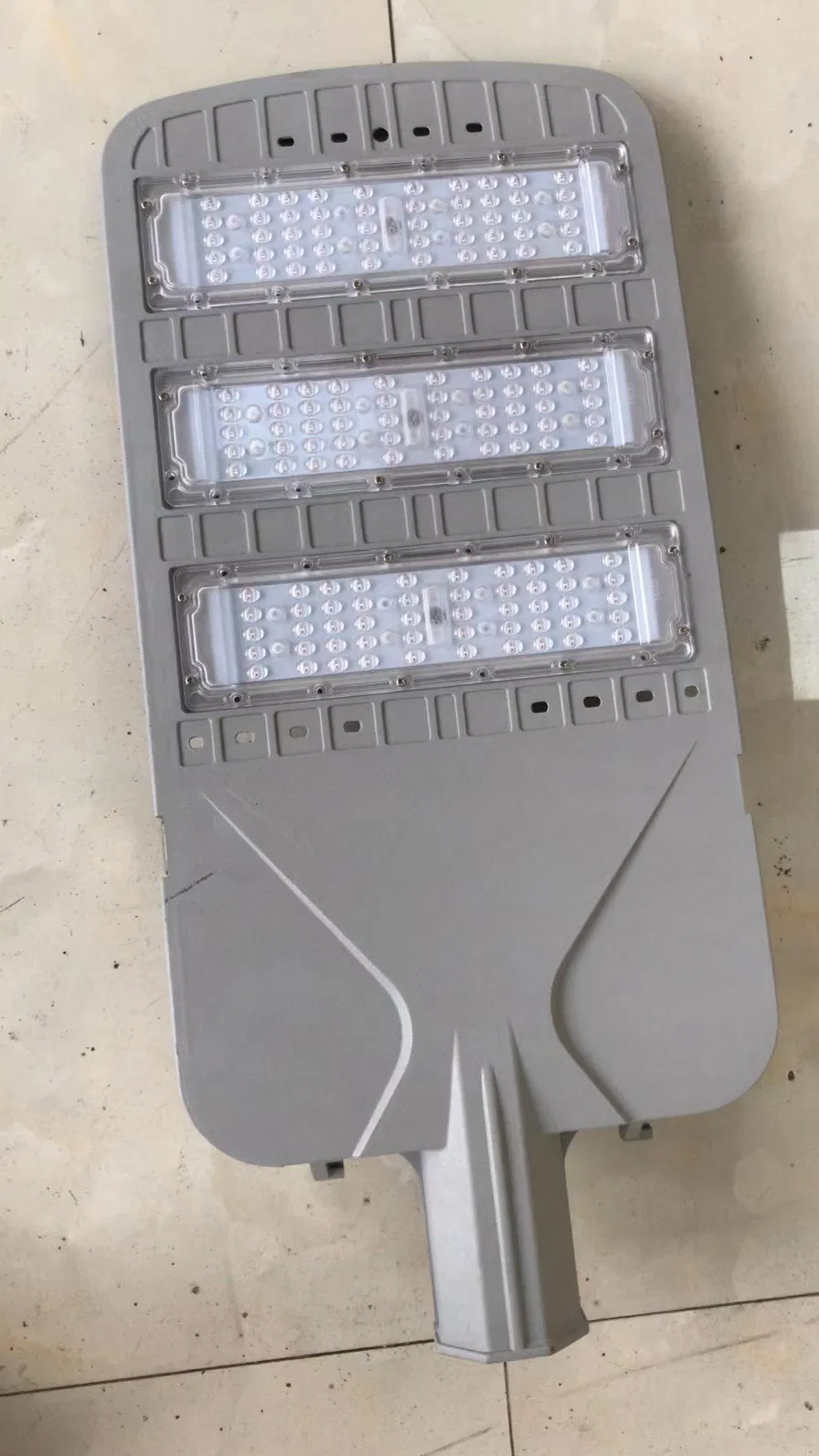

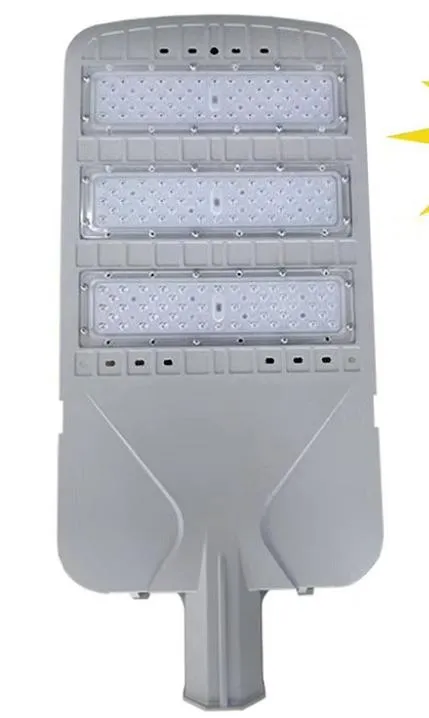

Adjustable angle design to accommodate different lamp poles. The lamp body is die-cast aluminum, which can dissipate heat efficiently.

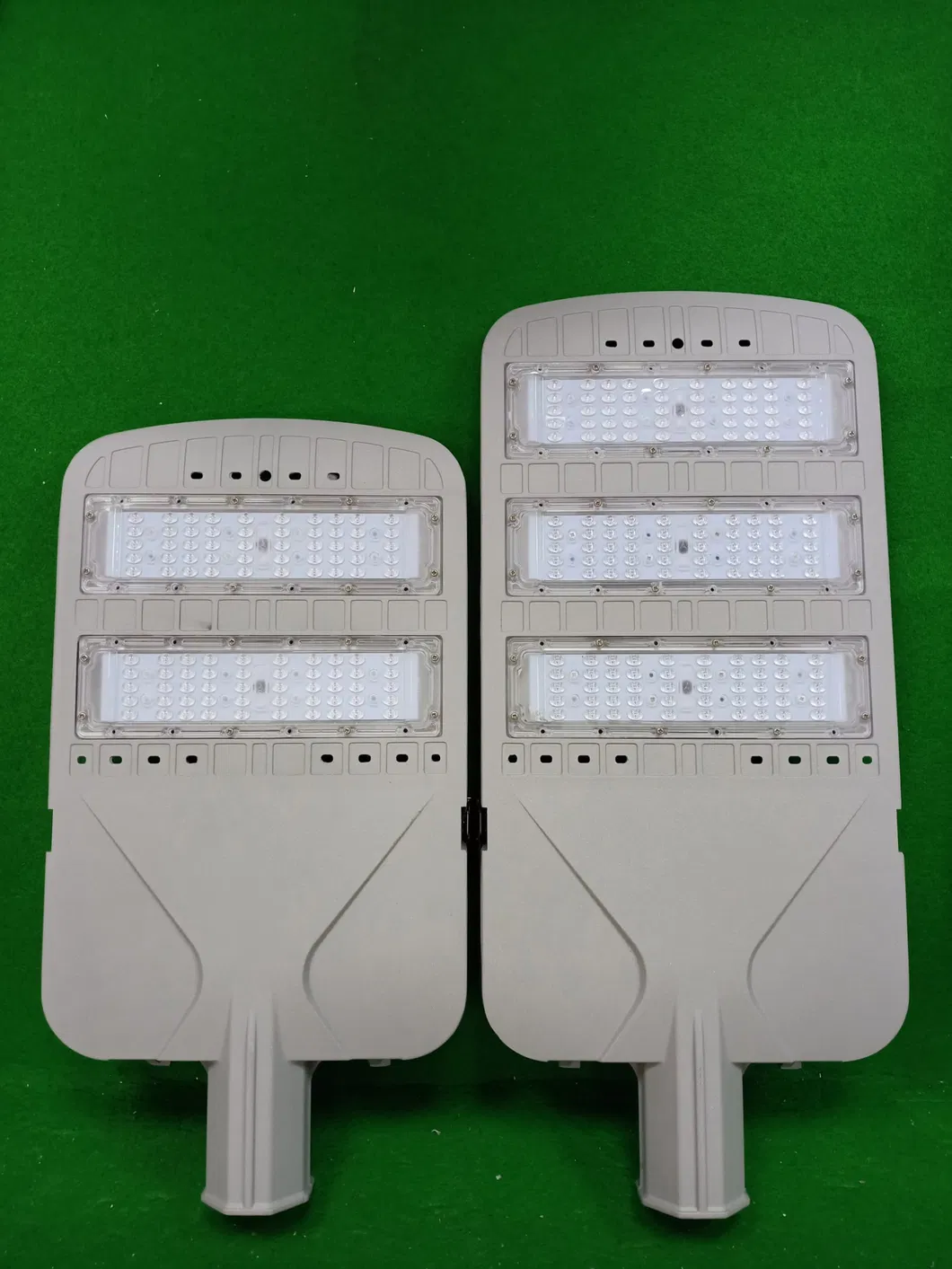

There are Four models to choose from, with a power of 60-200W.
High brightness 3030 SMD, brightness 150 LM/Watt, with Meanwell drive, we promise to provide a 5-year warranty.
IP66, CE, RoHs certification, 50,000 hours service life, 5-year warranty.
Switch automatically at dawn and dusk.
Lora intelligent system, single group or area control.

Scope of application

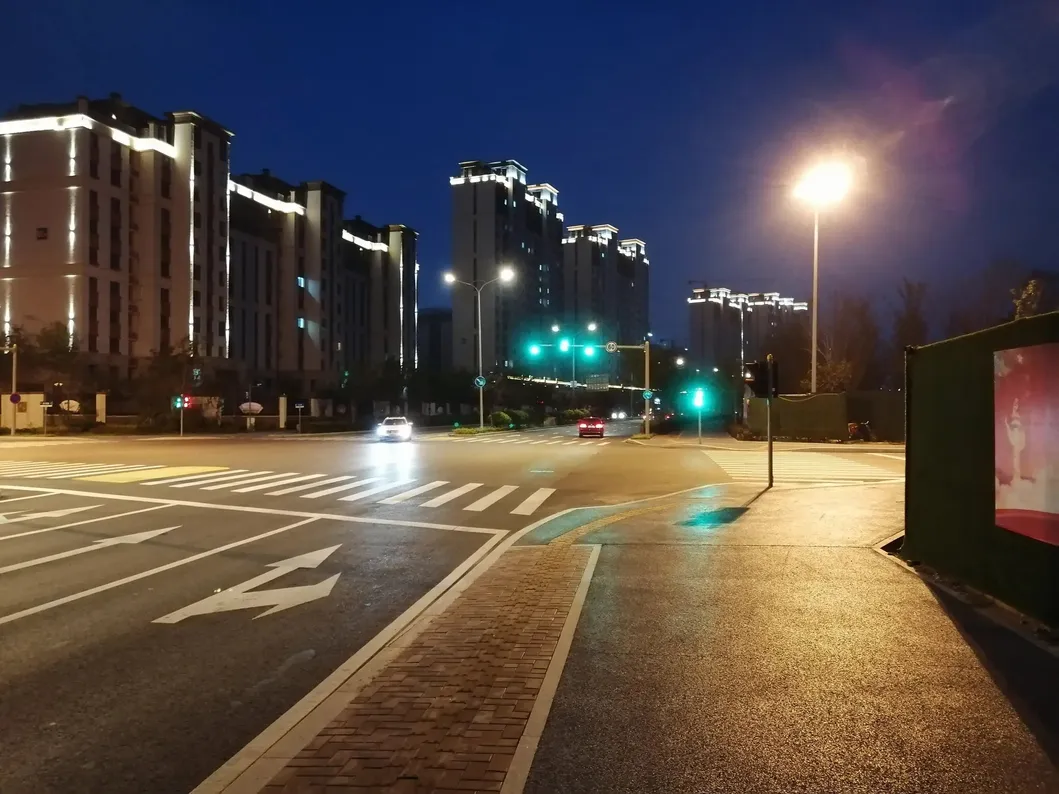

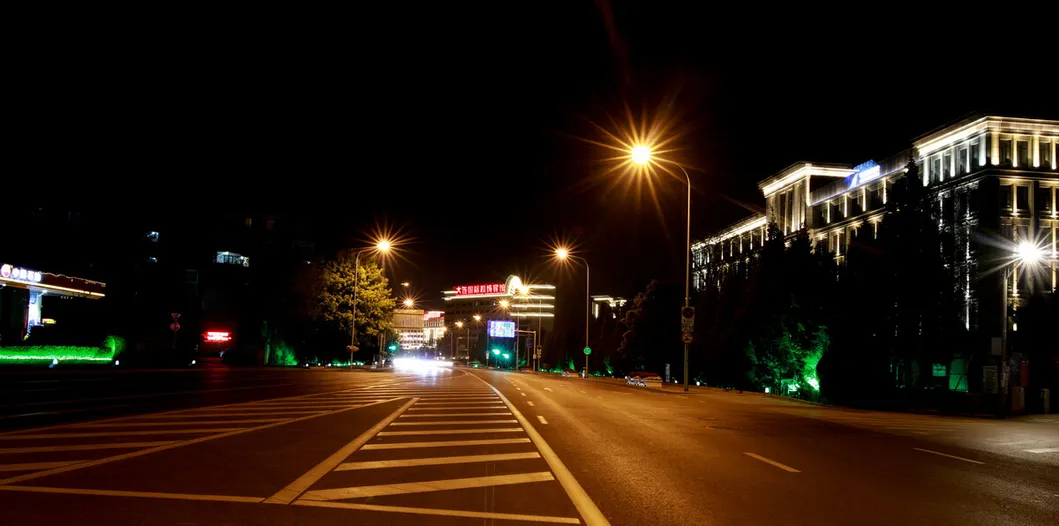

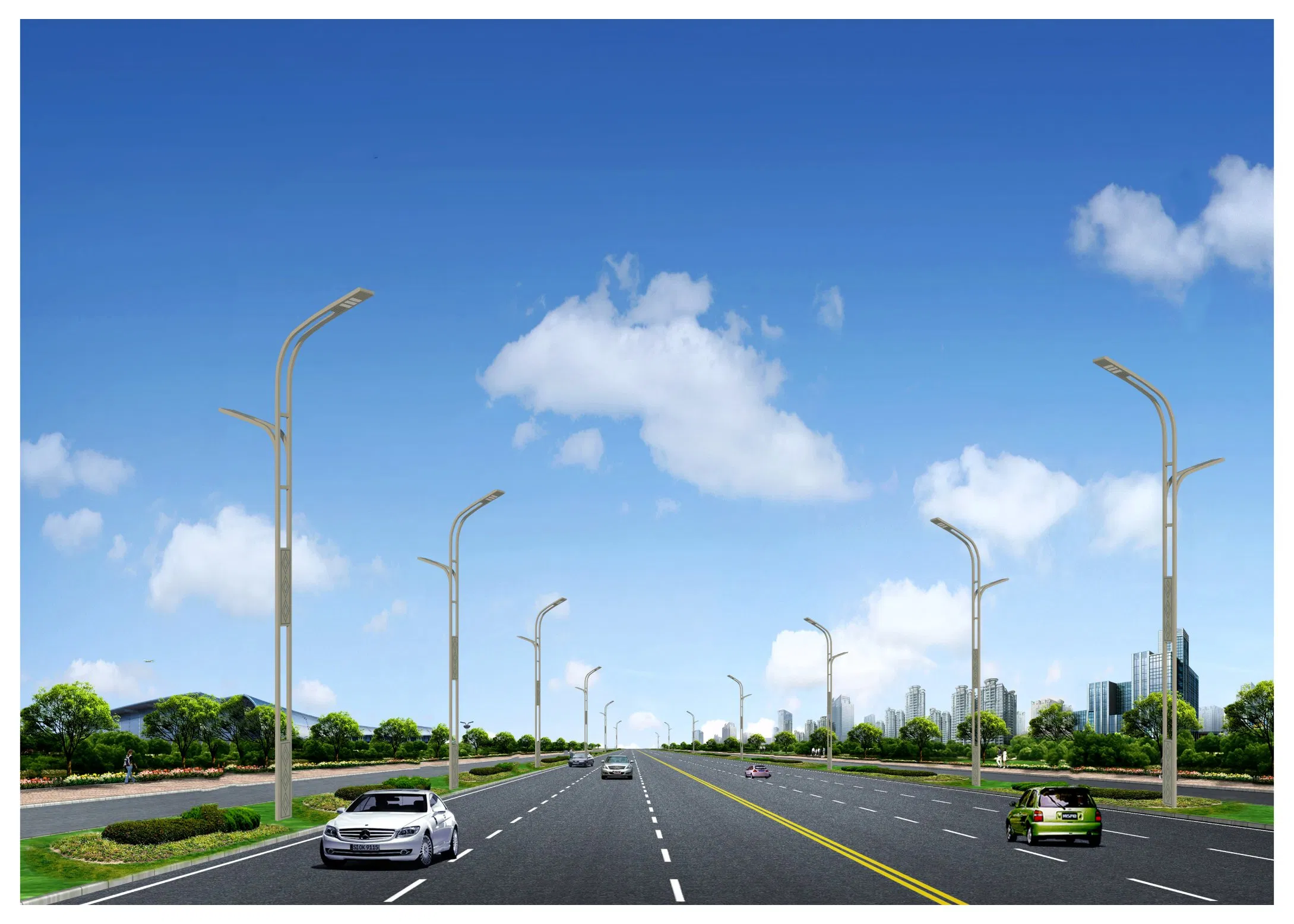

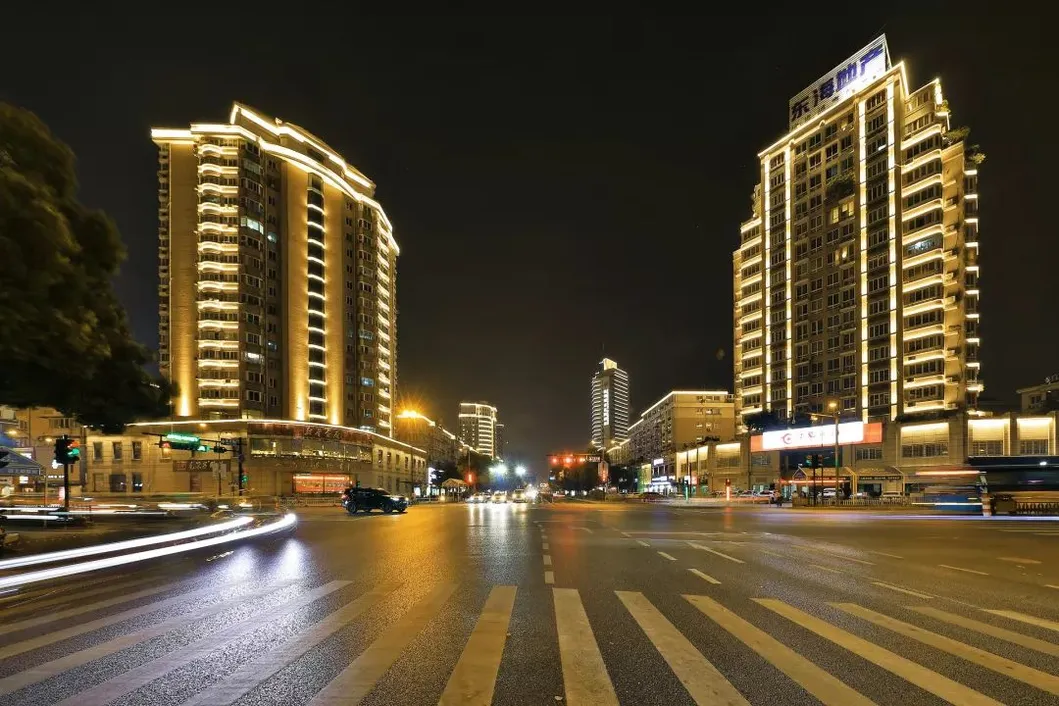

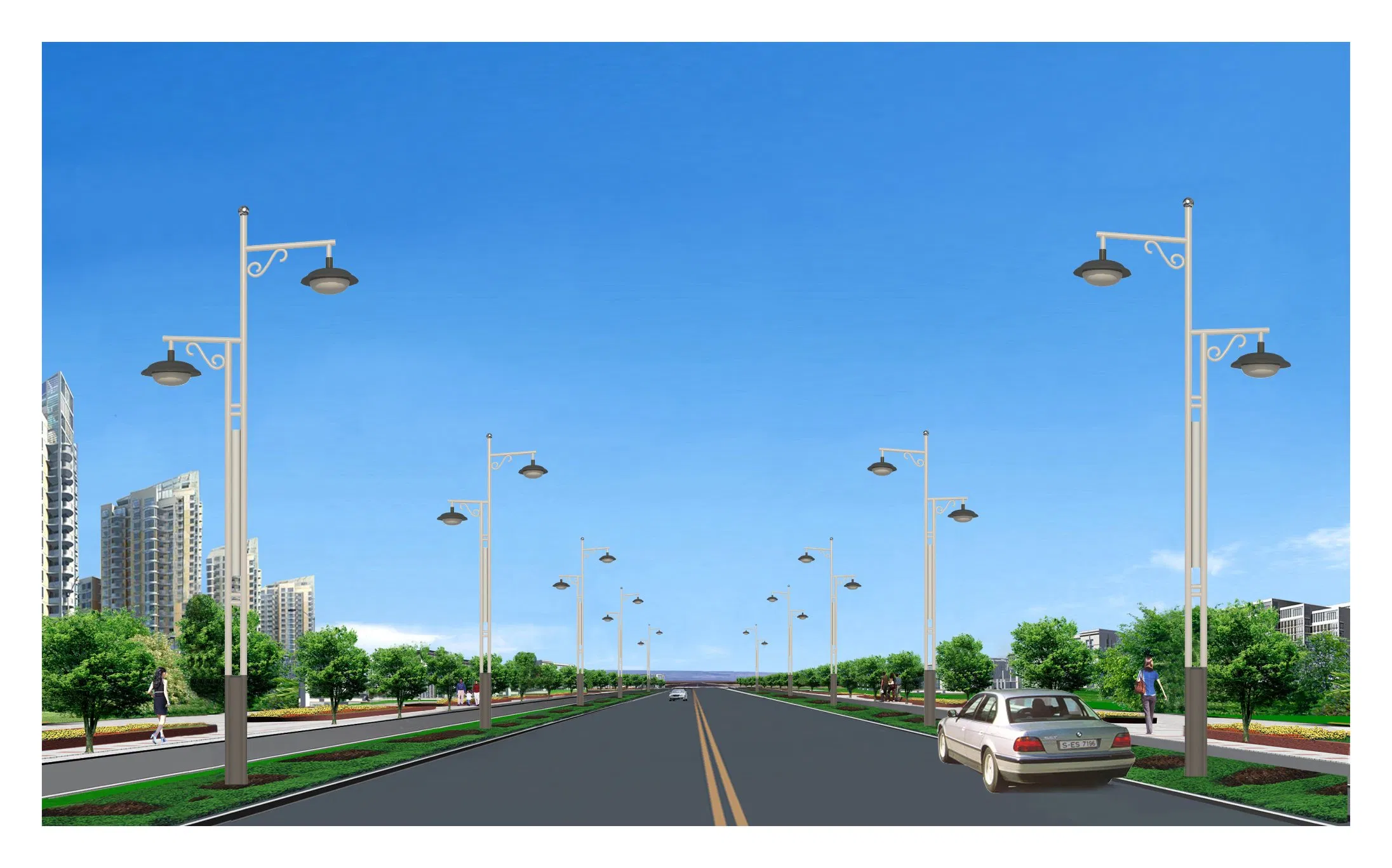

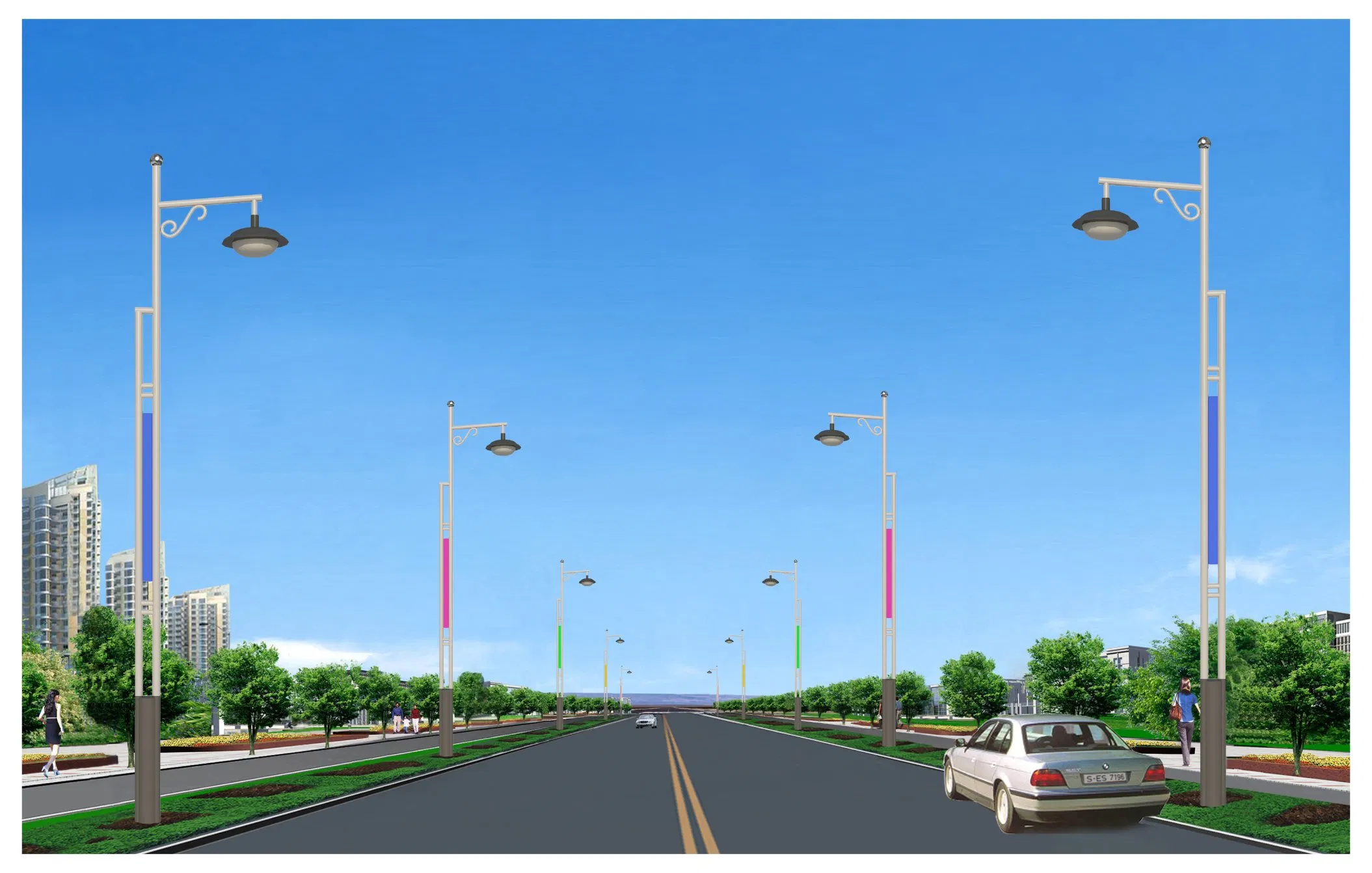

Urban expressways, main roads, welcome roads, main roads leading to government agencies and large public buildings, urban roads or commercial center roads

Frequently Asked Questions (FAQ)

What are the materials and characteristics of the lamp body?

The lamp body is constructed from high-quality die-cast aluminum, which allows it to dissipate heat efficiently. It features an adjustable angle design to accommodate various types of lamp poles.

What certifications do these street lamps hold?

These LED street lights are certified with CCC, CE, CQC, and RoHS standards, ensuring they meet rigorous international safety and quality requirements.

What are the available power options and specifications?

The series ranges from 50W to 200W models. Specifically, we support three primary configuration lines: 60W (540*290*100mm), 90W-150W (640*290*100mm), and 120W-200W (740*290*100mm).

What is the waterproof level and operating temperature range?

These lamps have an IP66 rating for high-level protection against water and dust ingress. They are designed to operate reliably in harsh outdoor conditions ranging from -40ºC to +70ºC.

Does this street light support smart controls?

Yes, it supports PLC/Mobile control systems, automatic dawn and dusk switching, and can be integrated with the Lora intelligent system for single group or area control.

What is the expected warranty and lifetime?

The lamps are built with high-quality components ensuring a work life of over 50,000 hours. A warranty period of 2 to 5 years is offered depending on the configuration and driver chosen.
