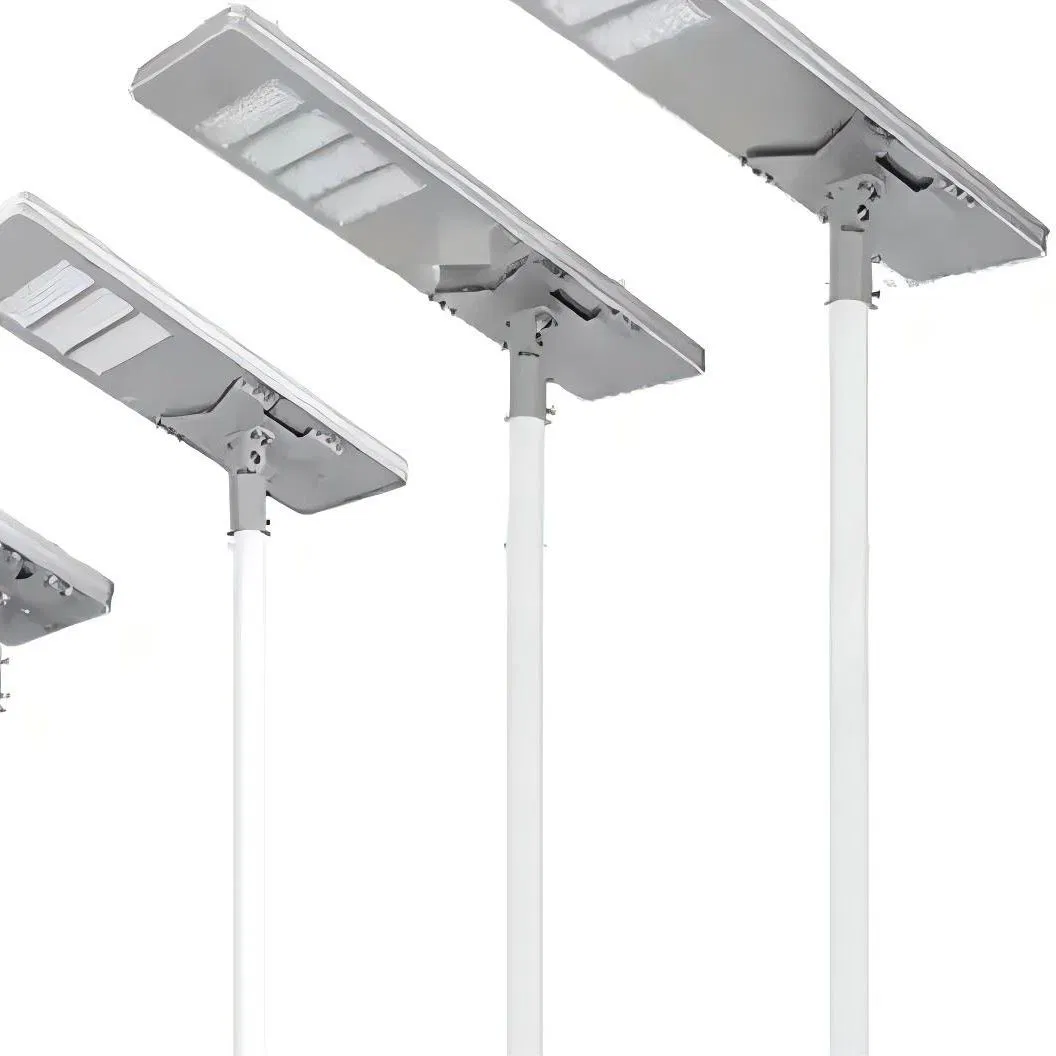

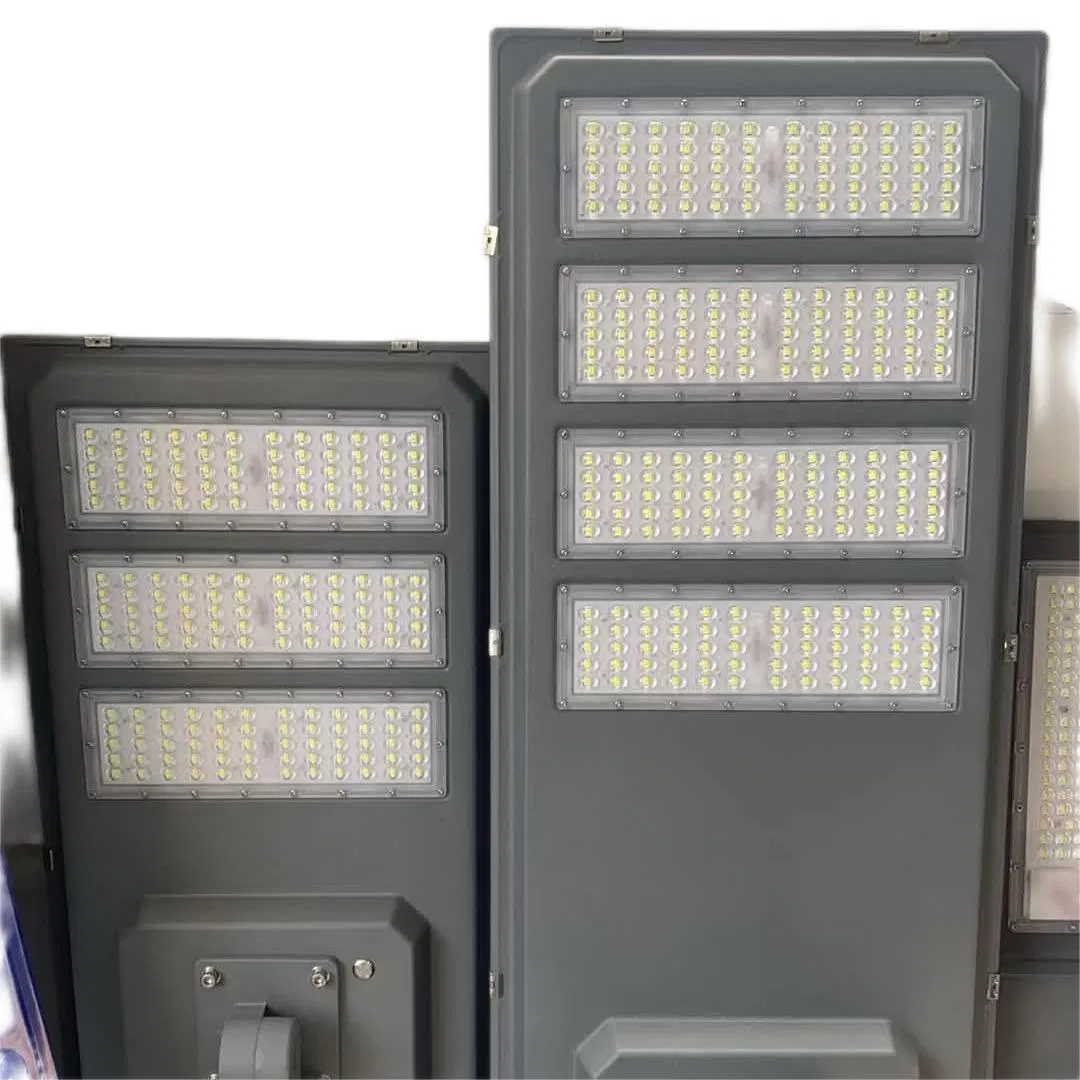

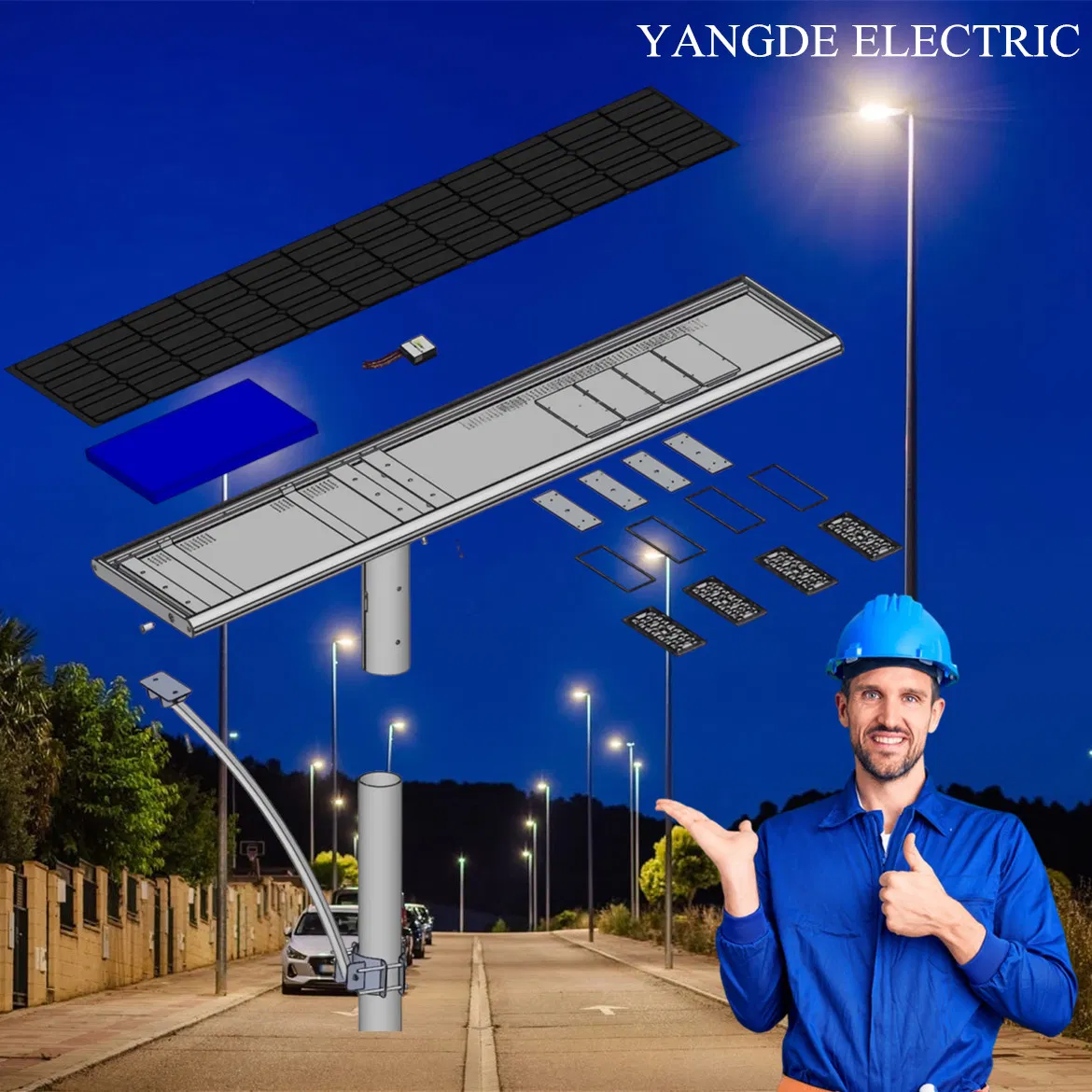

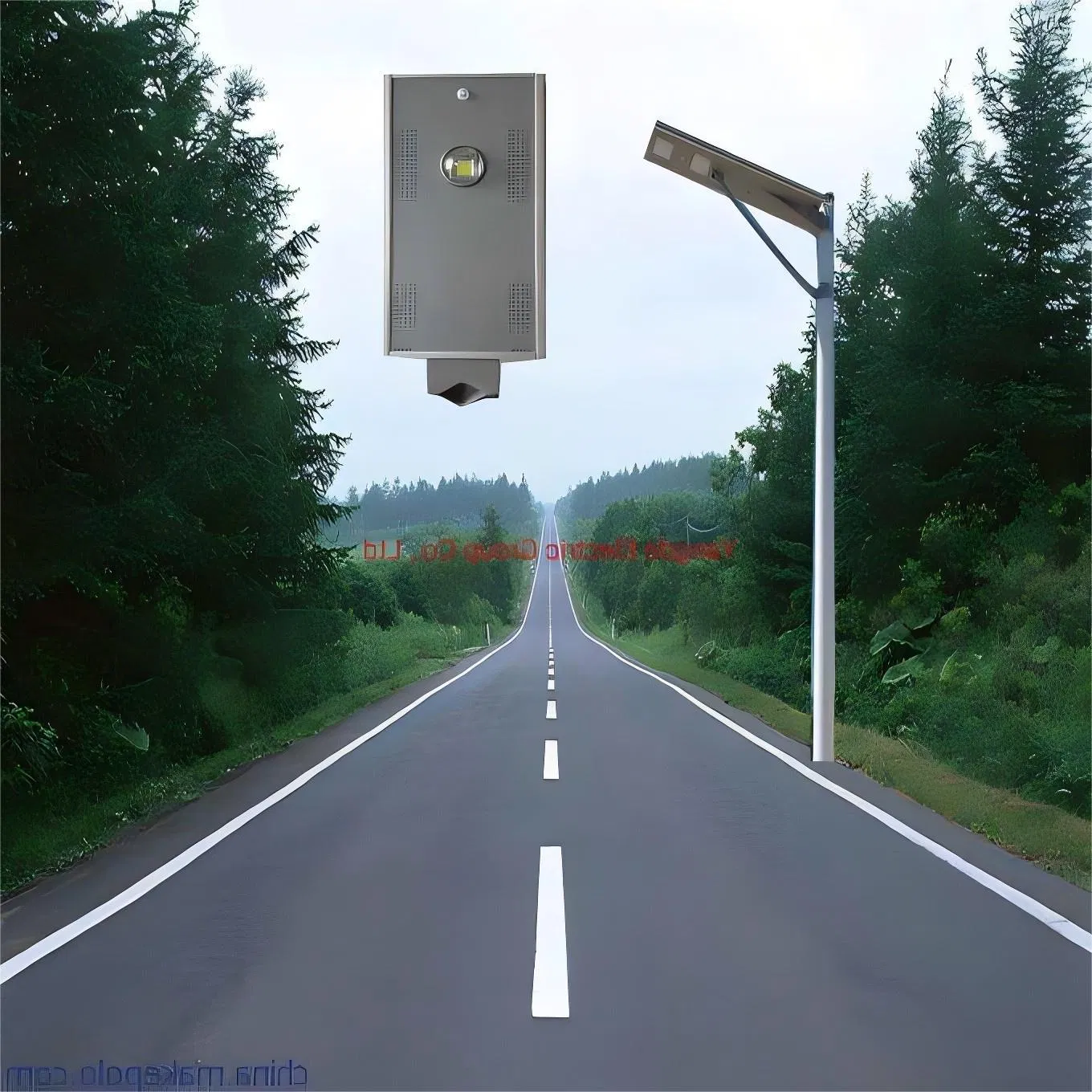

80W IP66 Intergrated All in One Lamp Pole Solar LED Street Light

Overview

Basic Info.

Model NO.AIO

Light SourceLED Lamp

Lamp Body MaterialAluminum

Light TypeSolar

Color TemperatureCool White

Power≥30W

TechnicsPainted Matte

Illumination Time8h

Cell TypeNi-MH Battery

Charging Time (H)6

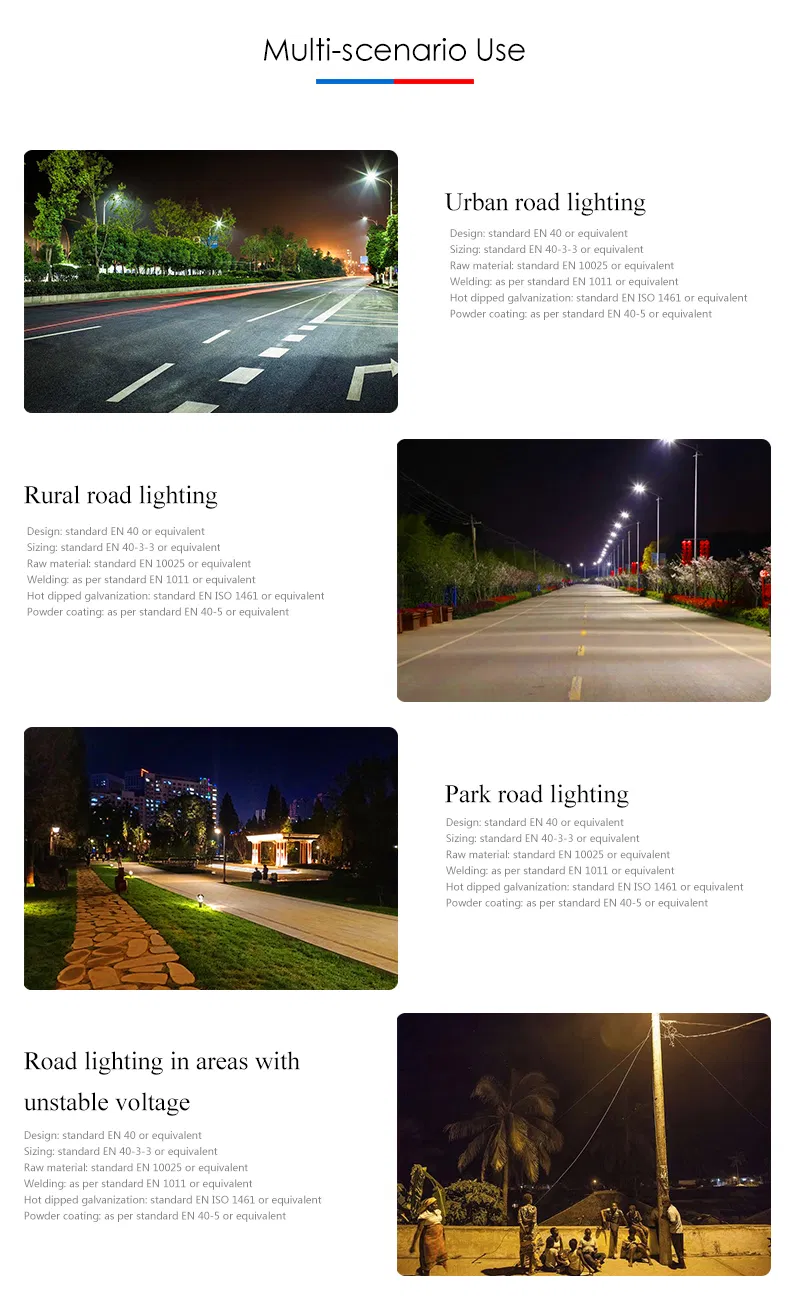

UsageGarden, Street, High Way Road

IP RatingIP65

CertificationCE, RoHS, Soncap, Etcn

Voltage12/24V

With Light SourceWith Light Source

LED Junction Temperature<60℃

LED Luminous Efficienty≥140 Lm/W

The Initial Light Flux4200-12600 Lm

Color RenderingRa>75%

Wind IndexLevel 12

Distribution CurveBat Wing

Lamp Life>50000h

Working ModeDaylight Control + Remote Control

Solar PanelMonocrystalline Solar Panel

MaterialAluminium Alloy + Tempered Glass

Pole′s Height6-12m

Dimmable1-10V / PWM / Dali Can Be Choose

Smart SystemPhotocell / PLC / Lora Control System

DriverMeanwell or Inventronics

Surge ProtectionL-N 6kv, L/N-Gnd 10kv(Options 20kv)

Transport PackageCarton, Wooden Case

Specification525*225*75mm

HS Code9405409000

Production Capacity5000 Piece/Pieces Per Month

Packaging & Delivery

Package Size52.00cm * 45.00cm * 150.00cm

Package Gross Weight45.000kg

Product Description

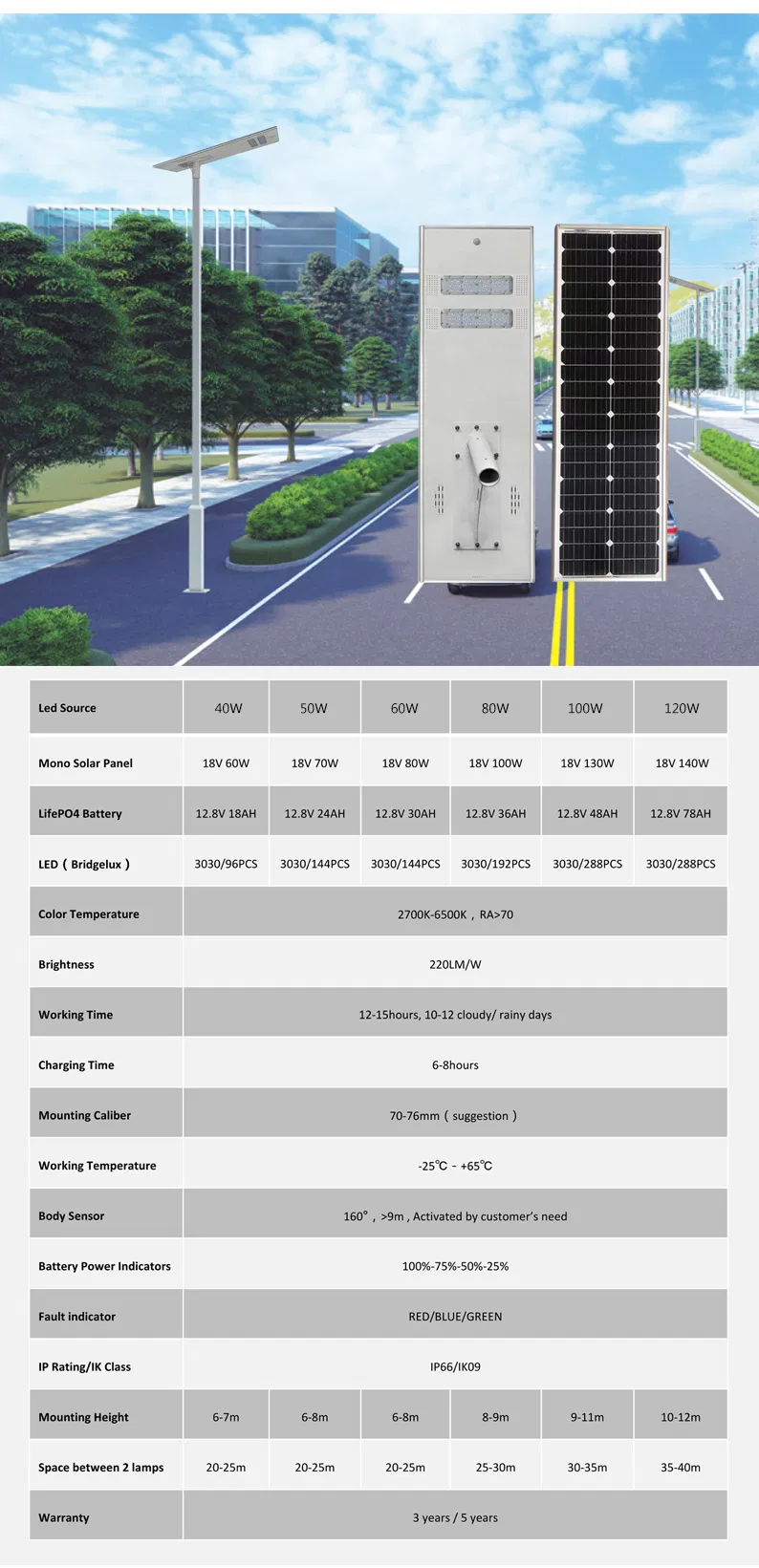

Model	Voltage	Battery	Solar Panel	Dimension / Packaging	Weight
YDAIO-01-20W	3.2V	3.2V/60AH	5V/40W	697361209mm / 760430150mm	4kg
YDAIO-01-30W	3.2V	3.2V/72AH	5V/50W	846361209mm / 910430150mm	4.5kg
YDAIO-01-40W	12V	12.8V/30AH	18V/65W	1096361209mm / 1160430150mm	5.4kg
YDAIO-02-20W	3.2V	3.2V/60AH	5V/40W	64035960mm / 720440140mm	18kg
YDAIO-02-30W	3.2V	3.2V/72AH	5V/50W	83035960mm / 910440140mm	21kg
YDAIO-02-40W	12V	12.8V/40AH	18V/70W	108035960mm / 1160440140mm	24kg
YDAIO-03-20W	12V	12.8V/20AH	18V/40W	64035960mm / 720440140mm	18kg
YDAIO-03-30W	12V	12.8V/30AH	18V/50W	83035960mm / 910440140mm	21kg
YDAIO-03-40W	12V	12.8V/40AH	18V/70W	108035960mm / 1160440140mm	24kg
YDAIO-03-50W	12V	12.8V/50AH	18V/80W	125042660mm / 1330510140mm	26kg
YDAIO-04-20W	3.2V	3.2V/72AH	5V/40W	64035960mm / 720440140mm	15kg
YDAIO-04-30W	12V	12.8V/30AH	18V/60W	83035960mm / 910440140mm	18kg
YDAIO-04-40W	12V	12.8V/40AH	18V/70W	108035960mm / 1160440140mm	22kg
YDAIO-04-50W	12V	12.8V/50AH	18V/80W	125042660mm / 1330510140mm	24kg
YDAIO-05-30W	12V	12.8V/30AH	18V/60W	83035960mm / 910440140mm	21kg
YDAIO-05-40W	12V	12.8V/40AH	18V/80W	108035960mm / 1160440140mm	24kg
YDAIO-05-50W	12V	12.8V/50AH	18V/100W	125042660mm / 1330510140mm	26kg
YDAIO-05-60W	24V	25.6V/40AH	36V/120W	125052860mm / 1330610140mm	28kg
YDAIO-06-40W	12V	12.8V/40AH	18V/70W	108035960mm / 1160440140mm	24kg
YDAIO-06-50W	12V	12.8V/50AH	18V/90W	125035960mm / 1330440140mm	26kg
YDAIO-06-60W	24V	25.6V/40AH	36V/120W	125052860mm / 1330610140mm	28kg
YDAIO-07-70W	24V	25.6V/40AH	36V/120W	133054860mm / 1410628140mm	30kg
YDAIO-07-90W	24V	25.6V/50AH	36V/140W	163054860mm / 1710628140mm	33kg
YDAIO-07-100W	24V	25.6V/70AH	36V/160W	193054860mm / 2010628140mm	37kg
YDAIO-07-120W	24V	25.6V/80AH	36V/180W	201054860mm / 2090628140mm	40kg

Product Features

✓ First integrated design, simple, fashionable, light and practical.

✓ Solar power is used to save energy and protect the earth's resources.

✓ Adopt the infrared induction control technology of the human body, people come to light, people walk the lamp dark, extend the lighting time;

✓ Adopt high capacity long life lithium battery to ensure the service life of the product.

✓ No need to pull wires, installation is very convenient.

✓ Waterproof structure, safe and reliable;

✓ Extensible timing, voice control and other functions.

✓ Adopt modular design concept to facilitate installation, maintenance and repair.

✓ Alloy material is used as the main body of the structure. It has good functions of rust prevention and corrosion prevention.

Radar Sensing

The person is fully lit in the sensing range and the light is half bright after leaving.

1. Solar Charging During the day.
2. When people pass by, in full light.
3. When people leave, in semi-bright state.

Mono-crystalline

1. High photoelectric conversion efficiency and high reliability.
2. Advanced diffusion technology ensures uniformity of conversion efficiency throughout the sheet.
3. Ensures good conductivity.

Monocrystalline silicon is generally packaged in tempered glass, which is durable and has a long service life.

IP66 Advanced Waterproof

Solar outdoor path light is waterproof IP65. No worries about rain, snow, frost or sleet. Stainless steel and rugged ABS plastic construction gives the longest-lasting life of any LED lights on the market. The bright light given off by this stainless outdoor solar light provides safety of passage when no light source is available.

Product Gallery

FAQ

Q1: Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2: What about the lead time?

A: Samples within 3 days, big order within 1-2 weeks.

Q3: Do you have any MOQ limit for led light order?

A: 1pc for sample checking is available.

Q4: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q5: How to Choose the System Voltage 12V or 24V or for normal street Light?

A: We can design the system for 12v or 24v according to the LED light power.

Q6: How to proceed an order for led light?

A: Firstly let us know your requirements.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
