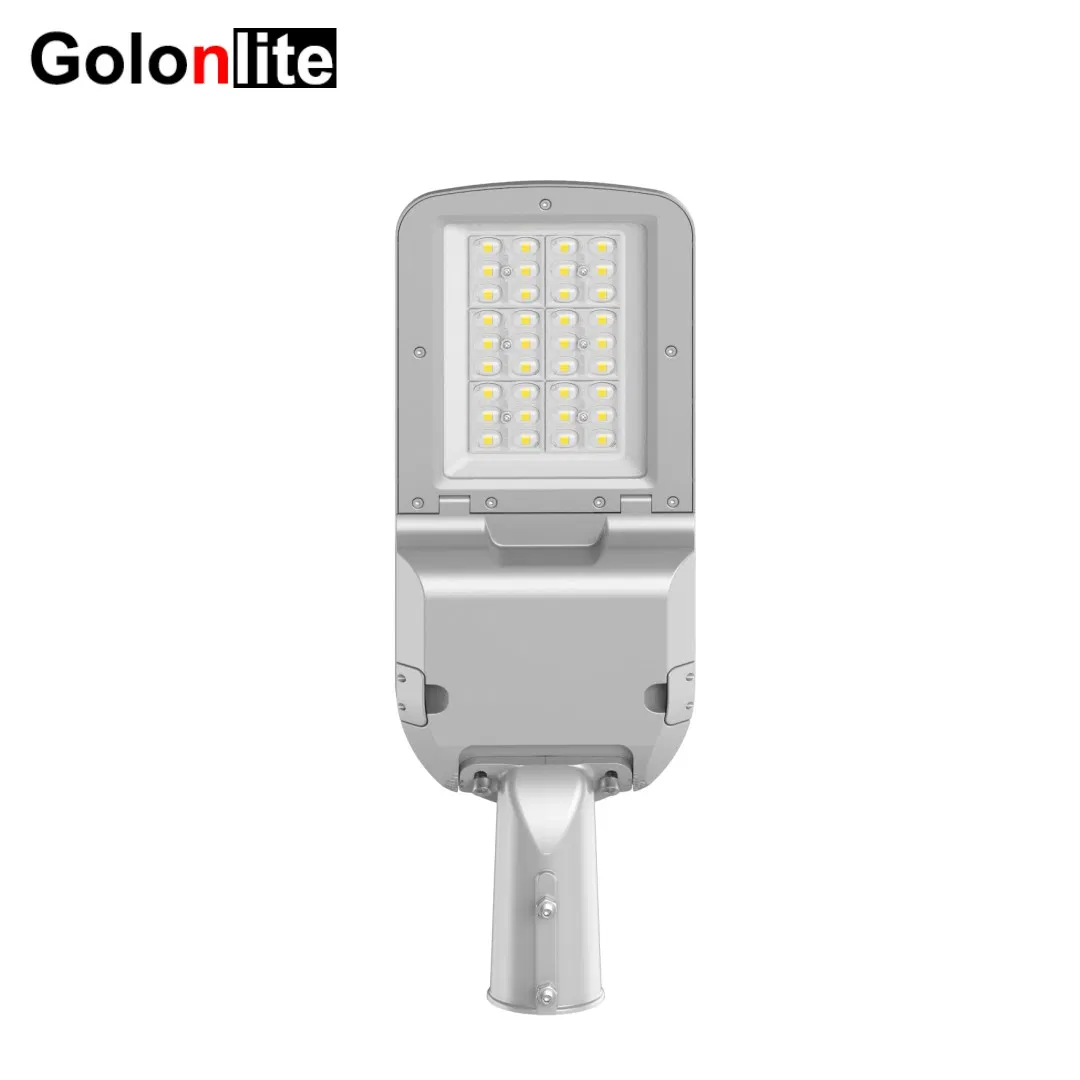

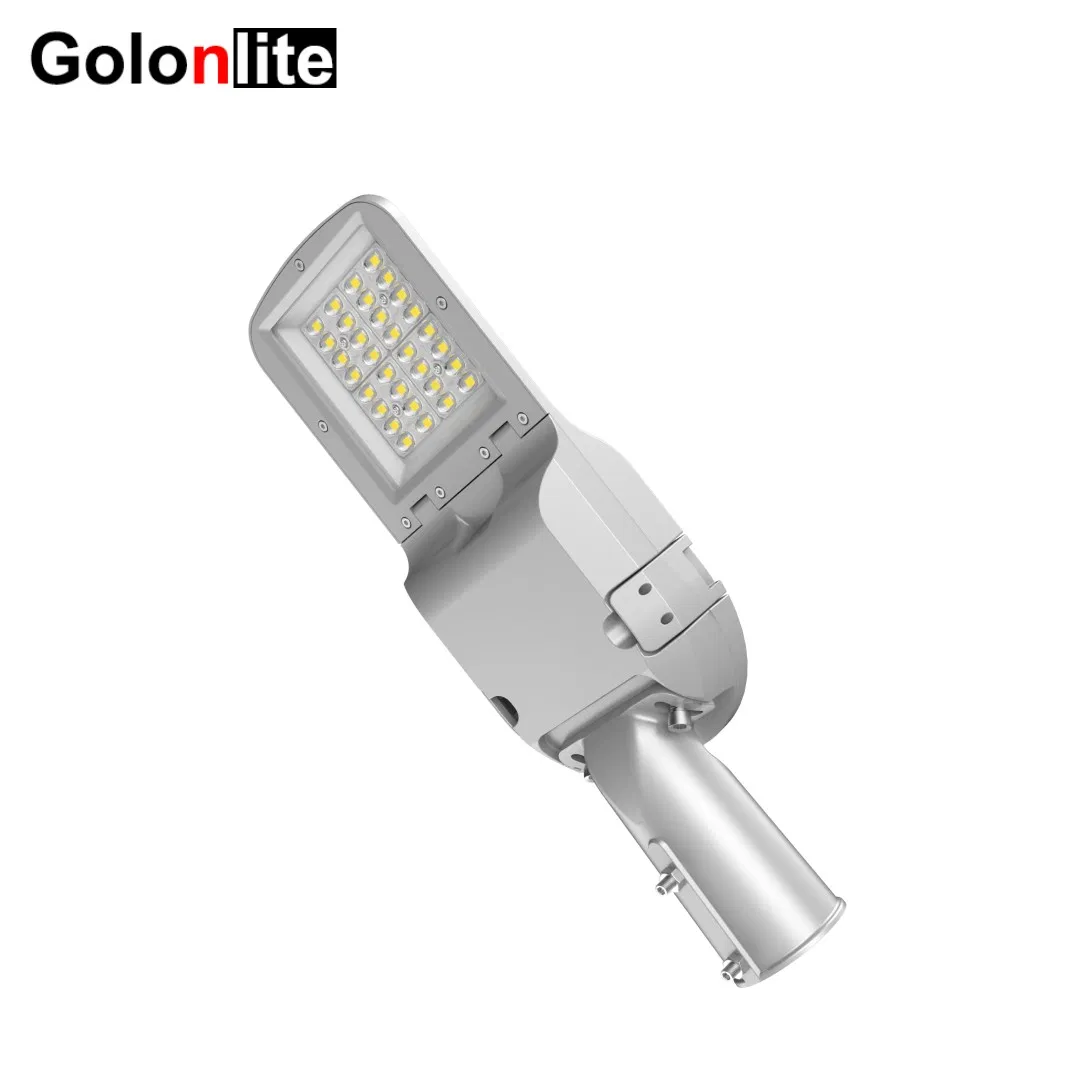

180lm/W IP66 Ik08 Photocell Post Top Parking Garden Pathway Highway Public Area Lighting 30W 40W 50W 60W 75W 90W 100W 120W 150W 200W 240W 300W LED Street Light
180lm/W IP66 Ik08 Photocell Post Top Parking Garden Pathway Highway Public Area Lighting 30W 40W 50W 60W 75W 90W 100W 120W 150W 200W 240W 300W LED Street Light
180lm/W IP66 Ik08 Photocell Post Top Parking Garden Pathway Highway Public Area Lighting 30W 40W 50W 60W 75W 90W 100W 120W 150W 200W 240W 300W LED Street Light
180lm/W IP66 Ik08 Photocell Post Top Parking Garden Pathway Highway Public Area Lighting 30W 40W 50W 60W 75W 90W 100W 120W 150W 200W 240W 300W LED Street Light
180lm/W IP66 Ik08 Photocell Post Top Parking Garden Pathway Highway Public Area Lighting 30W 40W 50W 60W 75W 90W 100W 120W 150W 200W 240W 300W LED Street Light
1 / 5
180lm/W IP66 Ik08 Photocell Post Top Parking Garden Pathway Highway Public Area Lighting 30W 40W 50W 60W 75W 90W 100W 120W 150W 200W 240W 300W LED Street Light
180lm/W IP66 Ik08 Photocell Post Top Parking Garden Pathway Highway Public Area Lighting 30W 40W 50W 60W 75W 90W 100W 120W 150W 200W 240W 300W LED Street Light
180lm/W IP66 Ik08 Photocell Post Top Parking Garden Pathway Highway Public Area Lighting 30W 40W 50W 60W 75W 90W 100W 120W 150W 200W 240W 300W LED Street Light
180lm/W IP66 Ik08 Photocell Post Top Parking Garden Pathway Highway Public Area Lighting 30W 40W 50W 60W 75W 90W 100W 120W 150W 200W 240W 300W LED Street Light
180lm/W IP66 Ik08 Photocell Post Top Parking Garden Pathway Highway Public Area Lighting 30W 40W 50W 60W 75W 90W 100W 120W 150W 200W 240W 300W LED Street Light

180lm/W IP66 Ik08 Photocell Post Top Parking Garden Pathway Highway Public Area Lighting 30W 40W 50W 60W 75W 90W 100W 120W 150W 200W 240W 300W LED Street Light

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.
Lamp Body Material
Die Casting Aluminum + PC Lens + Tempered Glass
Power
200W/180W /150W/120W/100W/80W/60W/50W/30W
Application
Square, Highway, Garden, Street, Parking Lot, Road, Park
IP Rating
IP66 / Ik08
Certification
CE, EMC, LVD, RoHS
Input Voltage
100-277VAC 50/60Hz
With Light Source
With Light Source
LED Chips Brand
SMD3030 / SMD5050
Item Name
180lm/W LED Street Light 30W-300W
Warranty
5/7/10 Years Warranty
Feature 1
Fast Delivery
Feature 2
Die Casting Alum +Optic Lens + Tempered Glass
Installations
40/50/60mm Pole Diameter
Feature 3
Competitive Factory Price Directly
SPD
6kv / 10kv / 20kv
Features 4
Free Dialux Lighting Simulation
NEMA Socket
3/5/7 Pins NEMA ; Zhaga Socket
Smart Control
Lorawan / Zigbee / Nb-IoT
Dimmable
0-10V / PWM / Dali
Transport Package
1PC/CTN;
HS Code
9405409000
Production Capacity
5000 Unit/Units Per Month
Product Description

180Lm/W IP66 IK08 Photocell Post Top Parking Garden Pathway Highway Public Area Lighting 30W 40W 50W 60W 75W 90W 100W 120W 150W 200W 240W 300W LED street light

LED Street Light Specifications:
Product description: 150LM/W - 180Lm/W LED street light
Item no.: GL-SL-300W/240W/200W/180W /150W/120W/100W/80W/60W/50W/40W/30WB
Light LED Type SMD3030 / SMD5050
Luminous Efficiency 140Lm/W - 170Lm/W
CCT(K) 1700K / 2200K 3000K / 4000K / 5000K / 5700K / 6500K
CRI > Ra80/70
Power Supply Meanwell / Inventronics / Sosen / Moso Driver
Lifespan (Hrs) > 50,000Hours
Electricity Input Voltage(V) 100-277VAC, 347V, 480VAC , 50/60Hz
Beam angle T2M/T3M/T4M
Power Consumption(W) 300W/240W/200W/180W/150W/120W/100W/80W/60W50W/30W±2W
Smart control 3/5/7 pins NEMA base /Photocell sensor / LoRaWan/ Zigbee / NB-Iot
IP /IK grade / SPD IP66 waterproof / IK08 / SPD 6KV/10KV/20KV
Replacement Metal Halide / HPS / HID / Halogen lamps
Structure Materials Die casting Aluminum housing + Optic lens + tempered glass
Outlet cable 3 cores cable
Installations 40/50/60mm pole dia.
Certificate CE RoHS 5/7 years warranty
Quality High Efficiency LED Street Light Product Features
  • Die casting aluminum housing + Optical PC lens + tempered glass;
  • Super bright: reach 180Lm/W high lumens efficiency; the best energy saving;
  • With more optical lens: T2M/T3M/T4M/P50 etc.
  • SPD 6KV /10KV / 20KV.
  • With SMD5050 / SMD3030 LED, Ra70/80;
  • IP66 waterproof, IK08.
  • 3/5/7 Pins NEMA base; Photocell sensor / Zigbee NEMA / LoRaWan /NB-Iot Smart control
  • 5/10 years warranty, remarkable performance, good quality;
  • Free Dialux lighting simulation available;
  • Widely applications for urban roads industrial areas, residential areas, sidewalks, parking lot, schools, gardens. Street, park etc.
  • LED light factory directly, competitive price, fast delivery.
Visual Showcase

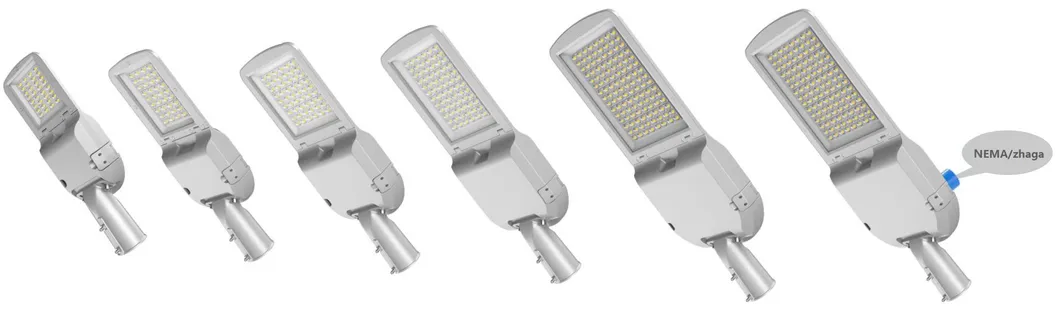

LED Street Light Main Banner

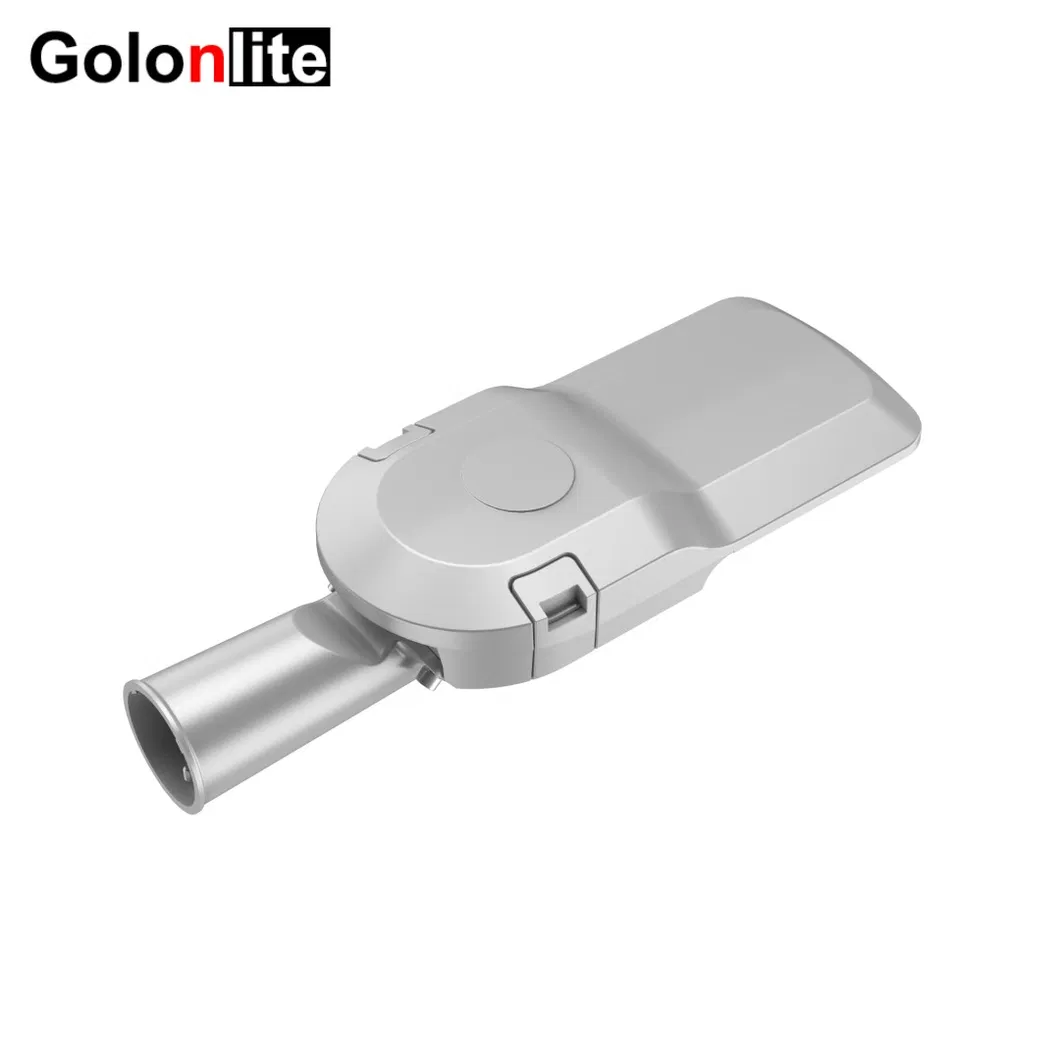

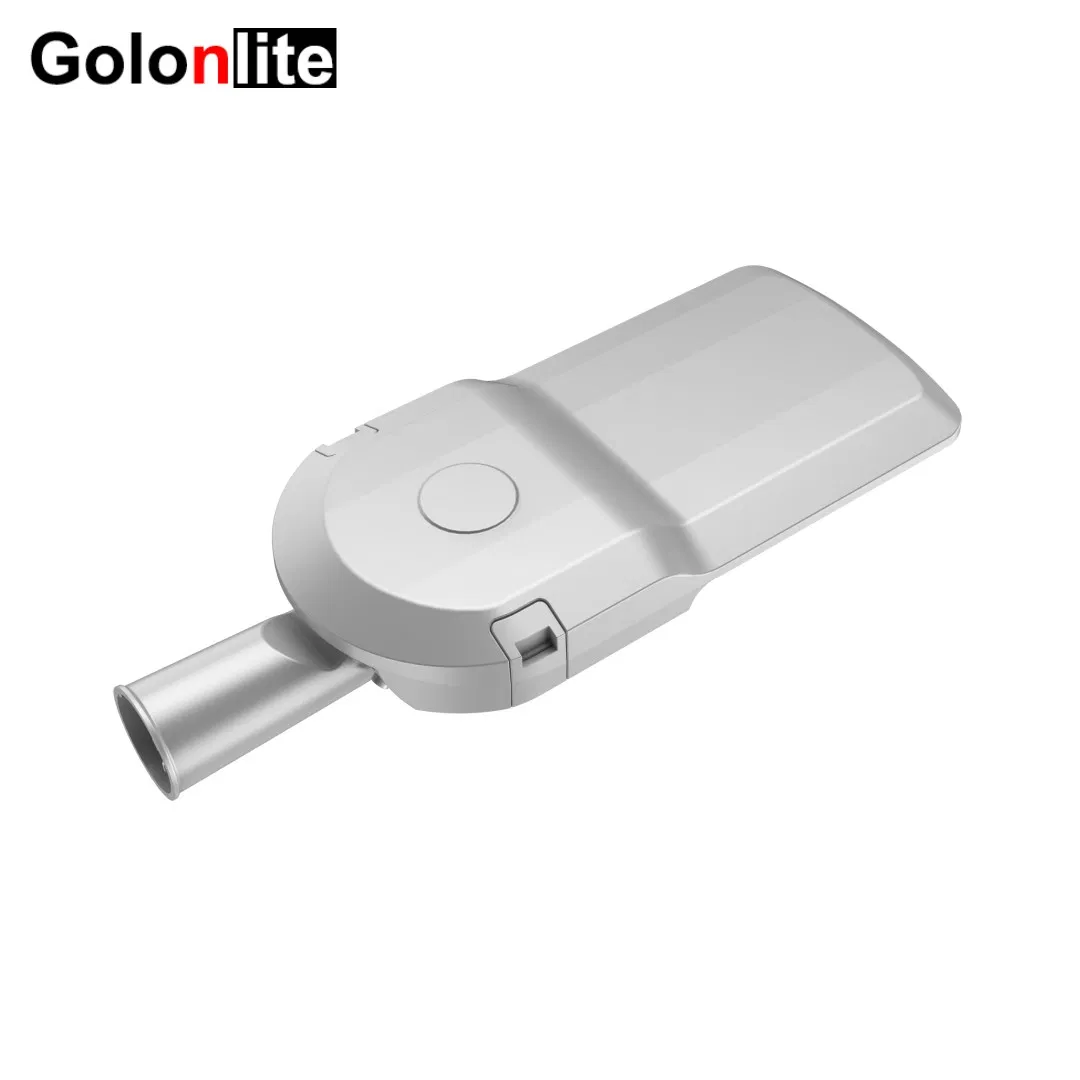

LED Street Light Side View LED Street Light Top View

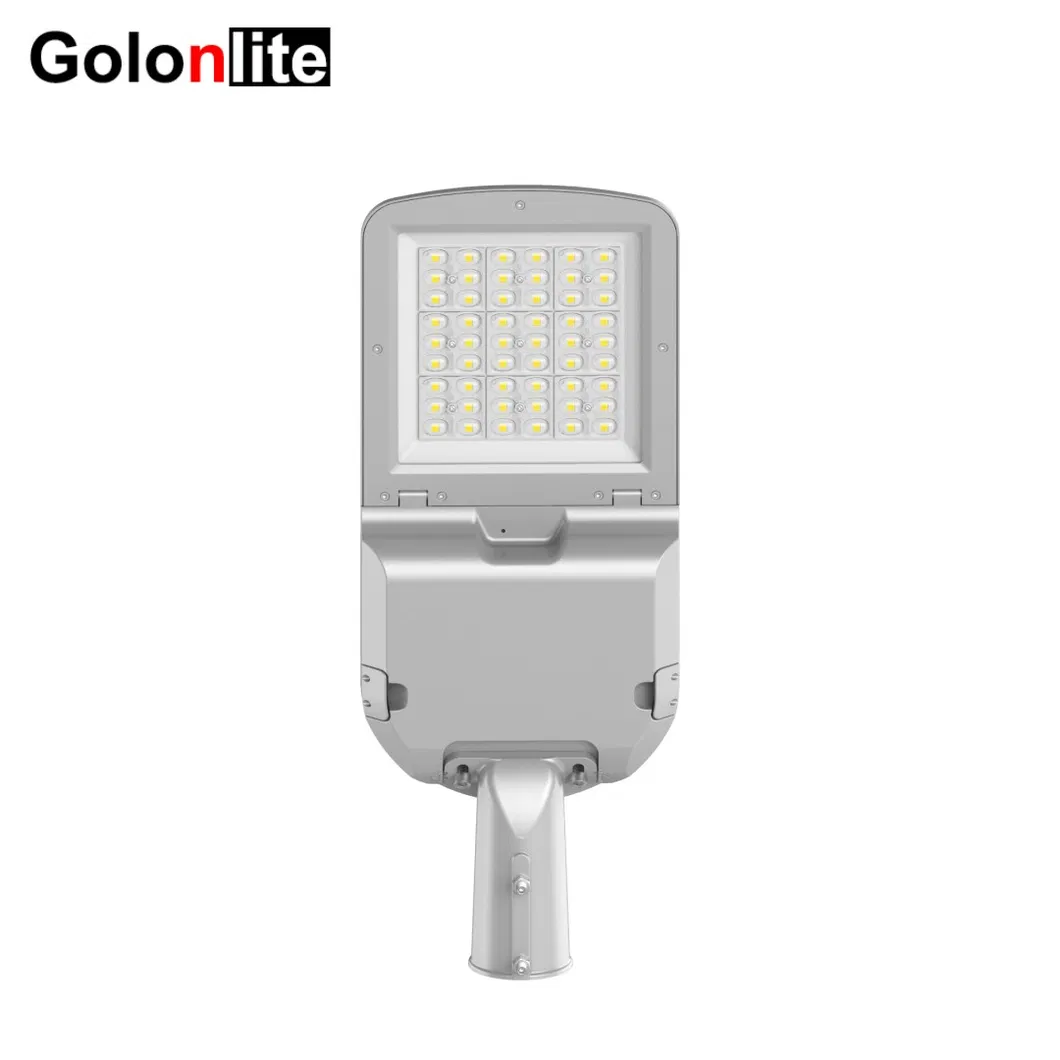

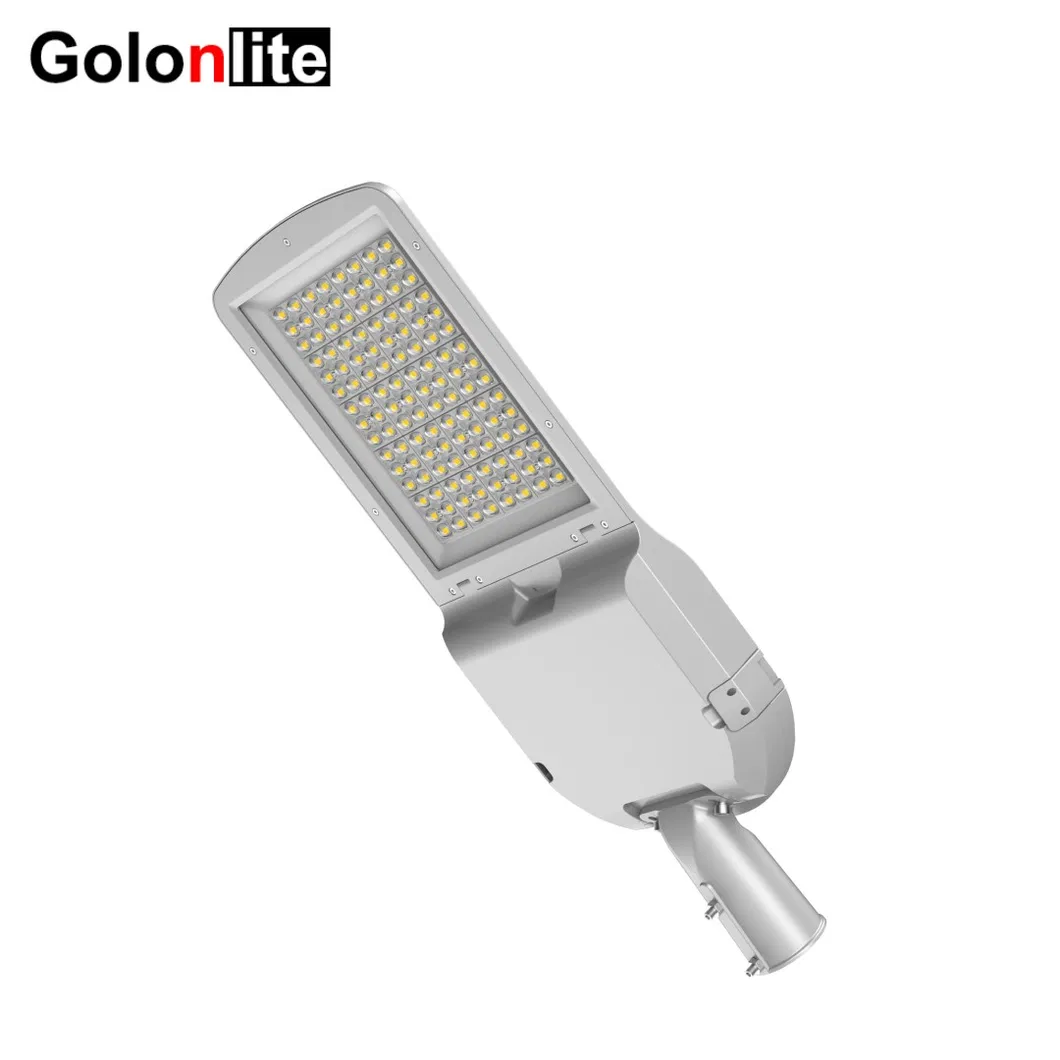

LED Street Light Open View LED Street Light Component View

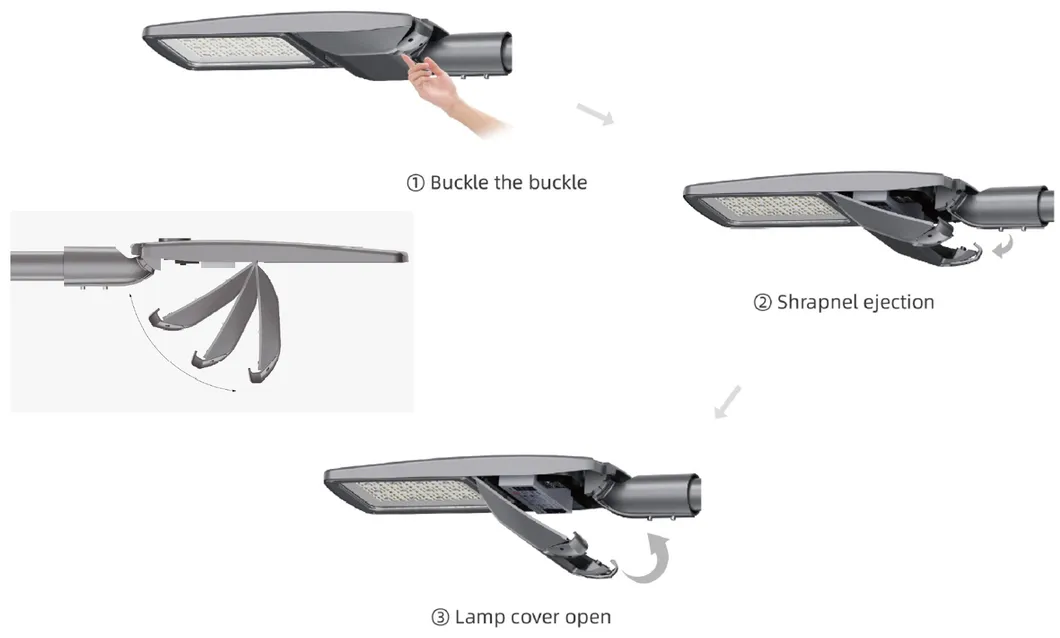

Tool-Free opening design for easy maintenance:
Tool-Free Design
LED street light installations:

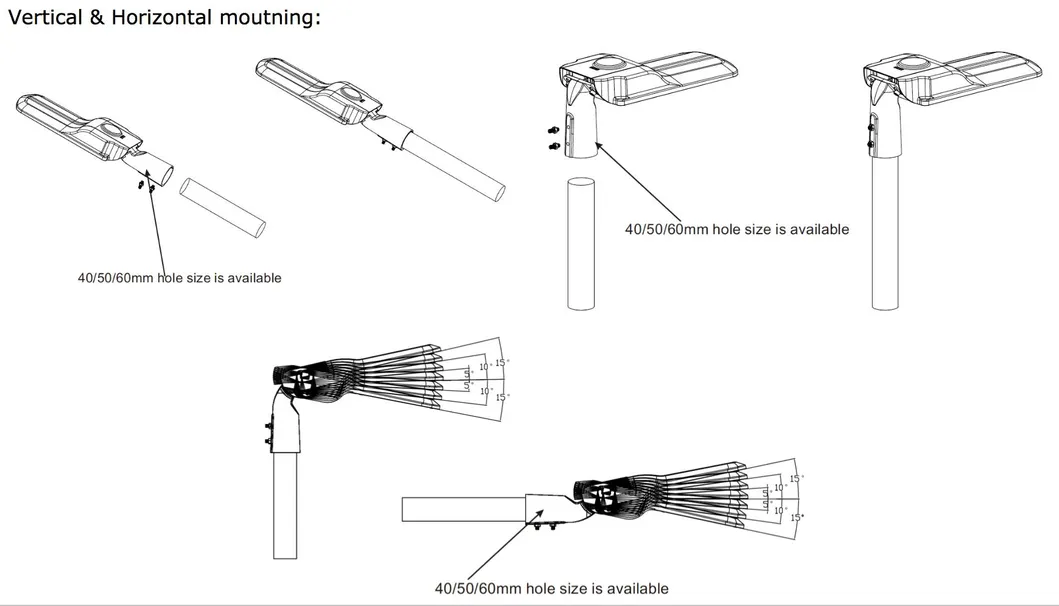

Installation Details 1

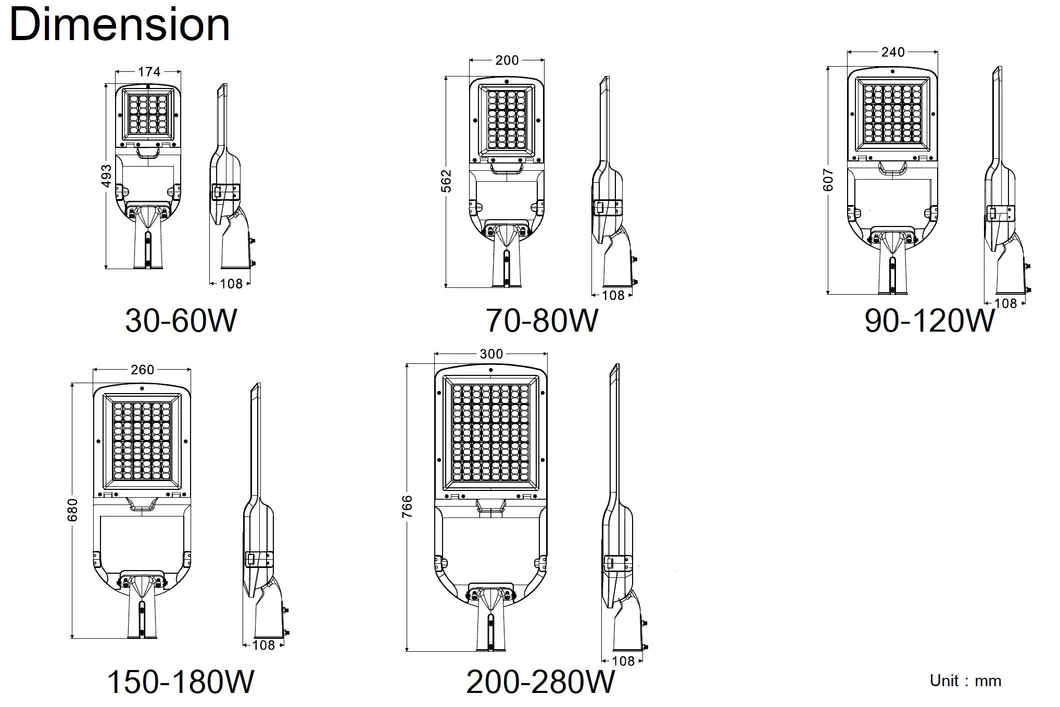

Installation Details 2
LED street light strong package:

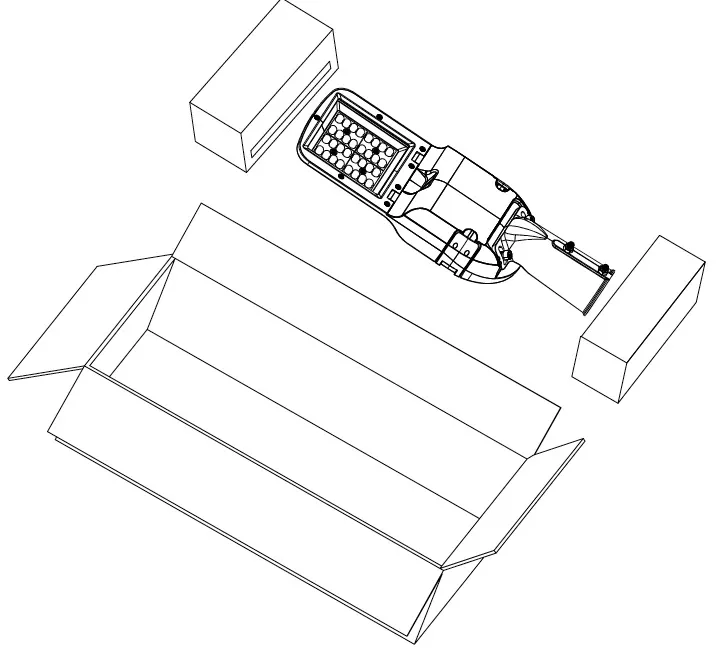

Packaging details

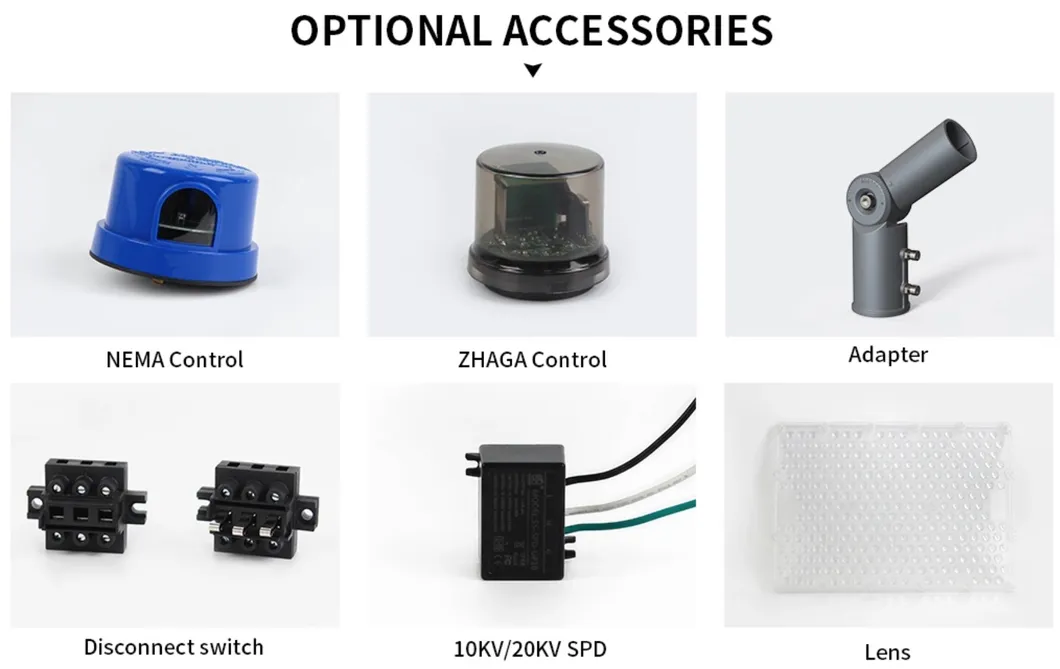

Packaging Dimension Diagram
Smart Control with LoRaWAN / Zigbee NEMA Photocell Control

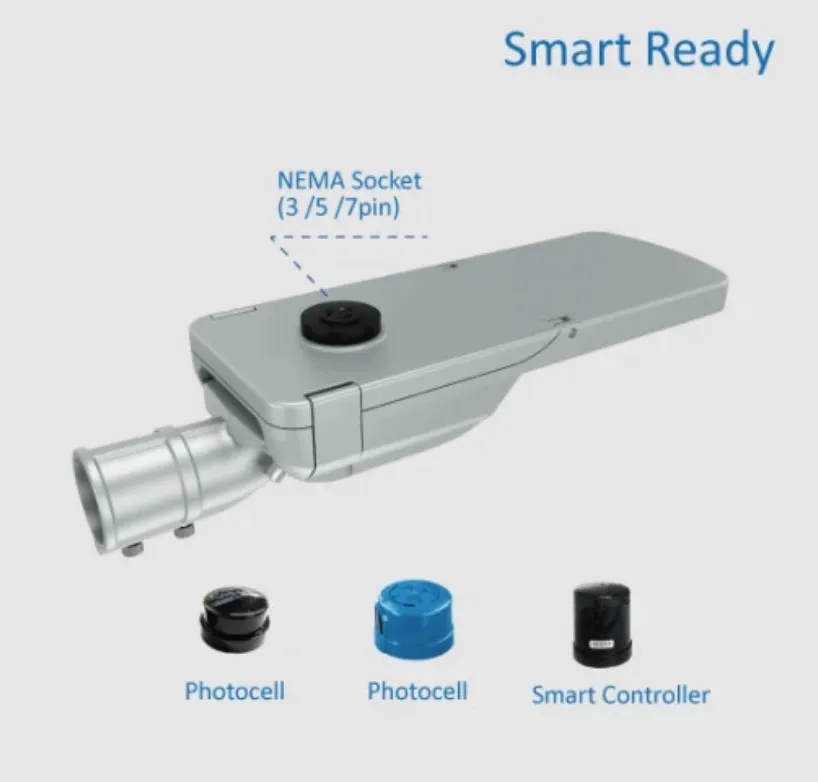

Smart Photocell Sensor NEMA Controller

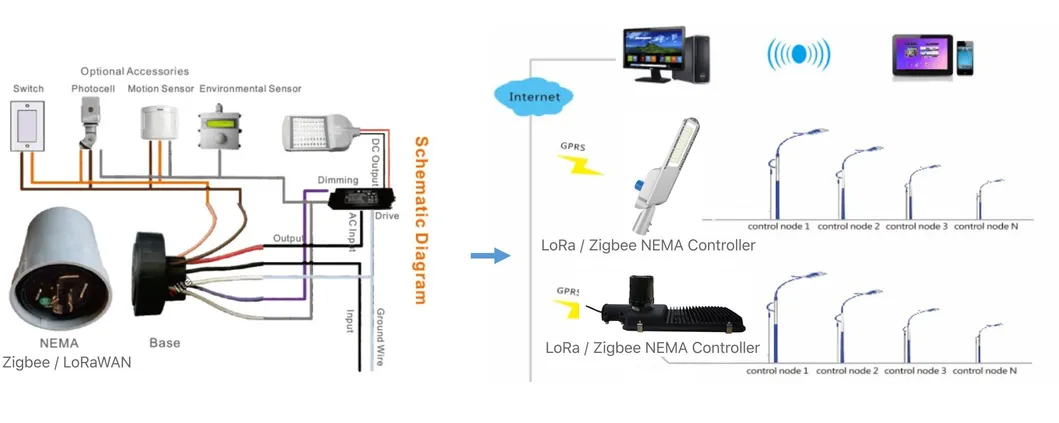

Smart Control Network

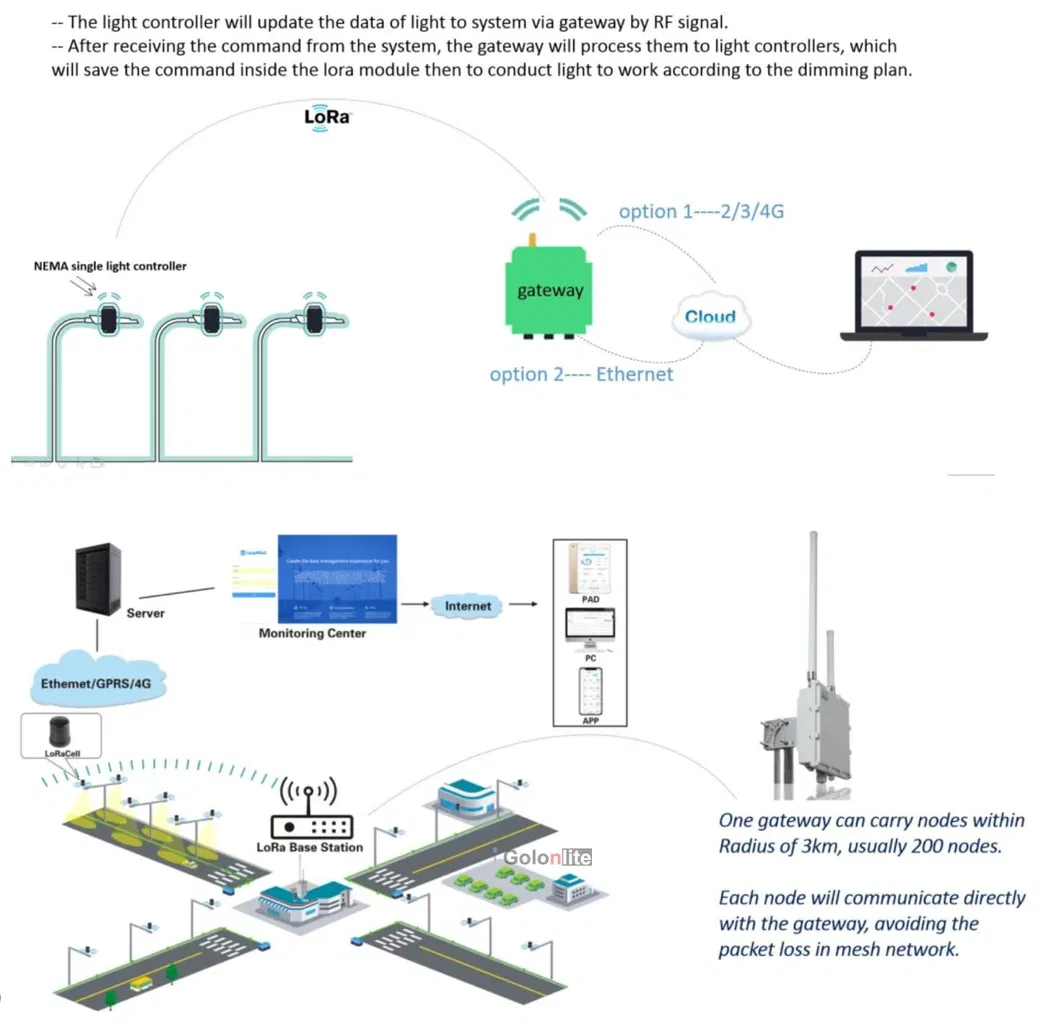

Centralized Management Software System
What can the system do?

• Support remote switch on/off, dimming, color temperature adjusting, group controlling, camera monitoring...

• Support electricity report of power consumption & power saving

• Support interval status report and fault alarm

• Support power rate setting and electricity bill checking

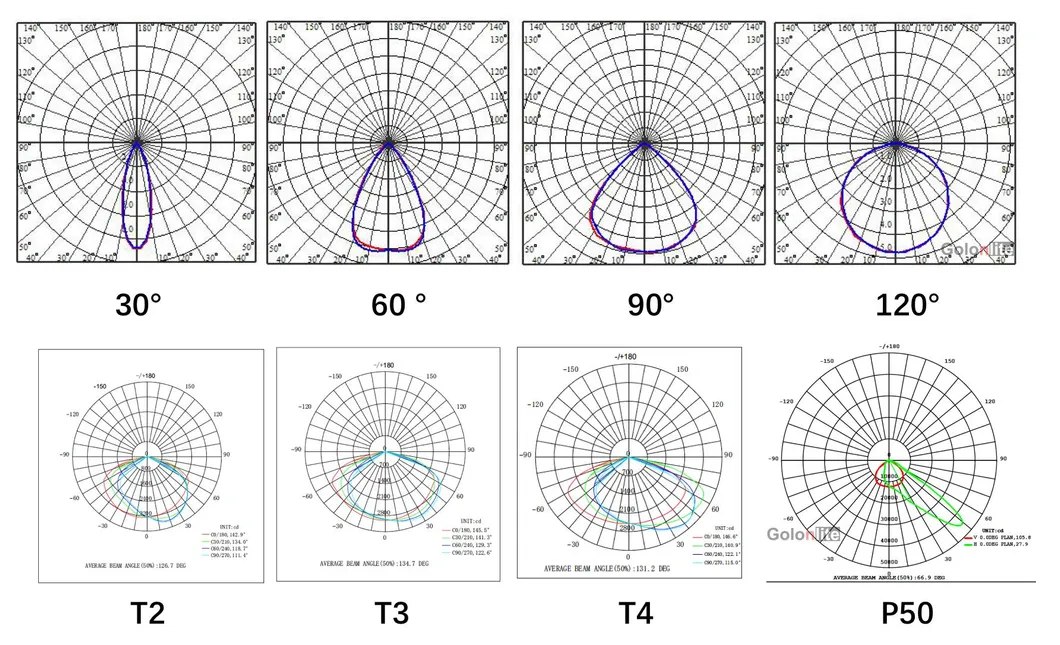

Beam Angle & Configurations
Beam Angle distribution

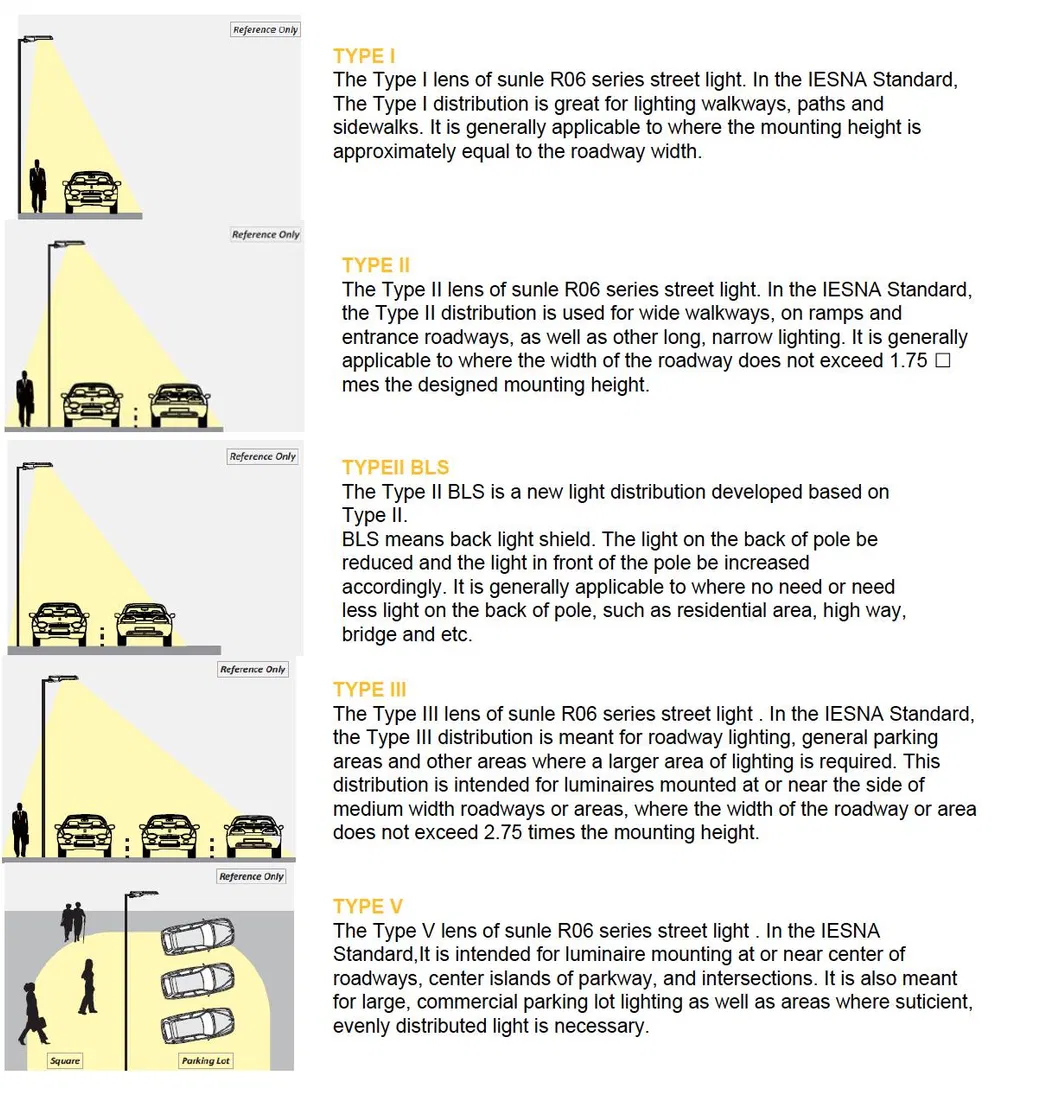

Photometric distribution curves

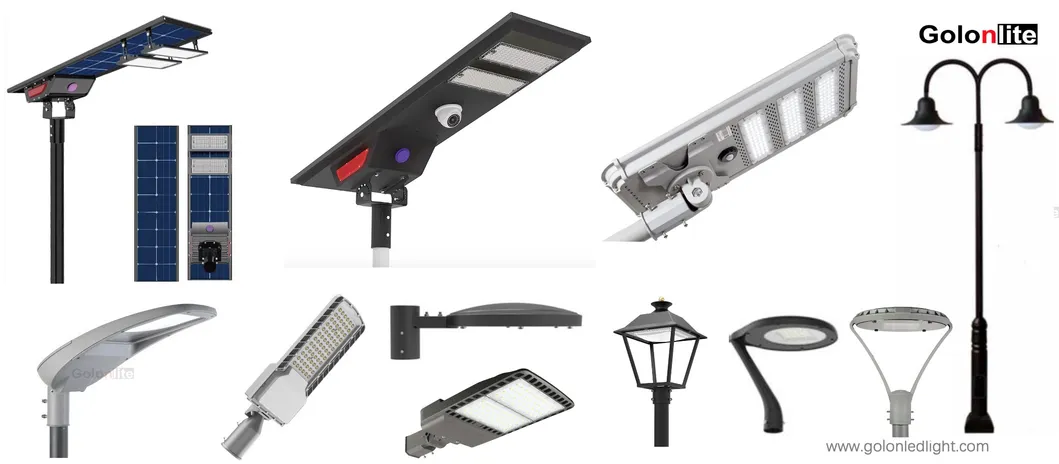

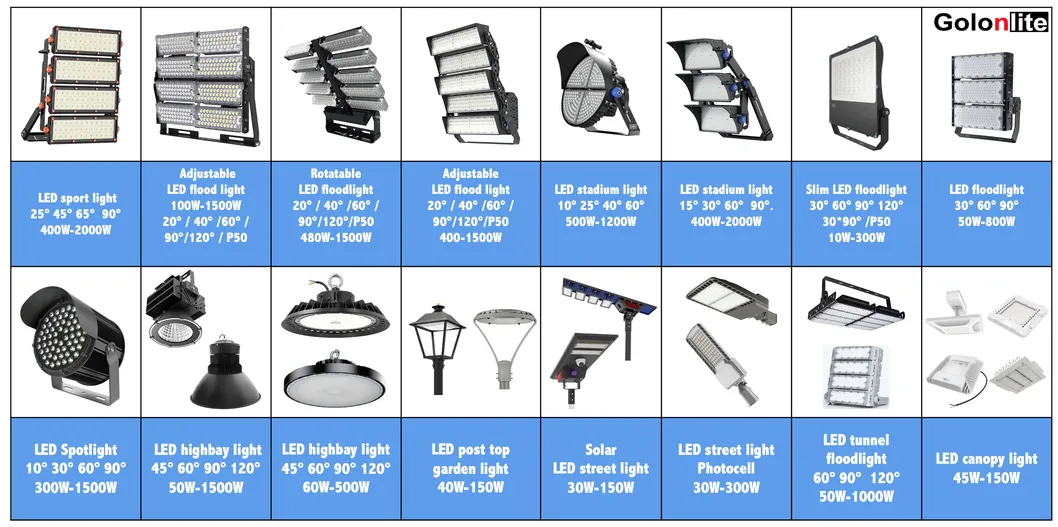

More LED Street Light Fitting Series

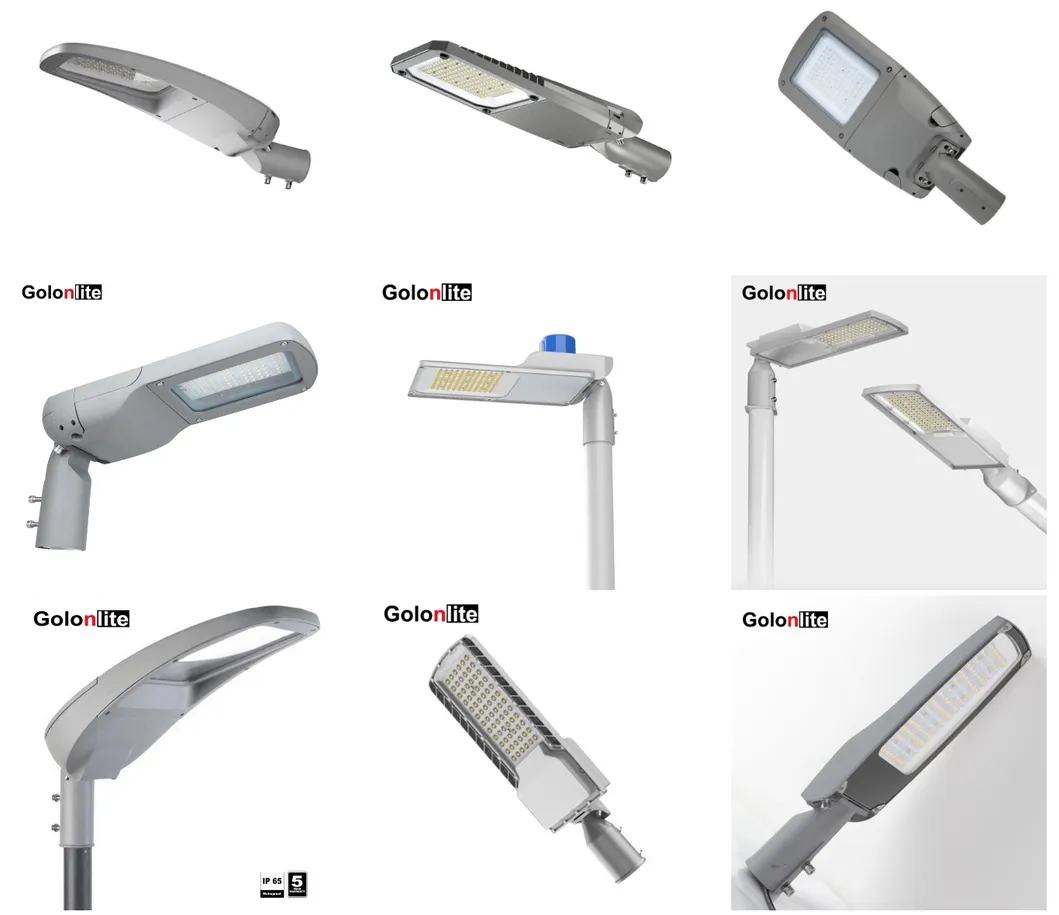

Different models selection
Model options overview 1
Model options overview 2
Applications

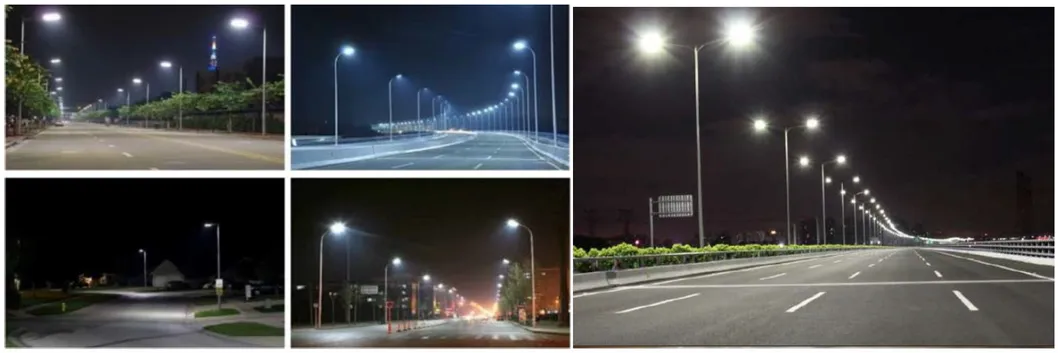

Street Light Installation projects

Ideal for Post Top Parking, Garden, Pathway, Highway, and Public Area Lighting (30W to 300W models available).

Factory Testing and Quality Control
Certification documents and laboratory tests
Standard Services
  • Any inquiries will be replied in 24hrs.
  • All your inquiries will be well explained by our experienced staff.
  • All after sale problems will be deal with in 24hrs.
  • OEM, ODM welcomed.
  • Distributorship is available for your unique design and some of our current models.
  • We will keep secret for customer sale area, design ideas and all other private information.
  • Offer 5 years warranty.
  • Lighting design for free --- Provide IES file, Dialux lighting design & solutions.

Unit price is negotiable. If you need photocell sensor LED street lights with 300W, 240W, 200W, 150W, 120W, 100W, 75W, 50W, or 30W options, please contact us. We will reply within 24 hours.

Frequently Asked Questions
What are the main benefits of the 180lm/W LED street lights?
They offer extreme energy efficiency (up to 180Lm/W), durable die-casting aluminum housing, superior heat dissipation, and a long lifespan (>50,000 hours), significantly reducing maintenance and power costs.
What smart control options are compatible with these street lights?
The lights support advanced smart control systems, including 3/5/7 pins NEMA bases, photocell sensors, LoRaWAN, Zigbee, and NB-IoT architectures.
Are these LED street lights weather-resistant?
Yes, they feature an IP66 waterproof rating and IK08 impact protection, making them ideal for harsh outdoor environments such as highways, parks, and parking lots.
What pole diameters are compatible with the installation?
These LED street lights are designed to fit standard pole diameters of 40mm, 50mm, and 60mm.
Can I request a lighting simulation before purchasing?
Yes, we provide free Dialux lighting simulations to help design and optimize the lighting layout for your specific application areas.
What certifications do these outdoor lights have?
These fixtures are fully certified with CE, EMC, LVD, and RoHS compliance, ensuring safety, reliability, and performance.
