Product Description

Basic Info
Model NO.
LKH
Light Source
LED Lamp
Lamp Body Material
Aluminum
Light Type
Solar
Color Temperature
Pure White
Power
30W 40W 60W 80W 100W 120W
Technics
Painted Matte
Illumination Time
12h
Cell Type
LiFePO4 Lithium Battery
Charging Time (H)
8
Usage
Garden, Street, Multi Application
IP Rating
IP65
Certification
CE, RoHS
Voltage
12/24V
With Light Source
With Light Source
Application
Urban and Suburban Roads, Rural Highways, Mountain
LED
SMD3030
Lighting Angle
75*155° / Transmittance: >95%
Bakcup
3-5 Rainy & Cloudy Days
Remote Control
Ntelligent Control +Microwave Induction + Segmente
Lamp Luminous Flux(Lm)
6000lm~24000lm
Solar Panel
Mono
Controller
MPPT
Power Supply
Solar, DC
Working Temperature(℃)
-20~60
Item Type
Integrated Outdoor Road Lamp
Color
Grey, Black
Transport Package
Carton
Specification
995*460*150mm
Origin
China
HS Code
9405410000
Production Capacity
10000sets Per Month
Packaging & Delivery
Package Size
110.00cm * 46.00cm * 18.00cm
Package Gross Weight
15.000kg
Product Description
High Capacity Battery Integrated Solar Street Light Industrial LED 30W 40W 60W 80W 100W 120W MPPT Controller for Public Road
LKH Series All-in-One Solar Street Light – High Efficiency & Smart Performance
Designed for industrial and municipal applications, the LKH Series delivers true 30W–120W output with an exceptional luminous efficiency of 200LM/W, ensuring brighter lighting with optimized energy use.
Featuring premium imported LED chips and high-transmittance Teijin optical lenses (>95%), it provides wide coverage, uniform illumination, and enhanced visibility for roads, residential areas, and parking lots.
Built for durability, the housing combines ADC12 die-cast aluminum with 6063 aluminum, available in sleek grey or black finishes. An advanced thermal management system—including high-conductivity PCB and an enlarged heat sink—effectively controls temperature, extending product lifespan and ensuring stable performance in harsh outdoor environments.
Equipped with a next-generation LiFePO4 battery and intelligent MPPT controller, the system maximizes charging efficiency and battery longevity. Smart functions such as microwave motion sensing and time-based dimming enhance energy savings.
With a fully integrated, wire-free design, installation is quick and flexible (vertical or horizontal mounting supported). Optional features like CCTV integration, IoT connectivity, and anti-bird spikes provide added versatility. Backed by a 3-year warranty and user-friendly battery replacement, it offers a reliable and scalable lighting solution for long-term use.

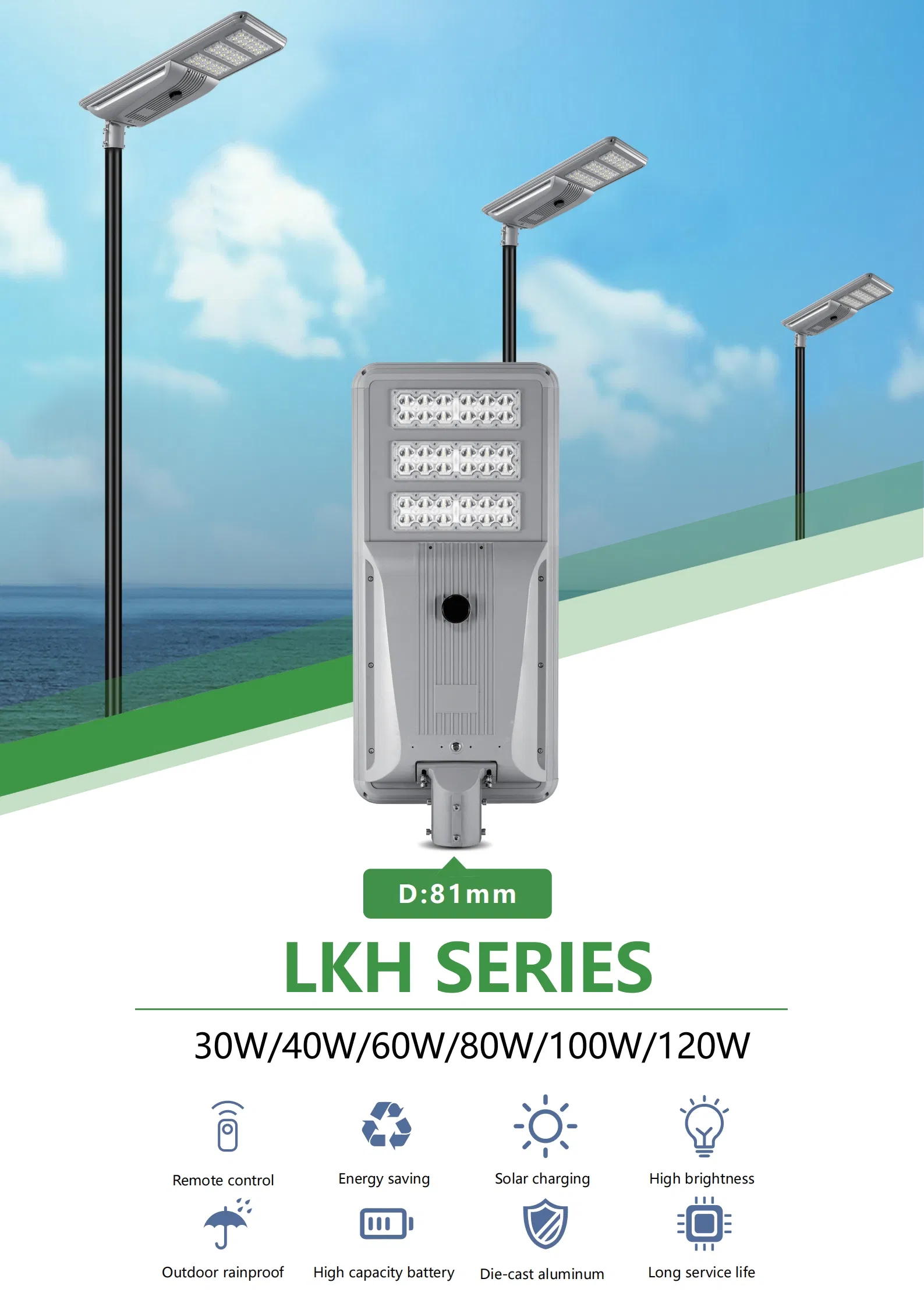

High Capacity Battery Integrated Solar Street Light

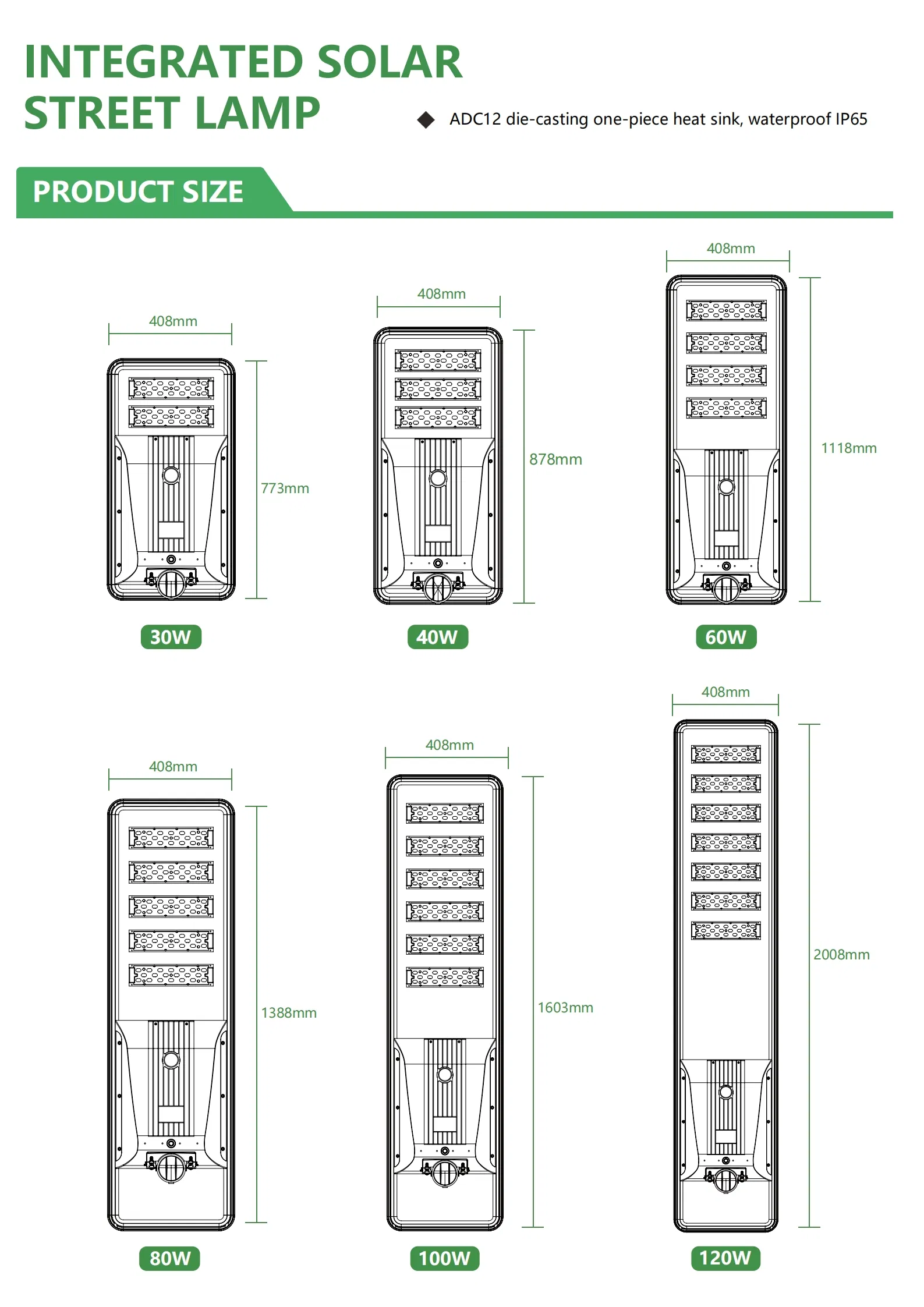

Integrated Solar Street Light Details

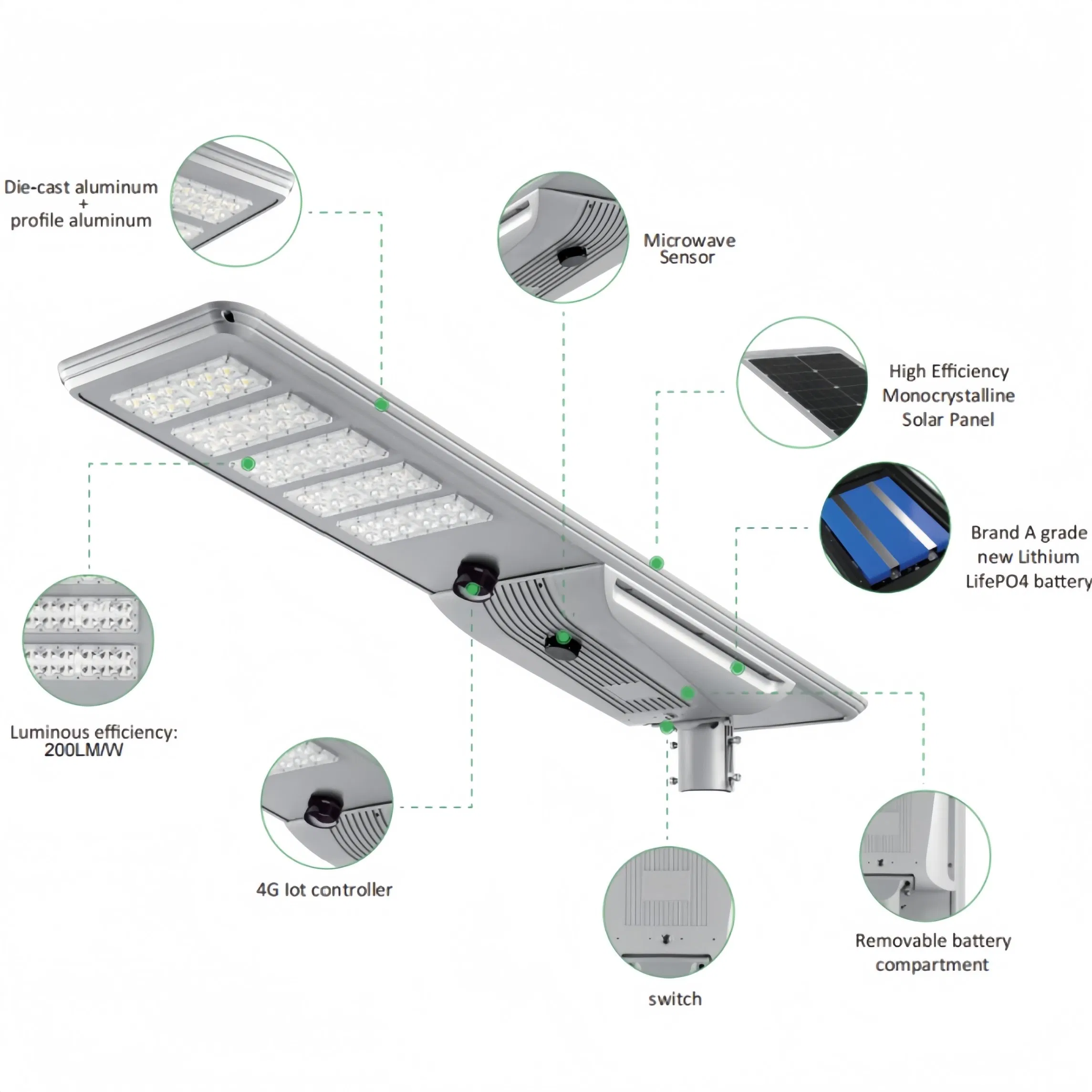

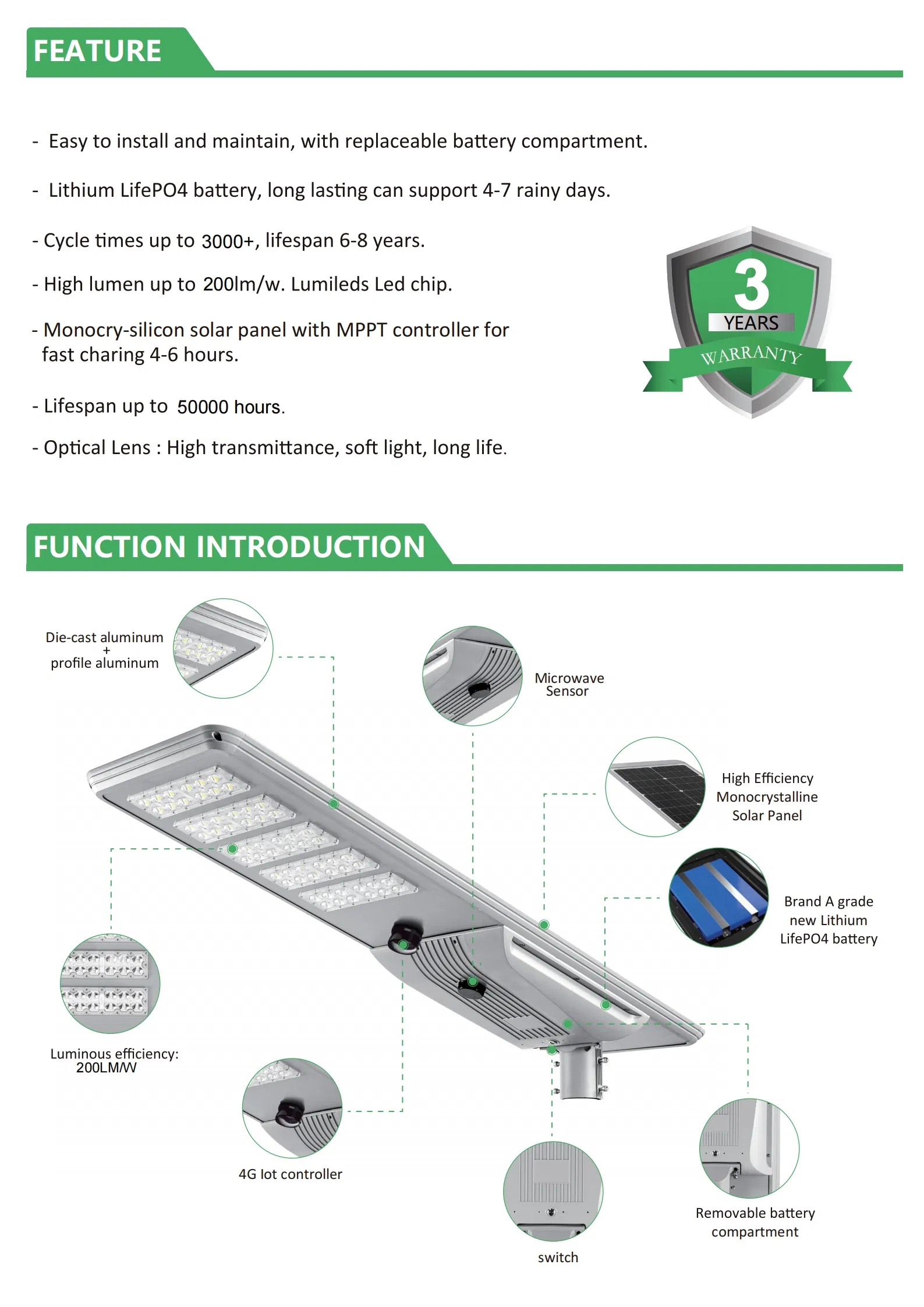

Solar Street Light Features

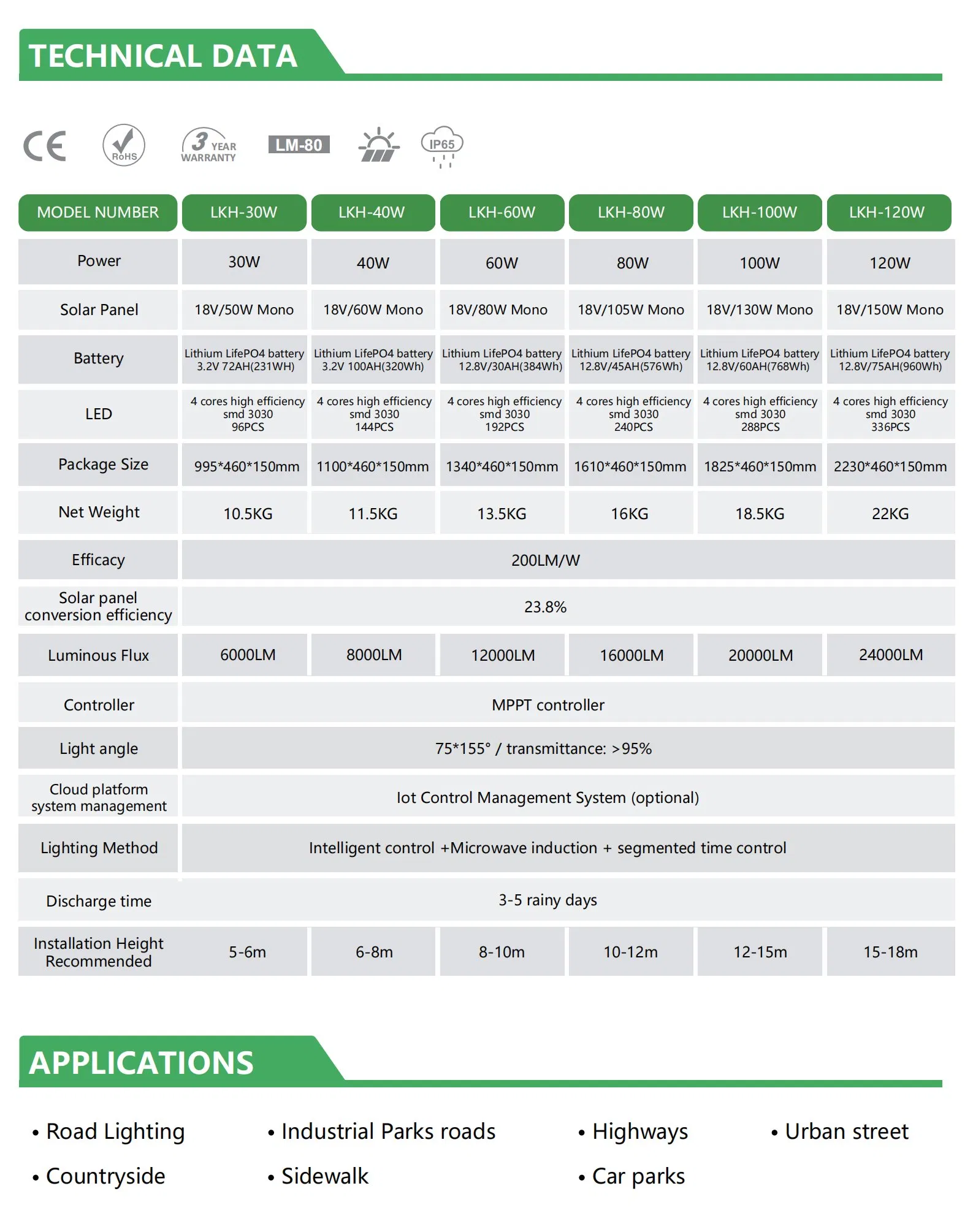

Solar Street Light Specifications Graphic
Specification
Model LKH-30W LKH-40W LKH-60W LKH-80W LKH-100W LKH-120W
Solar panel 18V/50W MONO 18V/60W MONO 18V/80W MONO 18V/105W MONO 18V/130W MONO 18V/150W MONO
Solar panel size 680*398mm 785*398mm 1025*398mm 1298*398mm 1510*398mm 1915*398mm
Product size 828*408*150mm 933*408*150mm 1173*408*150mm 1388*408*150mm 1603*408*150mm 2006*408*150mm
LED Chips SMD3030, 96PCS SMD3030, 144PCS SMD3030, 192PCS SMD3030, 240PCS SMD3030, 288PCS SMD3030, 336PCS
LiFePo4 battery 3.2V,72AH (230.4WH) 3.2V,100AH (320WH) 12.8V,30AH (384WH) 12.8V,45AH (576WH) 12.8V,60AH (768WH) 12.8V,75AH (960WH)
Lamp lumen 6000LM 8000LM 12000LM 16000LM 20000LM 24000LM
Install height 5-6M 6-8M 8-10M 10-12M 12-15M 15-18M
Solar panel
conversion efficiency		 23.80%
Efficacy 200LM/W
Controller MPPT
Material Die-casting aluminum +1060 pure aluminum
Working Mode Intelligent control +Microwave induction + segmented time control
Waterproof IP65
Light angle 75*155° / transmittance: >95%
Cloud platform
system management		 Iot Control Management System (optional)
Work time 3-5 rainy days
Pole diameter 65/82MM
N.W./G.W. 10.5/12kg 11.5/13.5kg 13.5/15.5kg 16/18kg 18.5/21kg 22/25kg
Ctn size 995*460*150mm 1100*460*150mm 1340*460*150mm 1610*460*150mm 1825*460*150mm 2230*460*150mm
Qty/Ctn 1pcs 1pcs 1pcs 1pcs 1pcs 1pcs
20'/40' 400pcs/980pcs 350pcs/880pcs 300pcs/730pcs 230pcs/610pcs 210pcs/530pcs 170pcs/430pcs

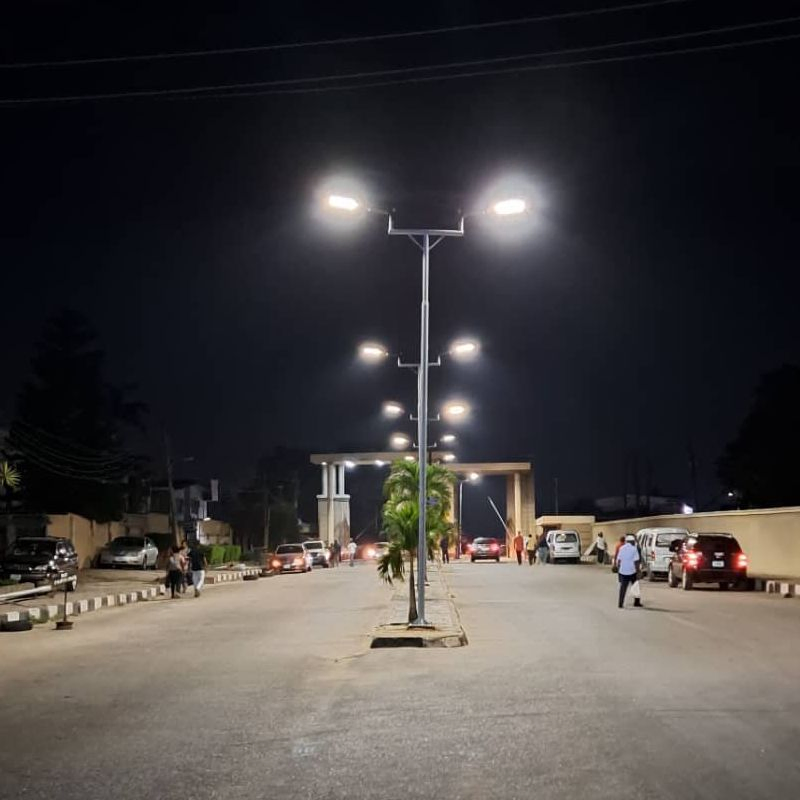

Installation Cases
Installation Case 1

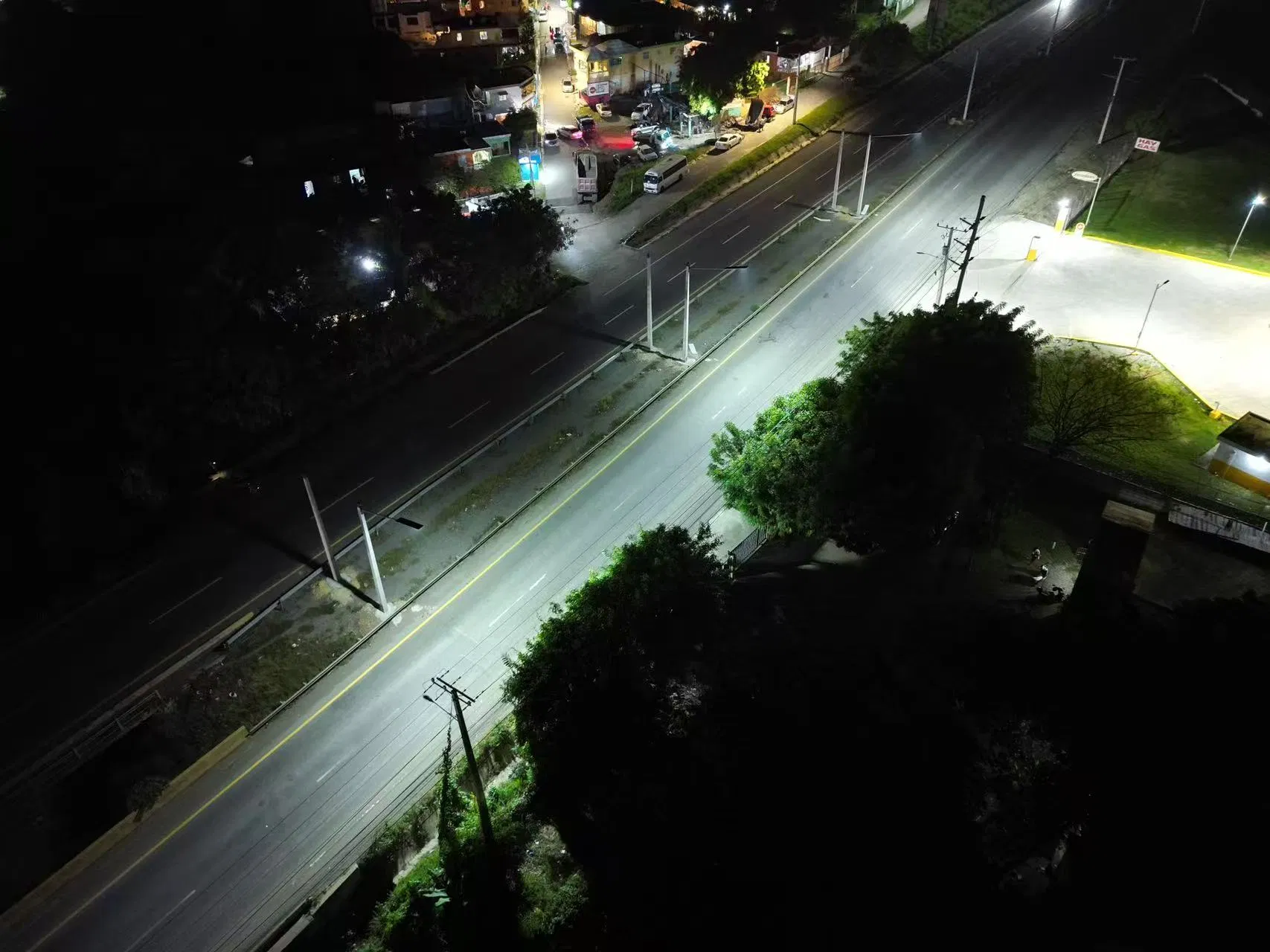

Installation Case 2

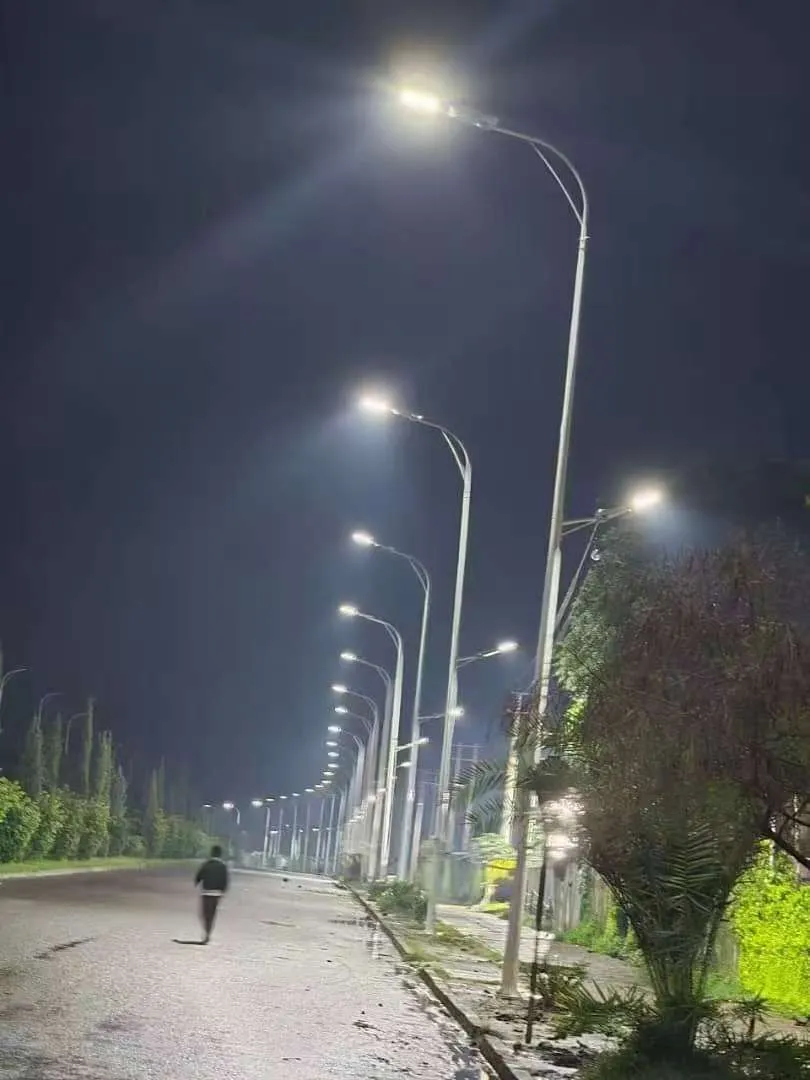

Installation Case 3

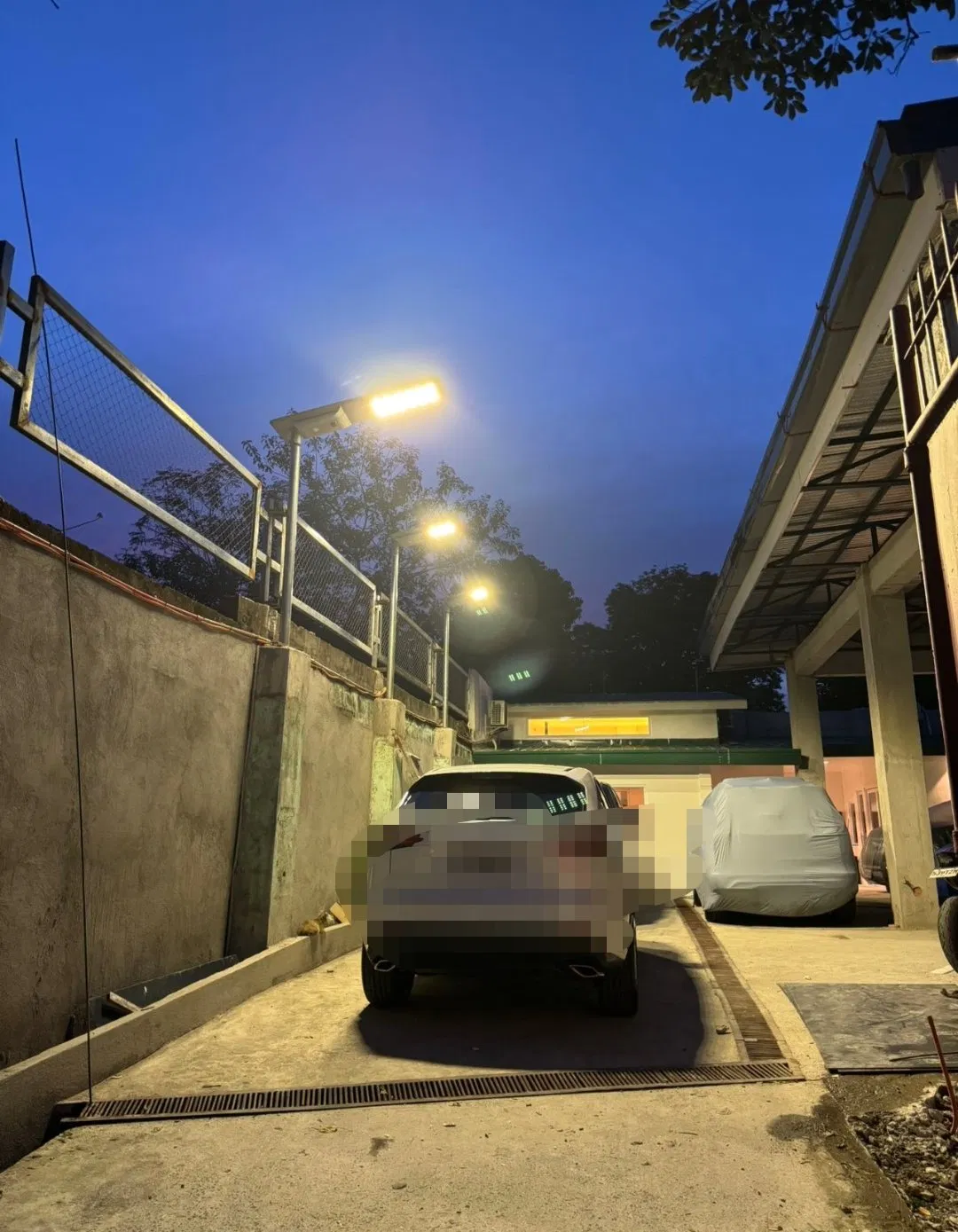

Installation Case 4
Company Profile
Factory Overview 1
Factory Overview 2

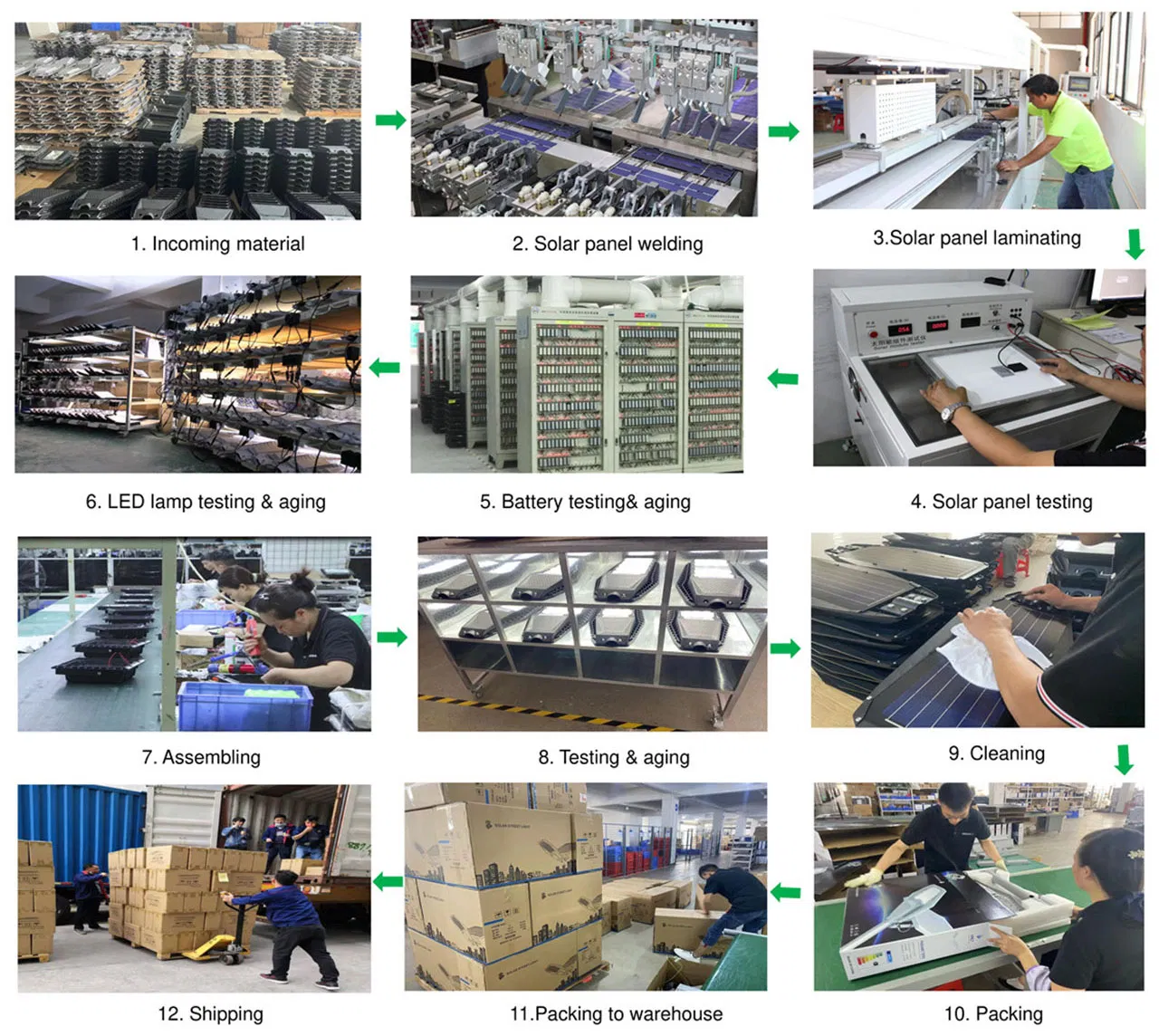

Production Line

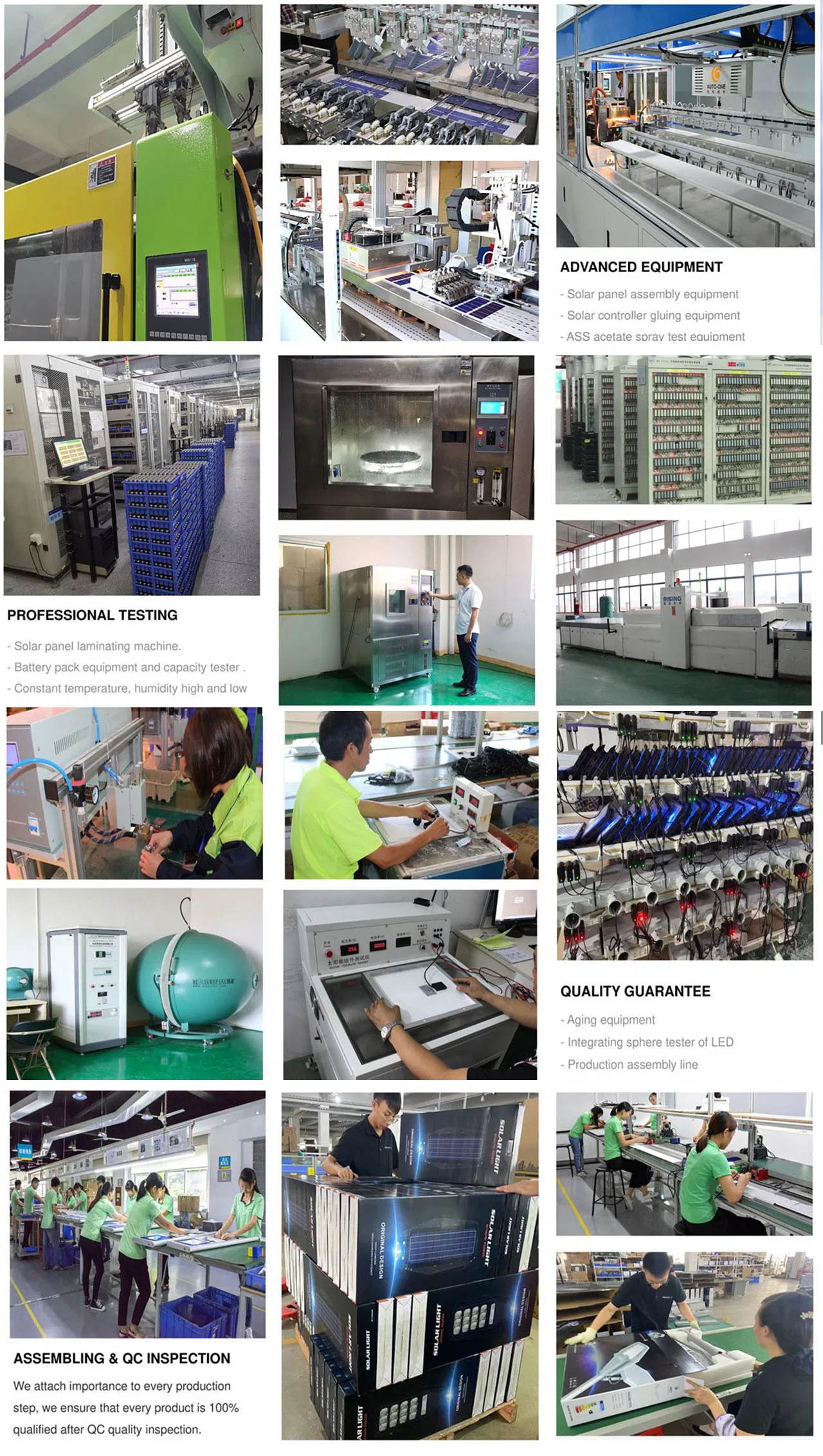

Quality Control
Frequently Asked Questions
Q1 Can I have a sample order for solar light?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2 What about the lead time?
Sample needs 2-5 days, mass production time needs 7-15 days.
Q3 Do you have any MOQ limit for solar light order?
Low MOQ, 1pc for sample checking is available.
Q4 How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx . It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q5 Is it OK to print my logo on solar light product?
Yes, we could print logo on some solar light. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6 Do you offer guarantee for the products?
Yes, we offer 1~3 year warranty depends on the different models.
