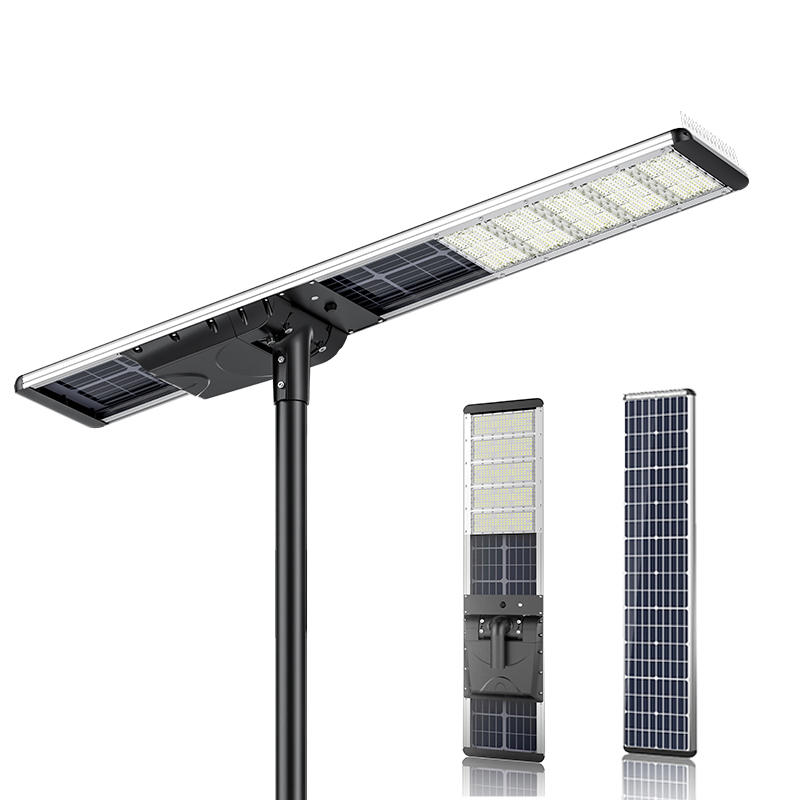

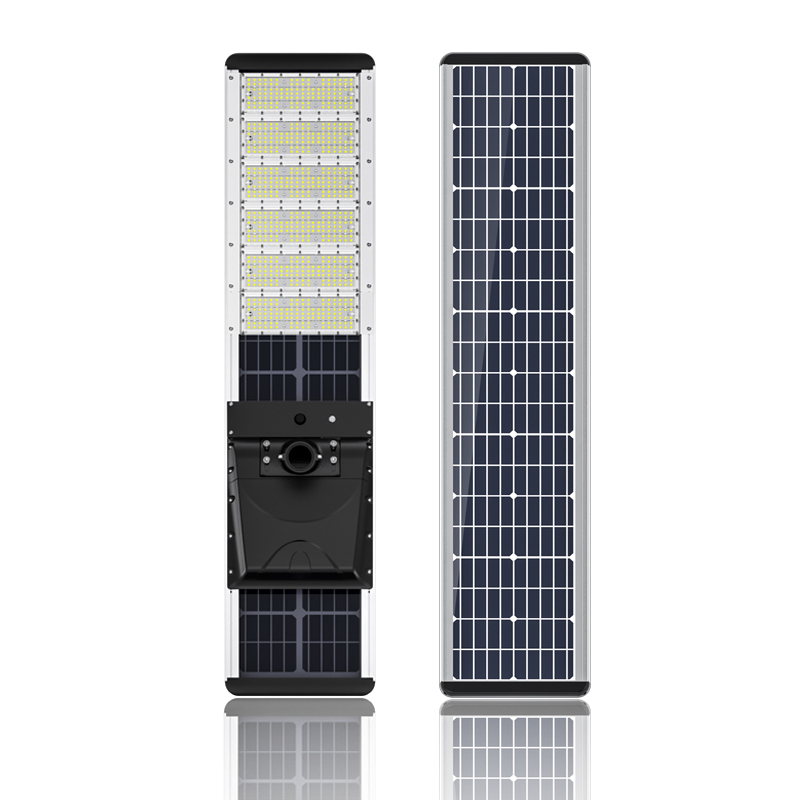

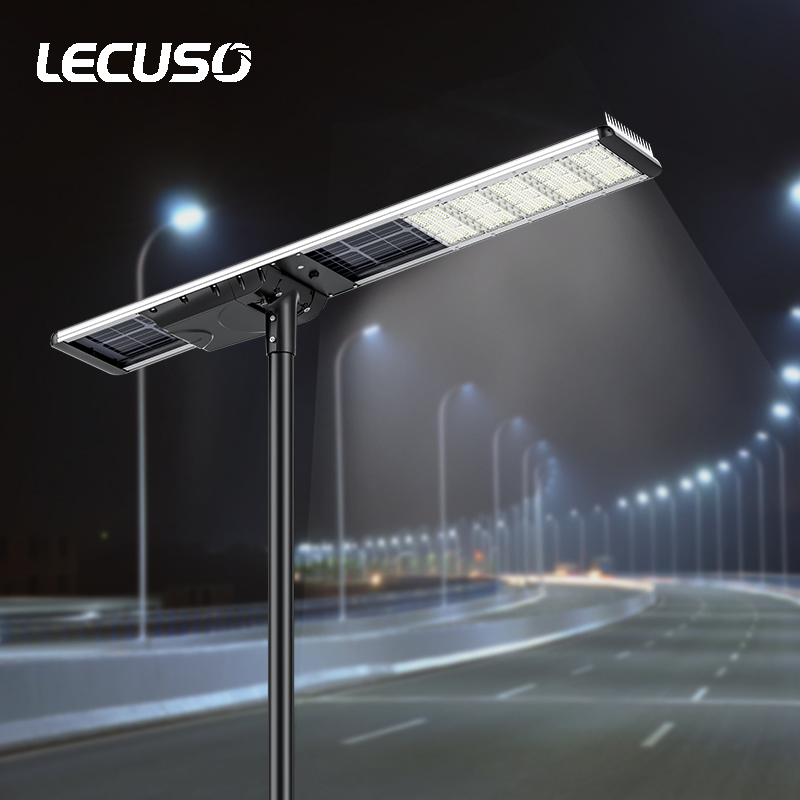

Commercial 120W 150W 180W Solar Street Light Integrated Powered LED 100W MPPT Solar Street Light Controller
Commercial 120W 150W 180W Solar Street Light Integrated Powered LED 100W MPPT Solar Street Light Controller
Commercial 120W 150W 180W Solar Street Light Integrated Powered LED 100W MPPT Solar Street Light Controller
Commercial 120W 150W 180W Solar Street Light Integrated Powered LED 100W MPPT Solar Street Light Controller
Commercial 120W 150W 180W Solar Street Light Integrated Powered LED 100W MPPT Solar Street Light Controller
1 / 5
Commercial 120W 150W 180W Solar Street Light Integrated Powered LED 100W MPPT Solar Street Light Controller
Commercial 120W 150W 180W Solar Street Light Integrated Powered LED 100W MPPT Solar Street Light Controller
Commercial 120W 150W 180W Solar Street Light Integrated Powered LED 100W MPPT Solar Street Light Controller
Commercial 120W 150W 180W Solar Street Light Integrated Powered LED 100W MPPT Solar Street Light Controller
Commercial 120W 150W 180W Solar Street Light Integrated Powered LED 100W MPPT Solar Street Light Controller

Commercial 120W 150W 180W Solar Street Light Integrated Powered LED 100W MPPT Solar Street Light Controller

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

  • Overview
  • Product Parameters
  • Product Description
  • Our Projects
  • Company Profile
  • Certifications
  • Packaging & Shipping
  • FAQ

💡 Basic Info.

Model NO. LCS-XY-08
Light Source LED Lamp
Lamp Body Material Aluminum
Light Type Solar
Color Temperature Cool White
Power 20W-150W
Technics Painted Matte
Cell Type LiFePO4 Battery
Charging Time (H) 6
Usage Street
IP Rating IP65
Certification CE, RoHS
Voltage 12/24V
With Light Source With Light Source
Transport Package Carton
Origin China
HS Code 940541
Production Capacity 50000PCS/Month

🚚 Packaging & Delivery

Package Size 190.00cm * 60.00cm * 20.00cm
Package Gross Weight 20.000kg

📋 Product Parameters

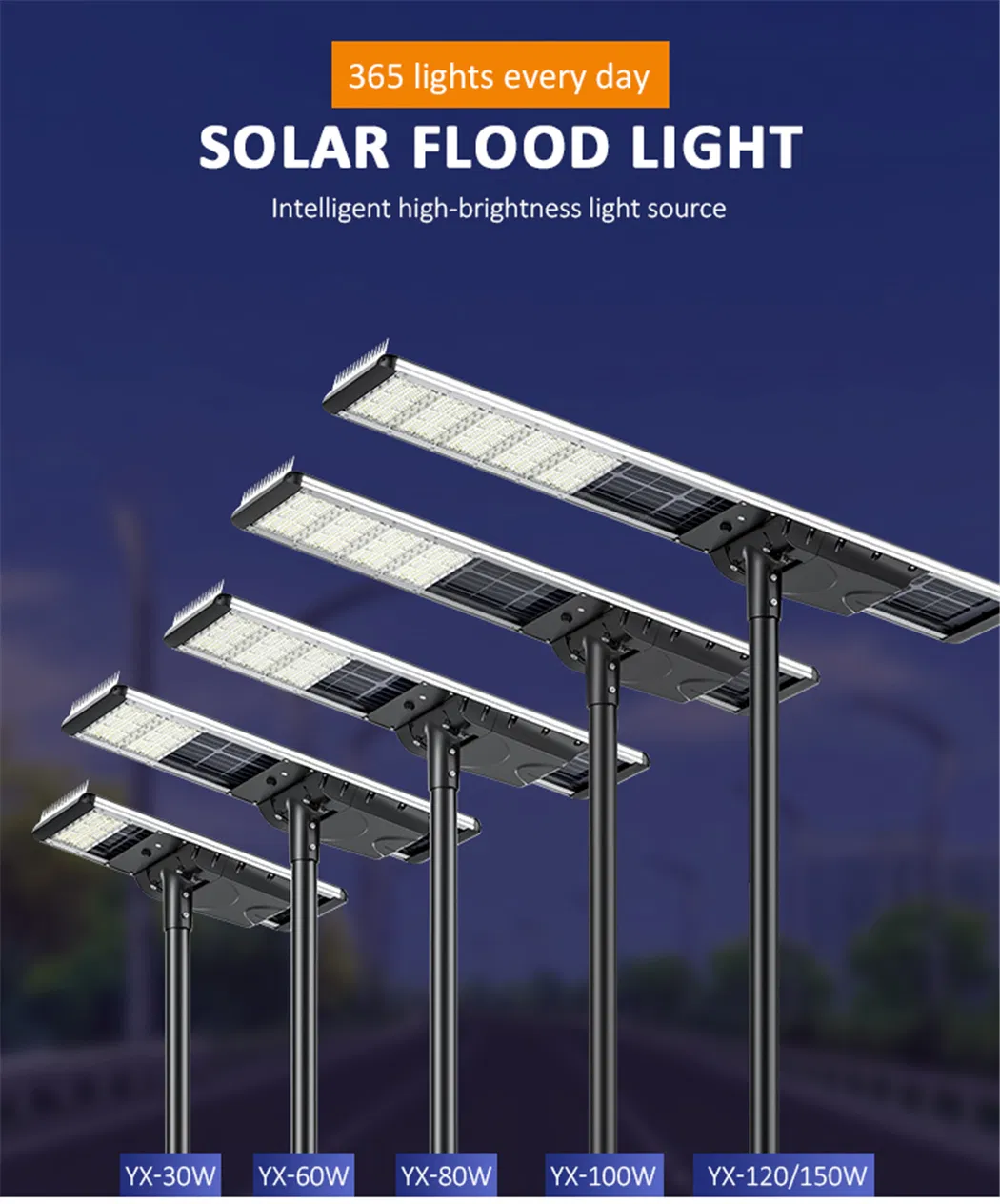

Integrated Powered LED Solar Street Light Parameters
Specifications Of DY Series LED Solar Street Light
Power 30w 60w 80w 100w 120w 150w
3030 LED chip 120PCS 240PCS 360PCS 480PCS 600PCS 720PCS
Luminous Flux 6600LM 13200LM 17600LM 22000LM 26400LM 33000LM
LiFePO4 Lithium Battery 12.8v 18AH 12.8v 30AH 12.8V 42AH 12.8V 54AH 12.8V 60AH 25.6V 36AH
Mono Solar Panel 18V 60W 18V 80W 18V 100W 18V 120W 18V 150W 18v 160w
Install height 4-5M 6-7M 7-8M 8-10M 9-12M 9-12M
Solar charging time 5-6 hours
Material Aluminum Alloy+ PMMA
Lighting Mode motion sensor/timer/remote control/ODM
CRI >80
Rated Life 80000h

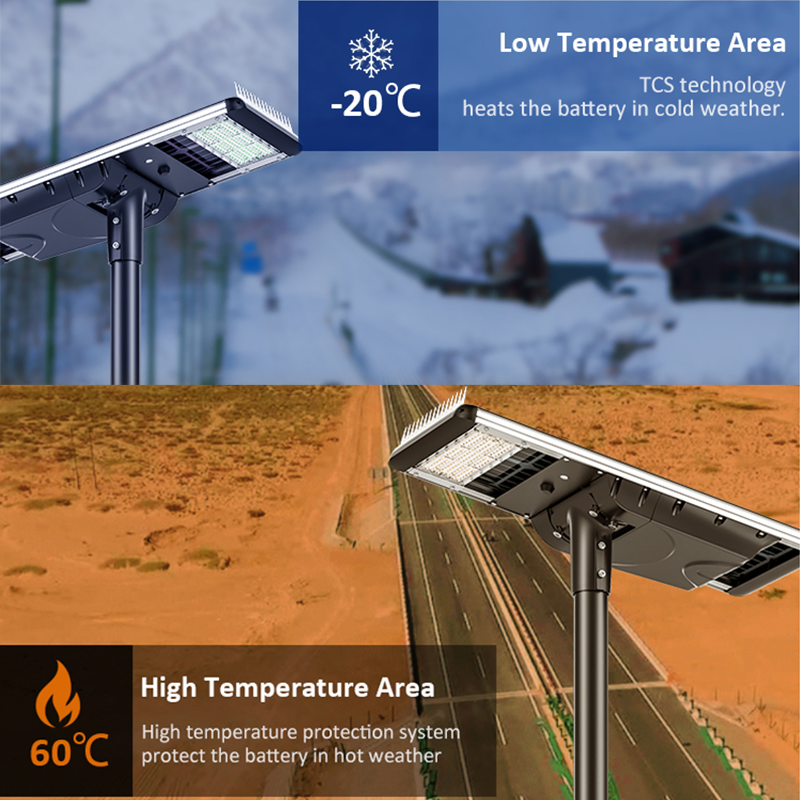

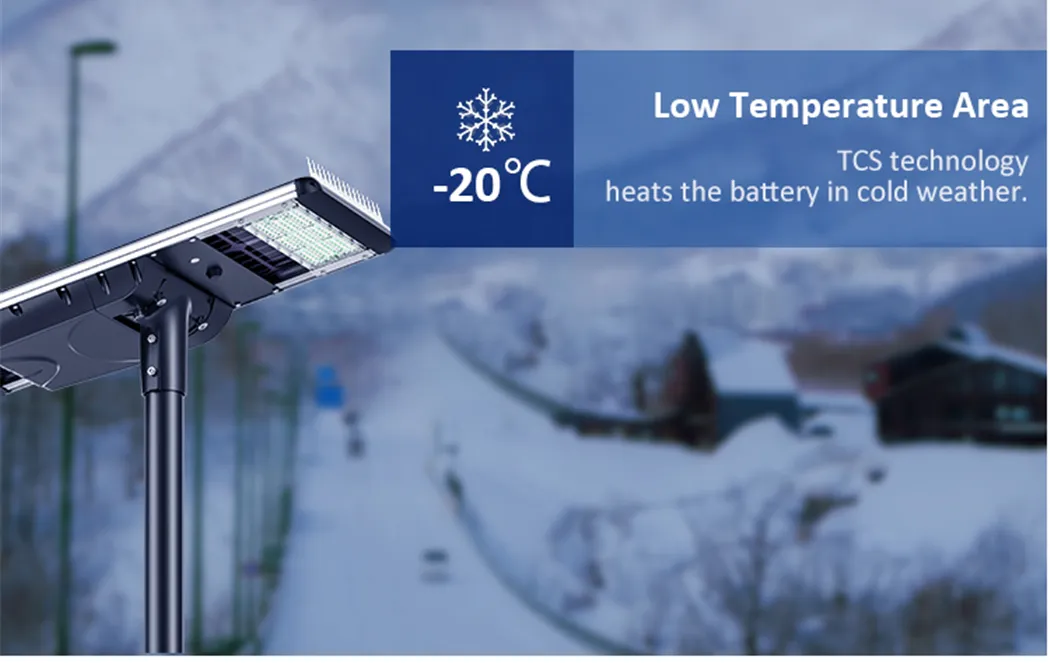

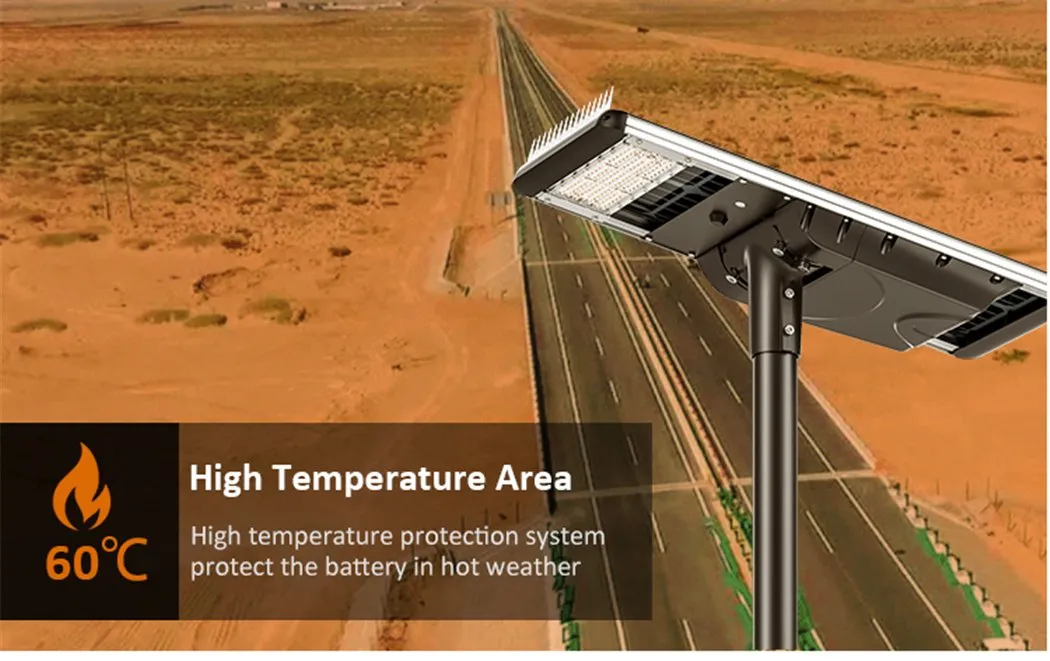

Working Temperature -25~+60°C
Install 60mm-82mm
Application Highway, street, road, garden, outdoor, etc.
Warranty 3/5 Years

⚙️ Product Description

★ Key Advantages
  • High strength die-cast aluminum housing: Features a wind resistance level of 16.
  • Famous brand led chips: Uses 3030 led chips with a 150° wide lighting angle. The energy-saving design reduces power via time-sharing adjustments at night to extend performance.

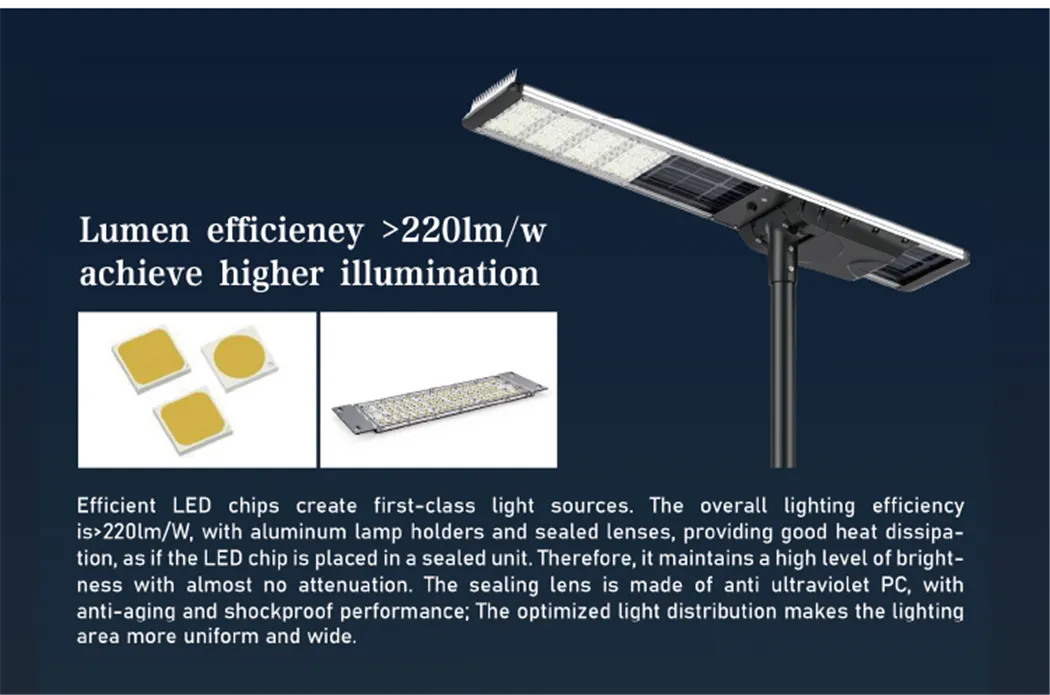

  • High luminous efficiency: Employs chips of ≥220LM or more to save over 75% of energy compared to traditional high-pressure sodium lamps.

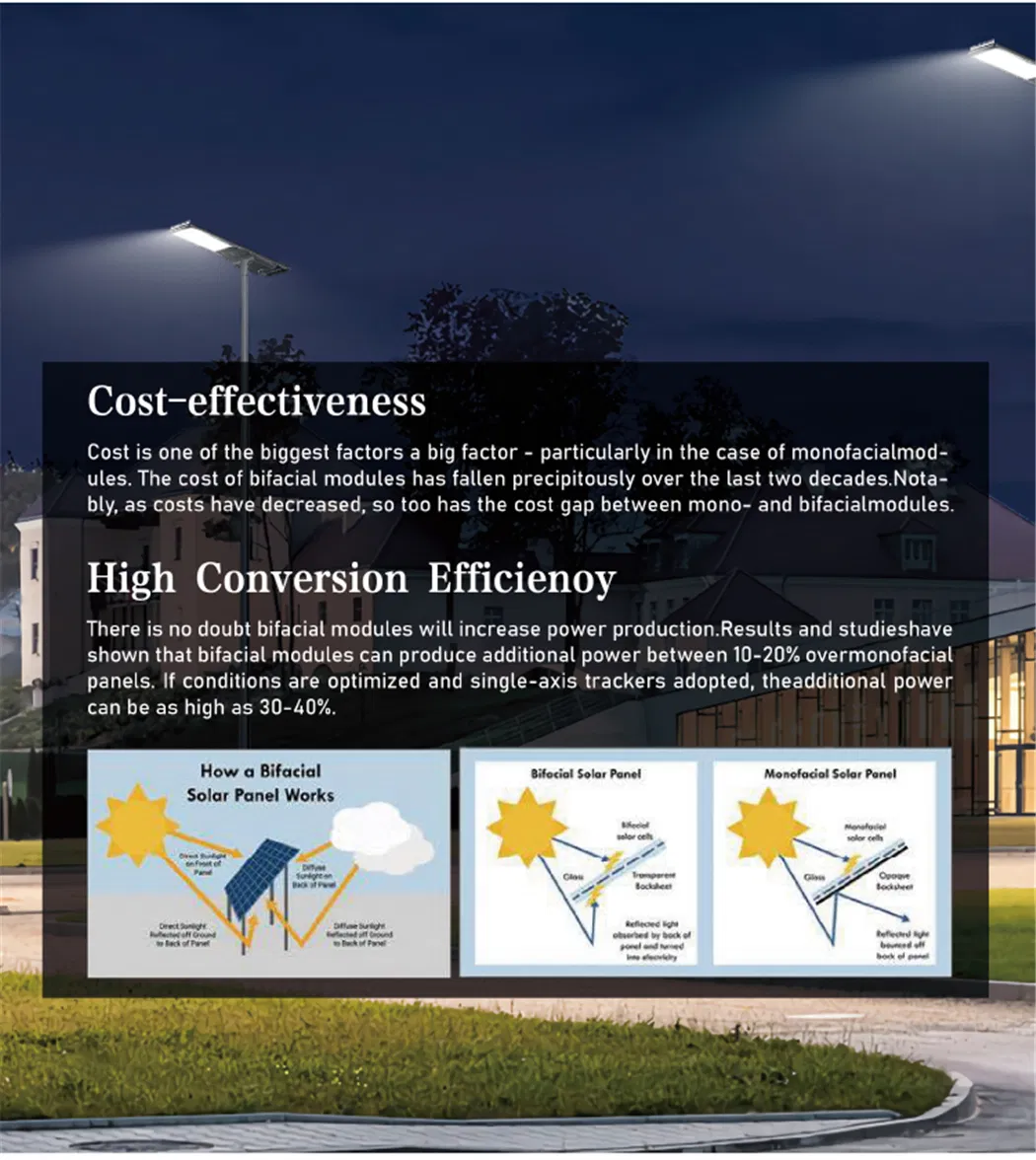

  • Bifacial solar panels: Boosts power generation efficiency by over 30%. Enclosure features an enlarged module design to achieve high light efficiency for single modules.

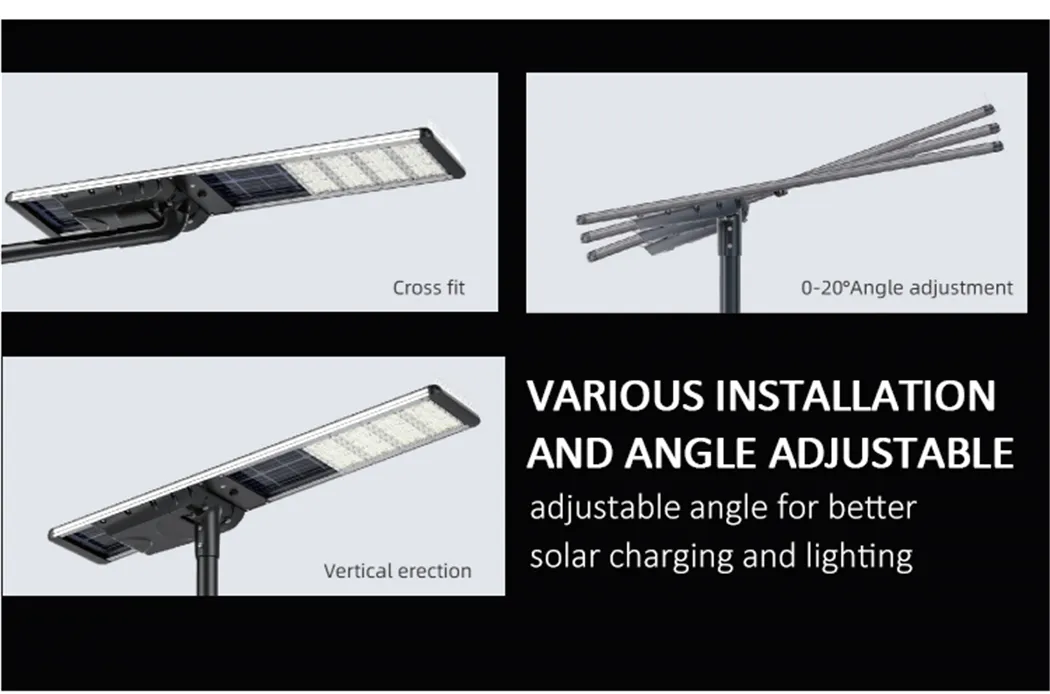

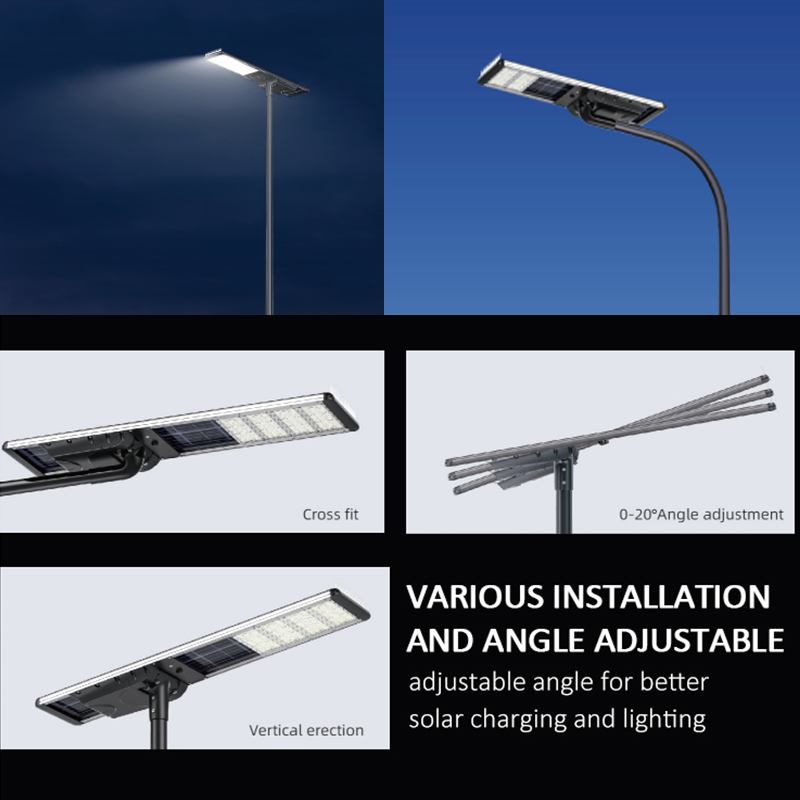

  • Multiple installation methods: Supports 0-20° adjustable angles.
  • Built-in motion sensor: Features an integrated identification chip inside the controller, which automatically adjusts working modes during long periods of cloudy weather. Supports 3-5 nights of operation after a full charge and includes 3 flexible lighting modes via remote control.
  • Easy installation: Streamlined all-in-one solar street light configuration functions automatically with a simple switch or remote control setup, eliminating complex wiring and reducing transit costs.

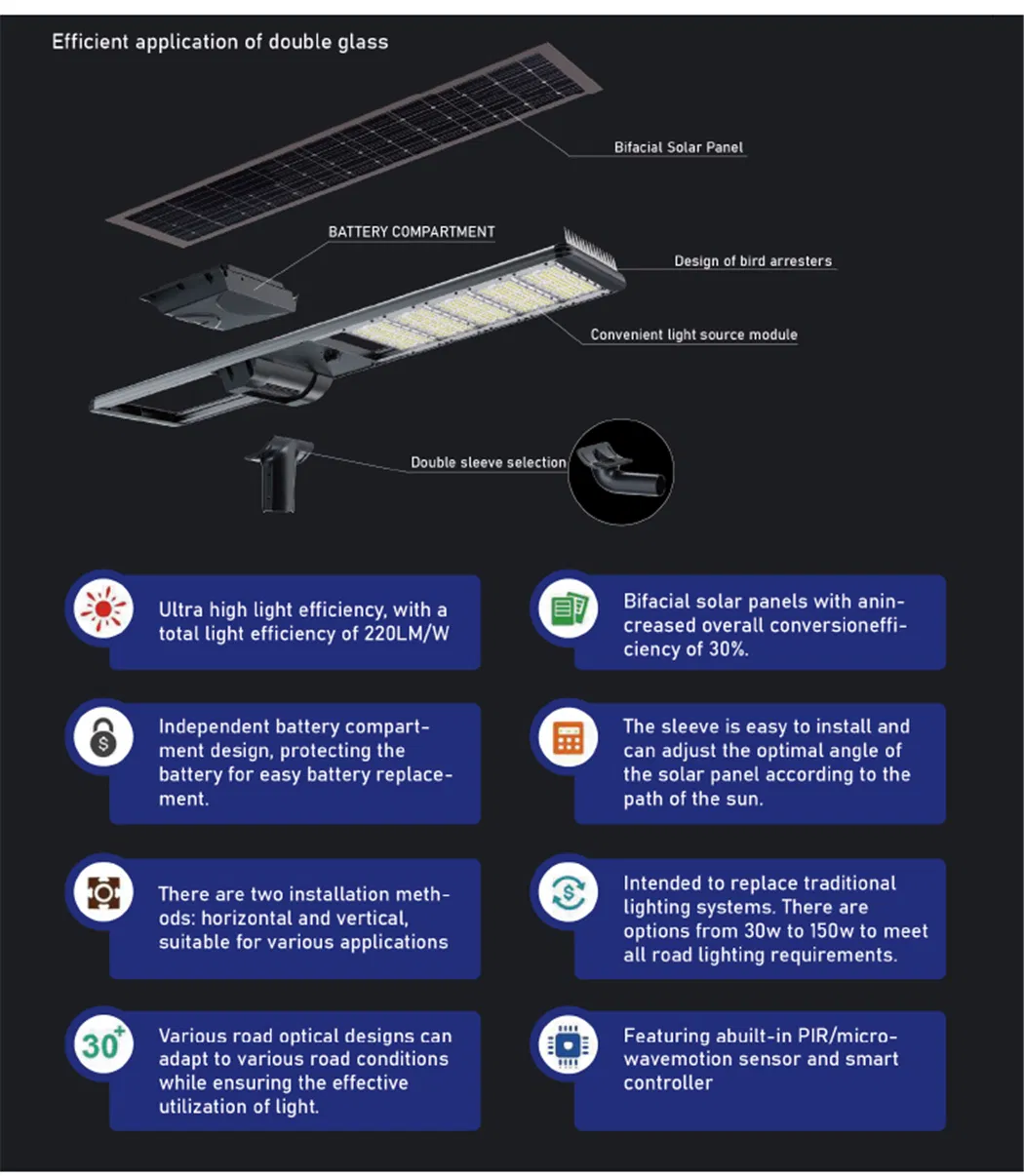

Solar Street Light Description Section Header Solar Street Light Structure details Solar Street Light Performance Header

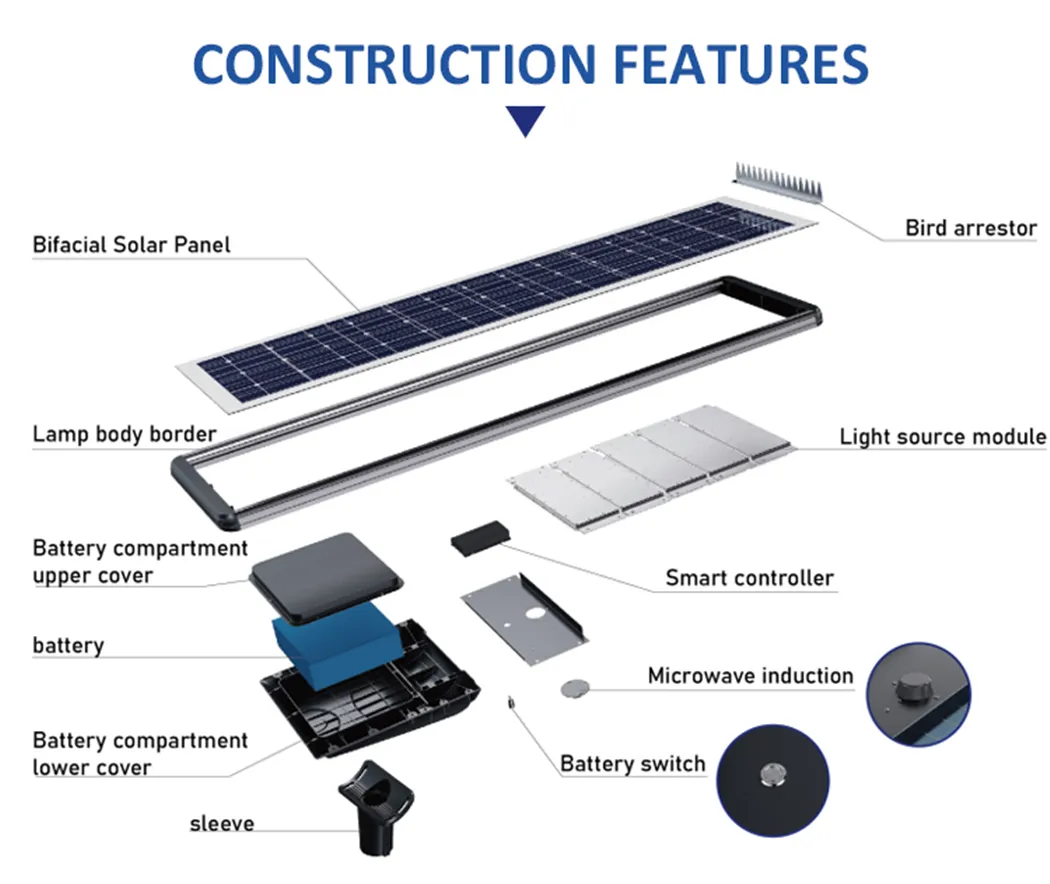

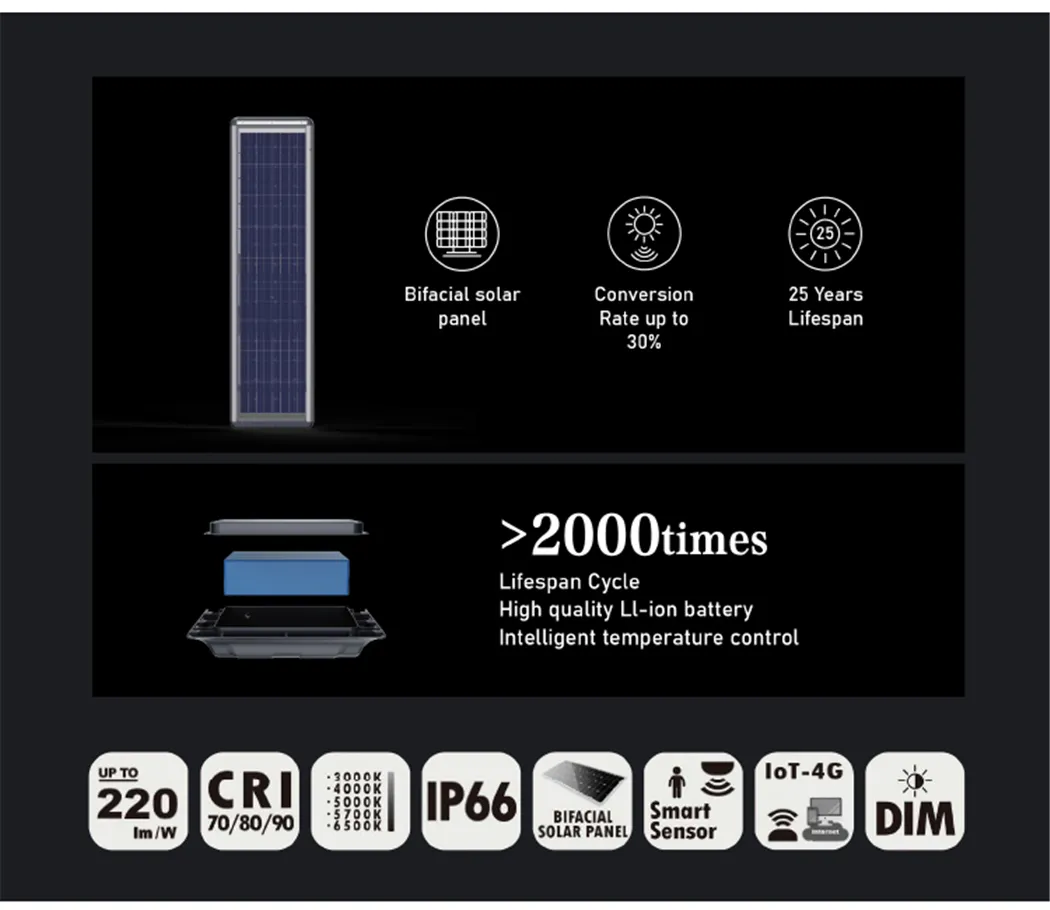

Solar Street Light Panel Details Solar Street Light Battery Details
Solar Street Light Controller details

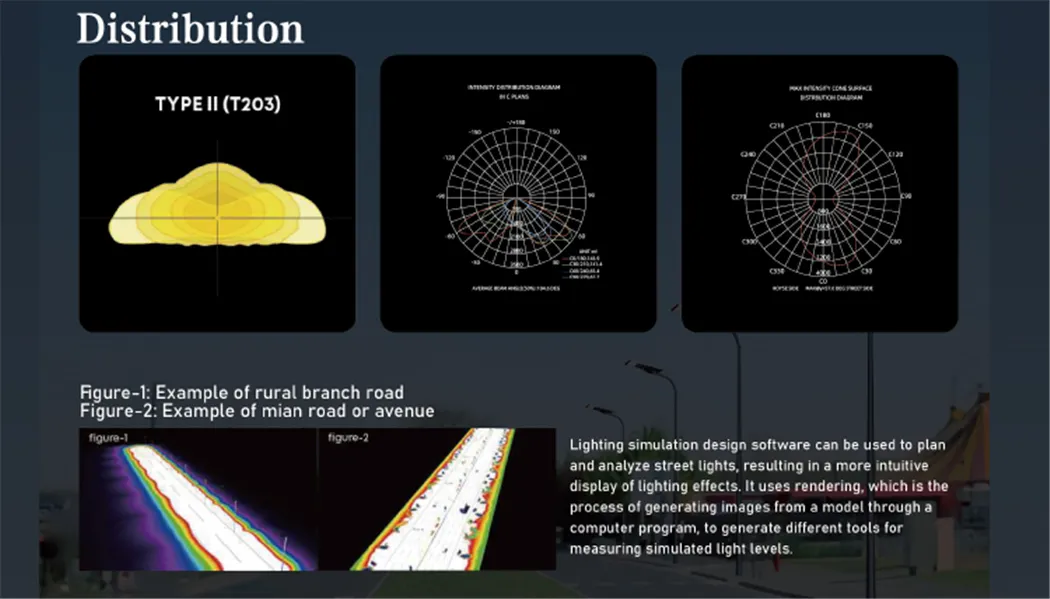

Solar Street Light Motion Sensor Features Solar Street Light Remote Control Option
Solar Street Light Housing Design Header
Solar Street Light Housing material details Solar Street Light Assembly details
Solar Street Light Angle Adjustment Header
Solar Street Light Angle Bracket options Solar Street Light Mounting installation

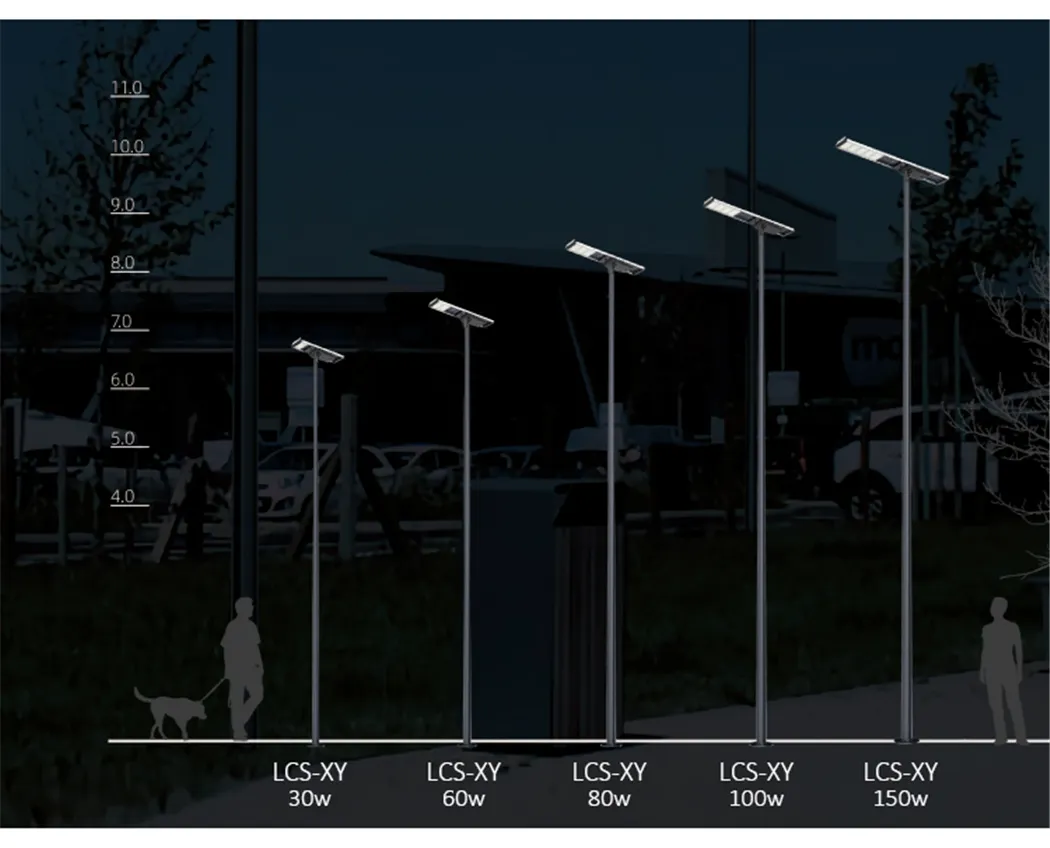

Solar Street Light Specifications overview Solar Street Light Dimension details Solar Street Light Overview End

🏢 Our Projects

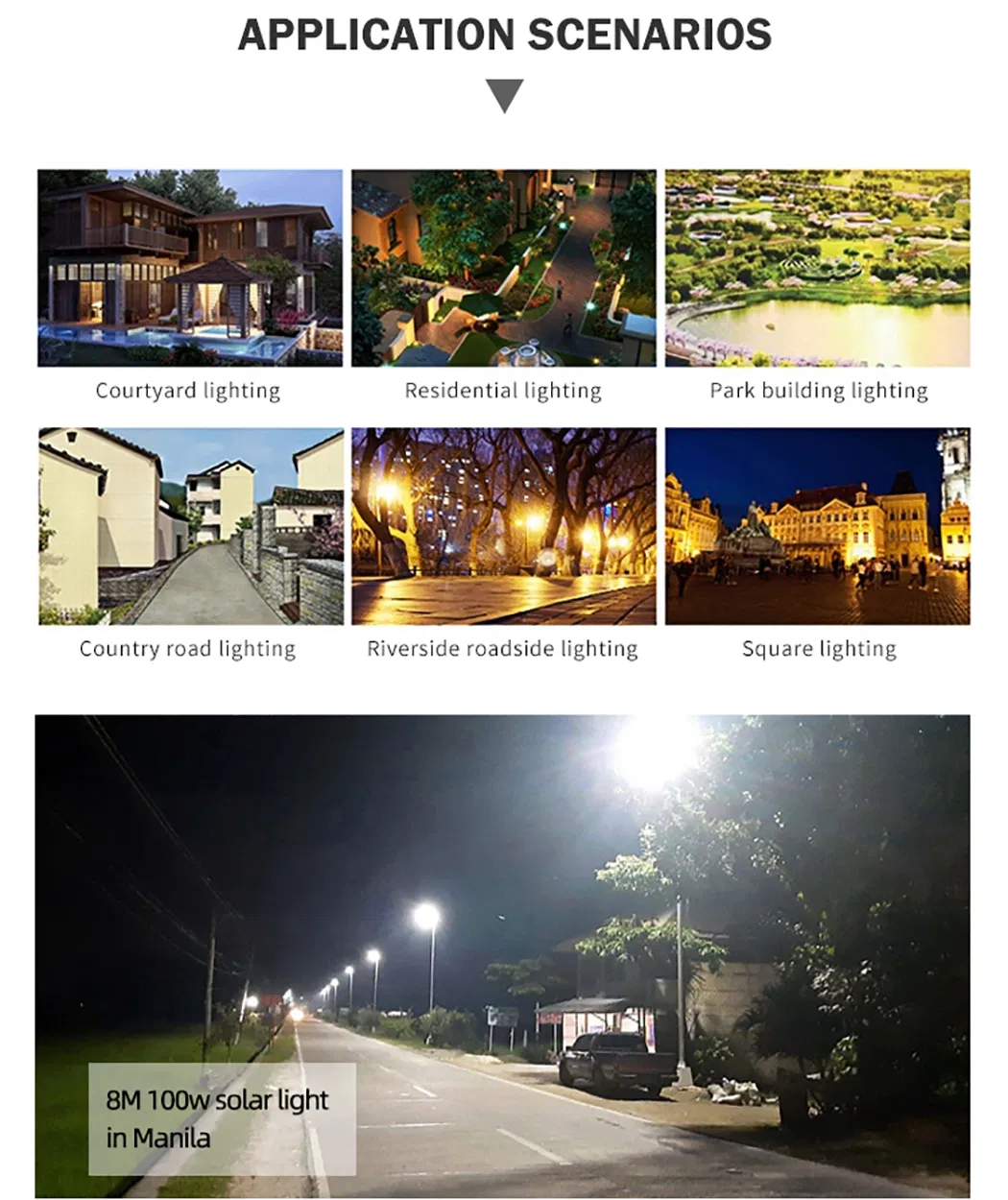

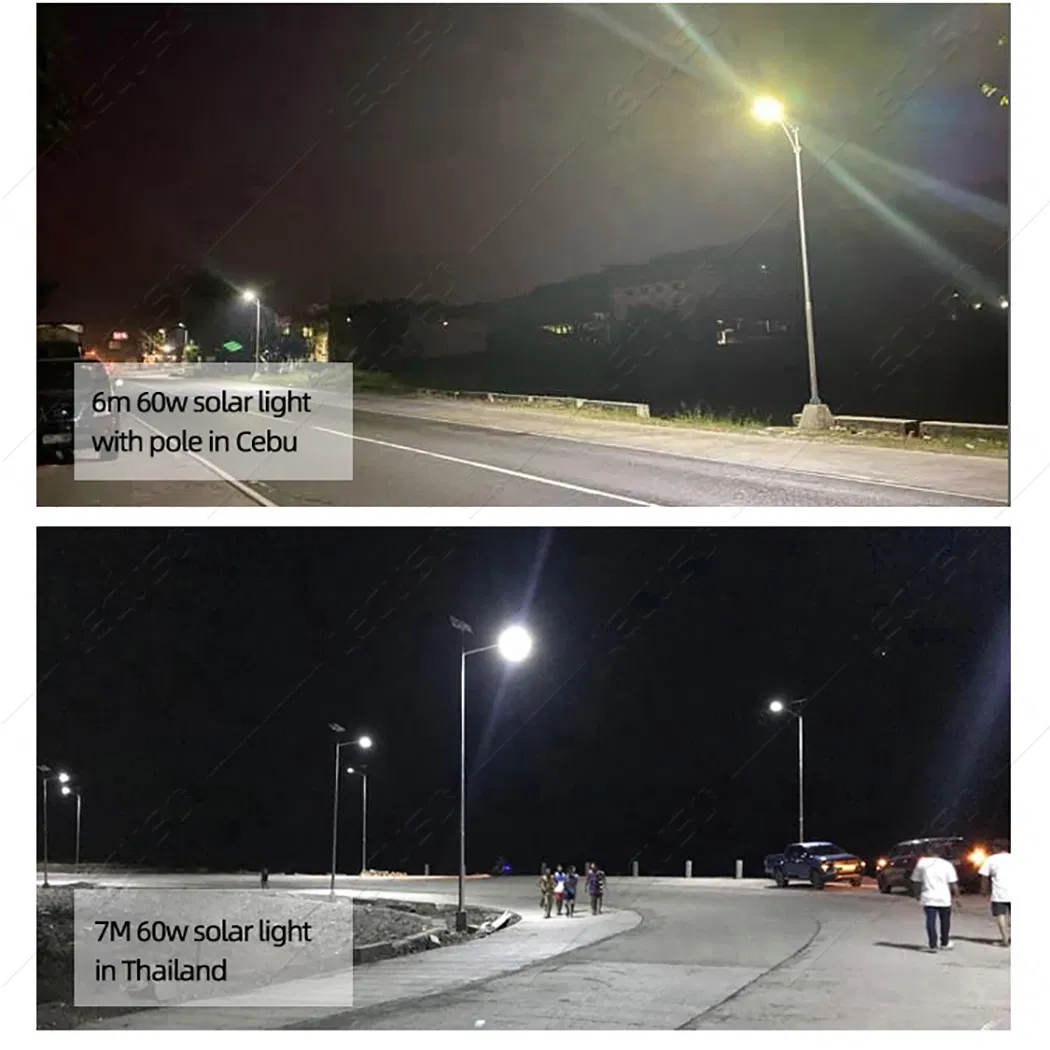

Solar Street Light Outdoor Projects Case 1 Solar Street Light Outdoor Projects Case 2

🛡️ Company Profile

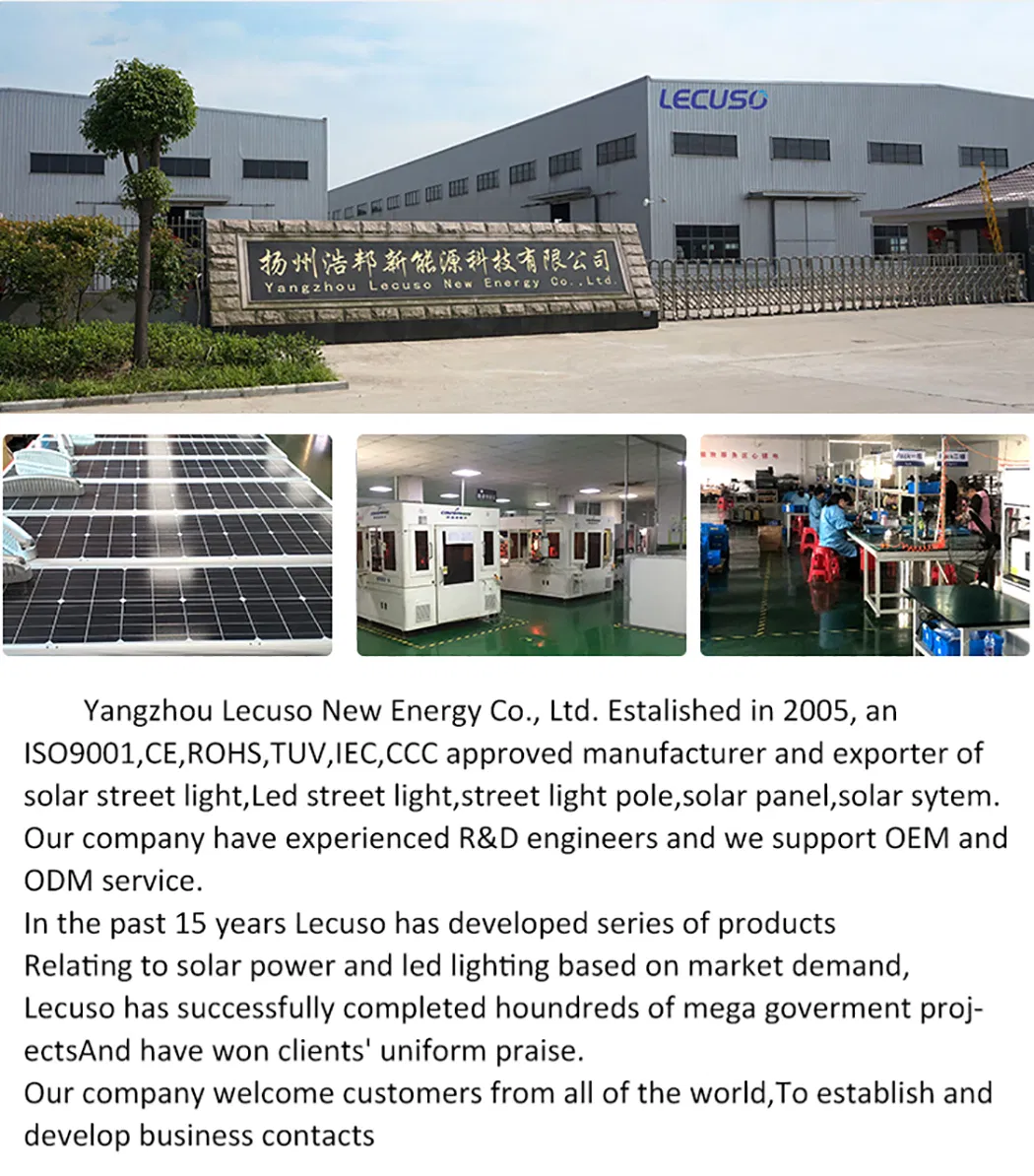

Factory Workshop Overview 1 Factory Workshop Overview 2

🏅 Certifications

Solar Street Light CE RoHS Certifications

📦 Packaging & Shipping

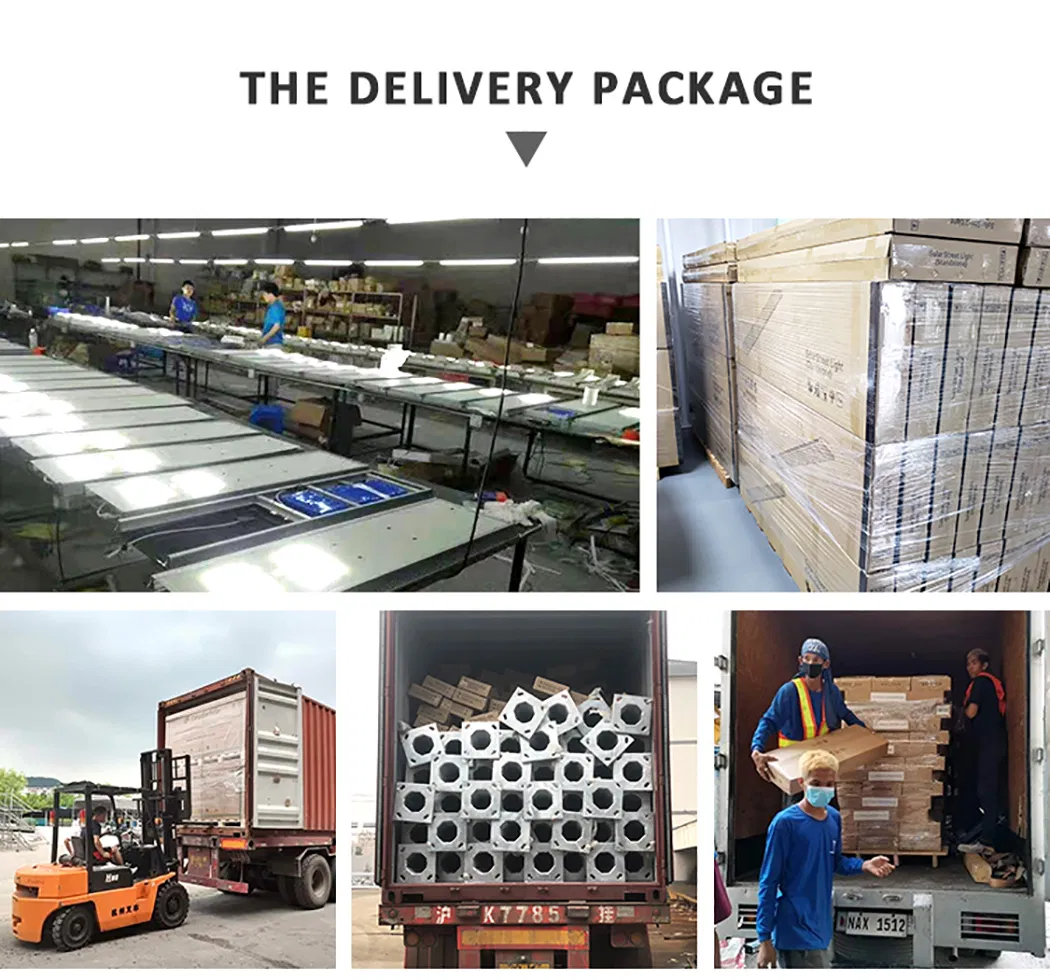

Solar Street Light Packaging and Loading details

❓ Frequently Asked Questions (FAQ)

What is the charging time for the solar street lights?
The solar charging time is approximately 5 to 6 hours under optimal sunlight conditions.
What type of battery is used in these solar street lights?
These lights utilize high-capacity LiFePO4 Lithium Batteries, which are designed for long-term reliability and stable power output.
What lighting modes are supported?
The lighting modes supported are motion sensor, timer, remote control, and ODM modes. A built-in controller chip automatically manages the working mode during prolonged periods of cloudy weather.
What is the working temperature range?
The solar street lights are engineered to operate effectively across a broad temperature range of -25°C to +60°C.
What is the IP rating and wind resistance level?
The system has a dust and water protection rating of IP65, and the high-strength die-cast aluminum housing features a wind resistance level of 16.
How long is the product warranty?
We offer a standard product warranty ranging from 3 to 5 years depending on the project requirements.
