Product Description

Solar Street Light LED 80W

10m Single Arm Street Light Pole - High Efficiency LED System

📊

Technical Specifications

System Configuration 5M-10M Height options with 30W-80W LED outputs
Lighting Performance 11-12 Hours nightly, 3-4 consecutive cloudy/rainy days
Solar Panel 120W*2PCs for 36V, Mono Crystalline Silicon, 17% Efficiency (20-25 years lifespan)
Gelled Battery 150Ah/12V*2PCs, Deep cycle, Maintenance-free (5-8 years lifespan)
Controller 10A/24V Intelligent PWM/MPPT, Automatic light and time control
LED Light Source 80W High Power LED, 140LM/W, 6500K, IP65 protection
Steel Pole 10M Height, Hot-Dip Galvanized, Wind resistance ≥150KM/H
💡

1. LED Material Description

  • Lamp Body: High-Pressure Die-Casting Aluminum, Corrosion Resistant.
  • Surface Treatment: Application with Polyester substance.
  • Reflector: Made of High Purity Aluminum.
  • Cover: High Strength and High Transparent Toughened Glass.
  • Fasteners: Stainless Steel bolts and screws.
  • IP Rating: IP67 Waterproof and Dustproof.

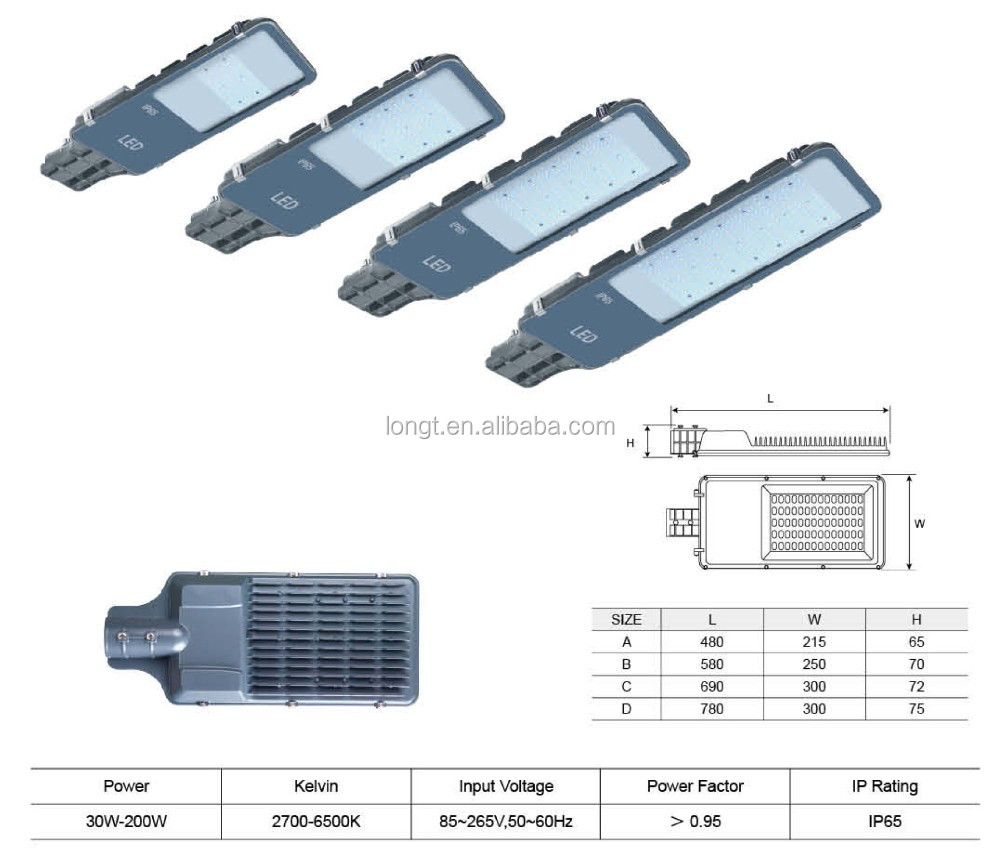

LED Lamp Detail
☀️

2. Solar Panel & Battery

Solar Panel: High efficiency Mono/Poly cells with Aluminum Frame and Tempered Glass. Warranty ensures 90% power output at 10 years and 80% at 25 years.

Solar Gel Battery: Designed for >8 years life span. Capable of bearing deep discharge and shock; maintenance-free and environmentally friendly.

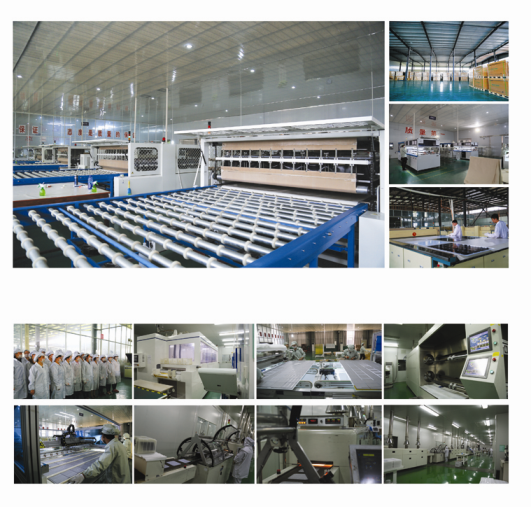

Solar Panel and Battery
🔌

3. Intelligent Controller & Protection

  • Protection Grade: IP68 effective waterproof performance.
  • Charging Type: PWM for high sun areas; MPPT for low sun conditions (e.g., winter).
  • Control: Single and double light output control; Dimmable & Human Sensor available.
  • Status: Integrated LED status indicators.
📦

4. Logistics & Installation

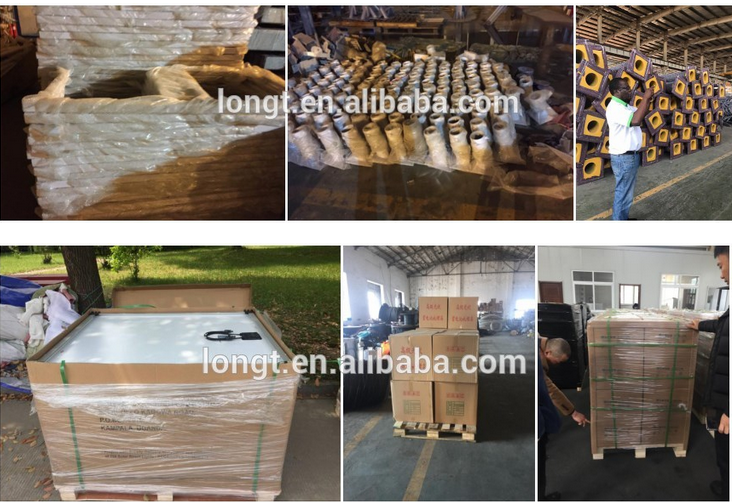

Packing System:

Packing

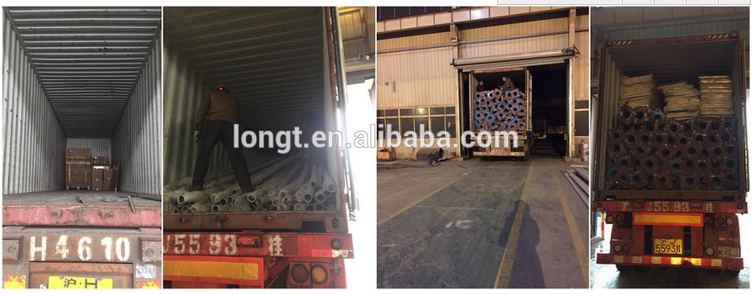

Loading Process:

Loading

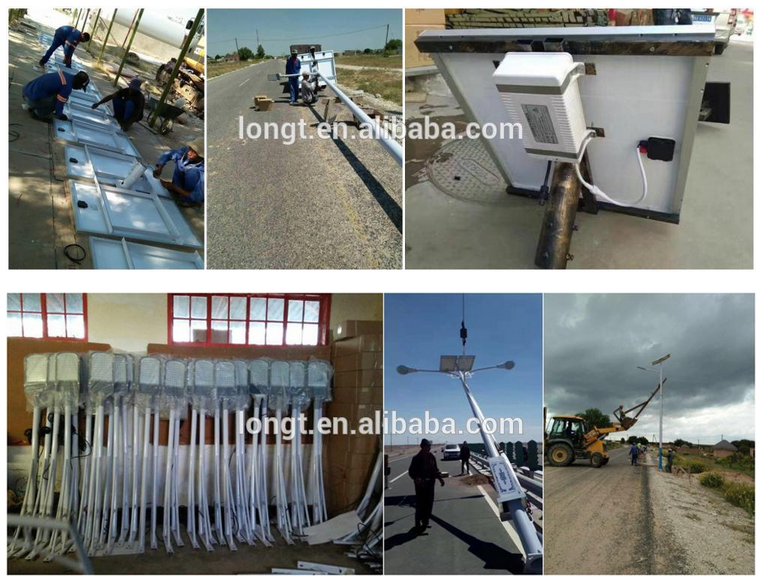

Installation Guide:

Installing
❓

Frequently Asked Questions

Q1 How many cycles can your battery handle?
At 50% discharging depth, it can be cycled for 1,200 times. In floating charging/discharging status, it can reach 5,000 to 6,000 cycles.
Q2 How do I choose between 12V and 24V systems?
Systems can be designed for 12V or 24V for solar street lights, or 220V-380V for traditional street light setups depending on the power requirements.
Q3 What is the main difference between mono and poly solar panels?
The primary differences are the production process and cost. Polysilicon is an older, more mature technology, while Monosilicon often offers higher efficiency.
Q4 Can the light intensity be programmed by time?
Yes, our solar charge controller features dual time control. You can divide the lighting time (e.g., 6 hours at full power and 6 hours at half power).
Q5 What is the expected lifespan of the core components?
Solar panels last 20-25 years, the LED source exceeds 80,000 hours, the pole lasts over 20 years, and the gel battery typically lasts 5-8 years.
Q6 Is the system protected against harsh weather?
Yes, the components feature high IP ratings (IP65 to IP68) for dust and water resistance, and the poles are designed to withstand winds up to 150KM/H.
