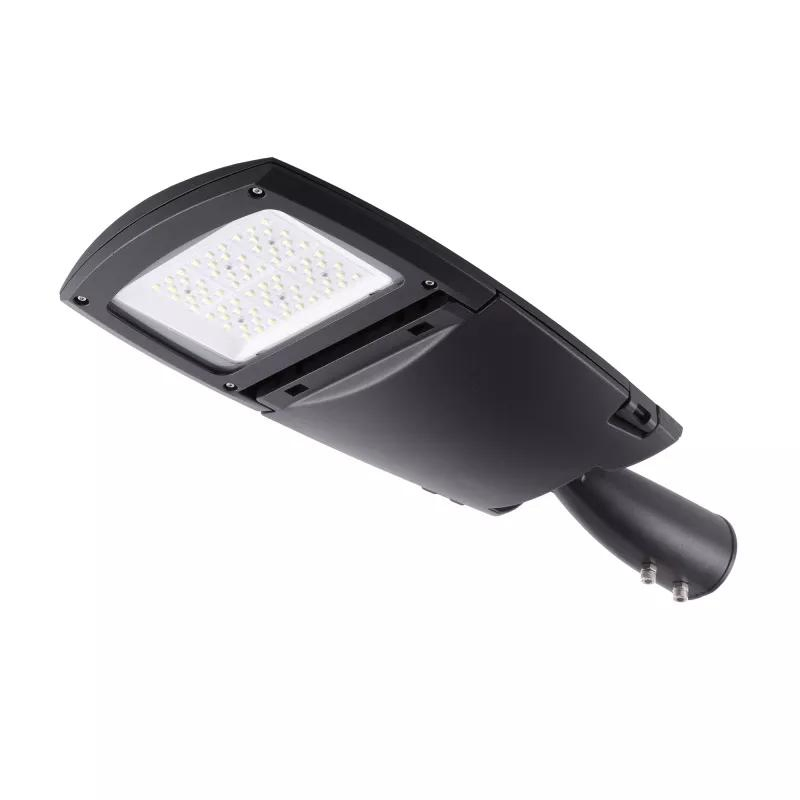

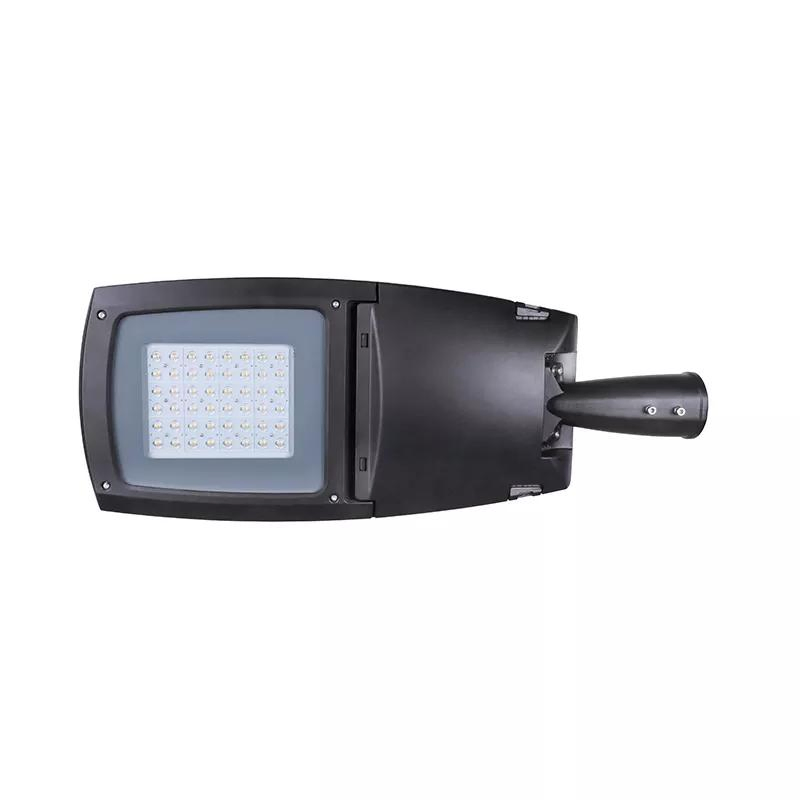

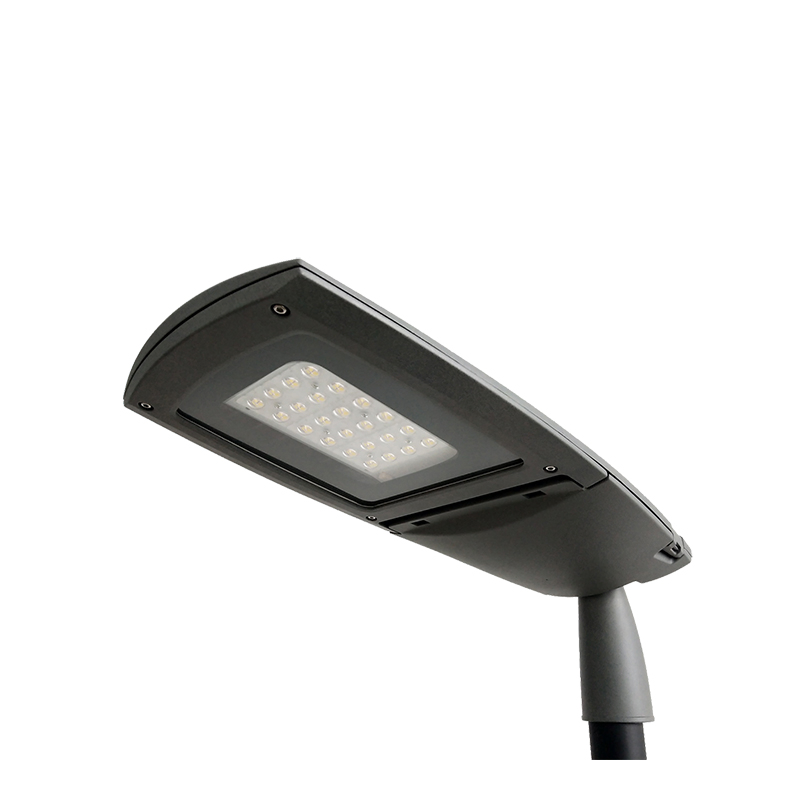

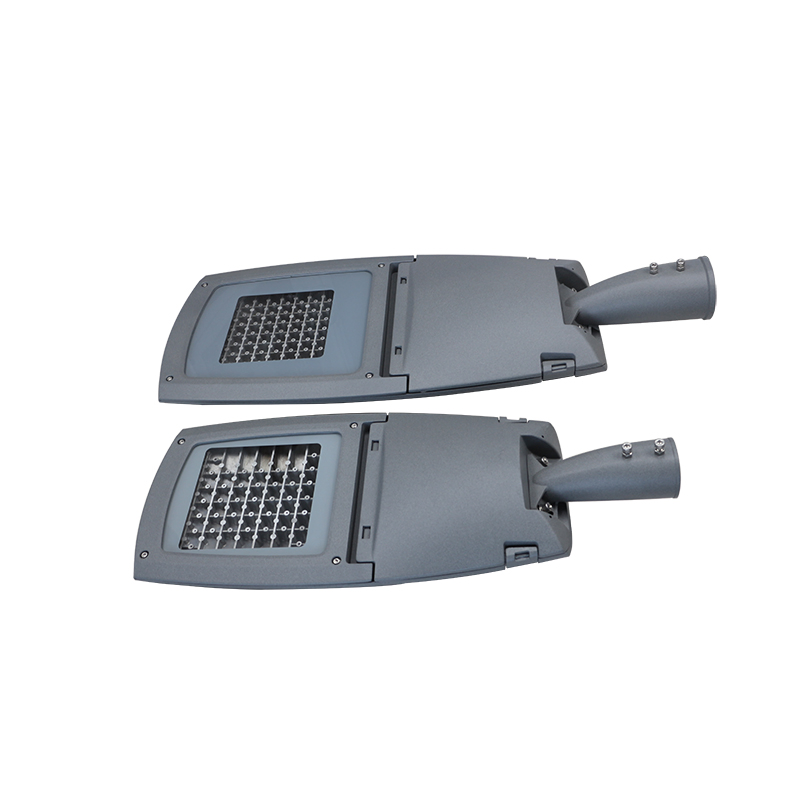

This series is a high-performance street lighting available in three sizes.
The luminaire is manufactured from high pressure die-casting aluminum.
It shall have a LED efficiency up to 130 lm/w and will be capable of producing up to 26000 luminaire lumens at 4000K, finished in Grey or Black as standard.
IP66 CE ROHS
| Product Code | YASL-14-40 | YASL-14-80 | YASL-14-120 |
|---|---|---|---|
| Input Wattage | 60W | 120W | 200W |
| Color Temperature | 2700~6500K | 2700~6500K | 2700~6500K |
| Luminous Flux | 7800-9000lm | 15600-18000lm | 26000-30000lm |
| Input Voltage | AC90~305V | AC90~305V | AC90~305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color Rendering Index | Ra≥70 | Ra≥70 | Ra≥70 |
| Working Temperature | -40~50ºC | -40~50ºC | -40~50ºC |
| Working Humidity | 20%~90%RH | 20%~90%RH | 20%~90%RH |
| LED Lifetime | 50000h | 50000h | 50000h |
| Protection Grade | IP66 | IP66 | IP66 |
| Protection Level | IK08/09/10 | IK08/09/10 | IK08/09/10 |

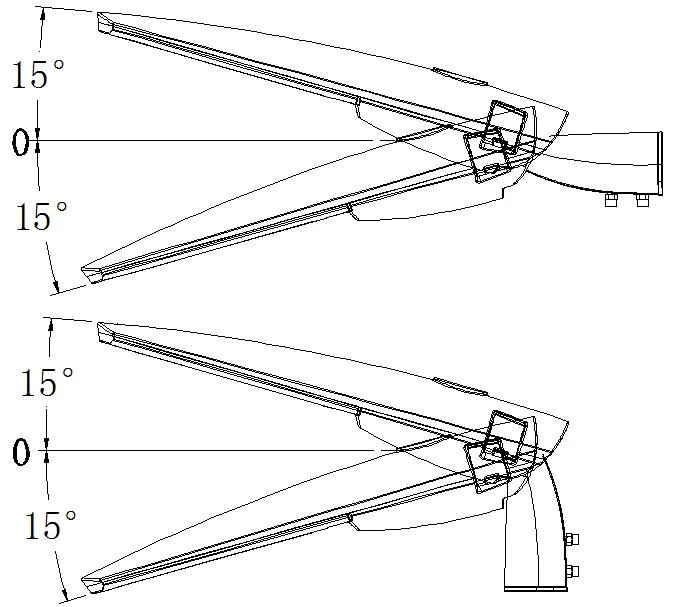

| Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ60/70mm |
| Installation Height | 4-6m | 6-12m | 10-14m |
| Net Weight | 4.6kgs | 5.4kgs | 9.8kgs |
| Gross Weight | 5.0kgs | 6.5kgs | 11.5kgs |
| Packing Size (mm) | 670*315*190 | 775*315*190 | 800*390*190 |

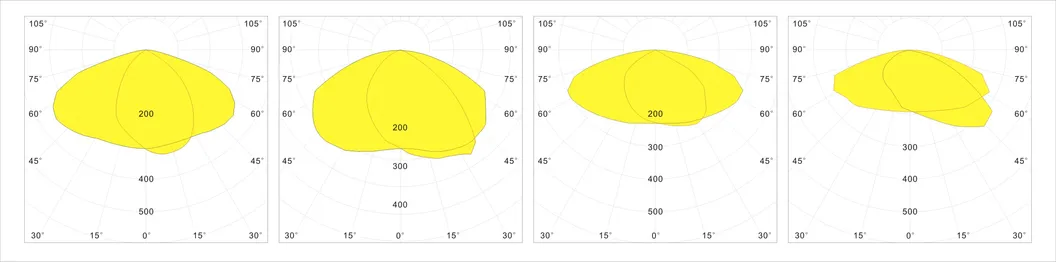

| DH-T1 | DH-T3-M | DH-T4-M | DY-T3-M | GY-T2-M01 | GX-T2-M | GX-T4-L | HX-T2-S |
| DH-T2-L | DH-T3-MA | DH-T5-M | GY-T1-M | GY-T3-M01 | GX-T3-M | HY-T2-M | HX-T2-M |
| DH-T2-M | DH-T3-MB | DY-T2-M | GY-T2-M | GX-T2-S | GX-T4-M | HY-T3-M | HX-T3-M |
| Product Code | YASL-14-40 | YASL-14-80 | YASL-14-120 |
|---|---|---|---|
| L (mm) | 620 | 738 | 922 |
| W (mm) | 287 | 289 | 362 |
| H (mm) | 131 | 131 | 140 |
| S.No | Requirement | Detail | Test Standard |
|---|---|---|---|
| Physical Requirements | |||
| 1 | Housing type | Heavy-duty rugged pressure die-cast aluminium alloy | ISO 3522 |
| 2 | Cover | Tempered Glass | - |
| 3 | Gasket | Silicon Rubber gasket | - |
| 4 | Housing wattage range | 30W 40W 50W 60W 80W 100W 150W 200W 220W 240W | - |
| 5 | Socket Options | NEMA socket, Photocell, Smart controller, Shorting Cap | - |
| 6 | Stainless-steel components | Minimum 316L Grade 316L | - |
| 7 | IP Protection | IP66 | IEC 60529 |
| 8 | IK Protection | IK08 | IEC 62262 |

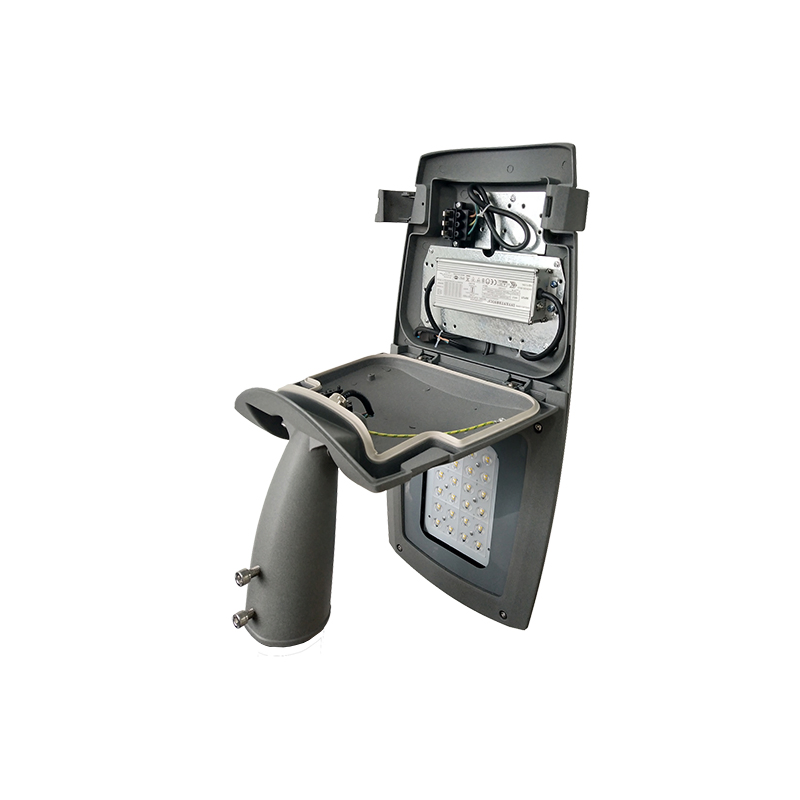

| 9 | Tool free opening | Tool-free access to gear compartment | - |
| 10 | Corrosion tests | EN/ISO 9227 - Salt spray tests for 1000 hours | EN/ISO 9227 |
| 11 | Vibration test | ANSI C136.31 - Roadway and Area Lighting Equipment | ANSI C136.31 |
| LED and Optics | |||
| 1 | LED Make / Type | >2W High power LED with ceramic base (3V - Single chip die) | - |
| 2 | LED driving current | <750ma | - |
| 3 | LED life | >100,000 hours @L95 | LM80 and TM21 |
| 4 | Optics Material | UV PC | - |
| 5 | Lighting distributions | Type I, II, III, IV | - |
| Thermal Requirements | |||
| 1 | Ambient temperature range | -40°C to 55°C | - |
| 2 | Storage temperature range | up to 85°C | - |
| 3 | LED Case temperature (Tc) | <75°C | UL1598 |
| 4 | Driver Case temp range | <85°C | UL1598 |
| Performance | |||
| 1 | Input Voltage Range | 110V 120V 220V 270 305VAC - 50/60Hz | IEC 60598-2-3 |
| 2 | Power Factor | >0.90 | IEC 60598-2-3 |
| 3 | THD | <20% | IEC 60598-2-3 |
| 4 | Surge Protection | 10KV | - |
| 5 | Dimming | 1-10V or 1-10V+DALI | - |
| 6 | Appliance class | Class I or Class II | IEC 60598-2-3 |
| 7 | CCT / CRI | 3000K/4000K/5700K, >70Ra | ANSI C78.377A |
| 8 | Lumen efficacy | ≥ 160lm/W (25°C ambient temperature) | LM-79 / LM-82 |

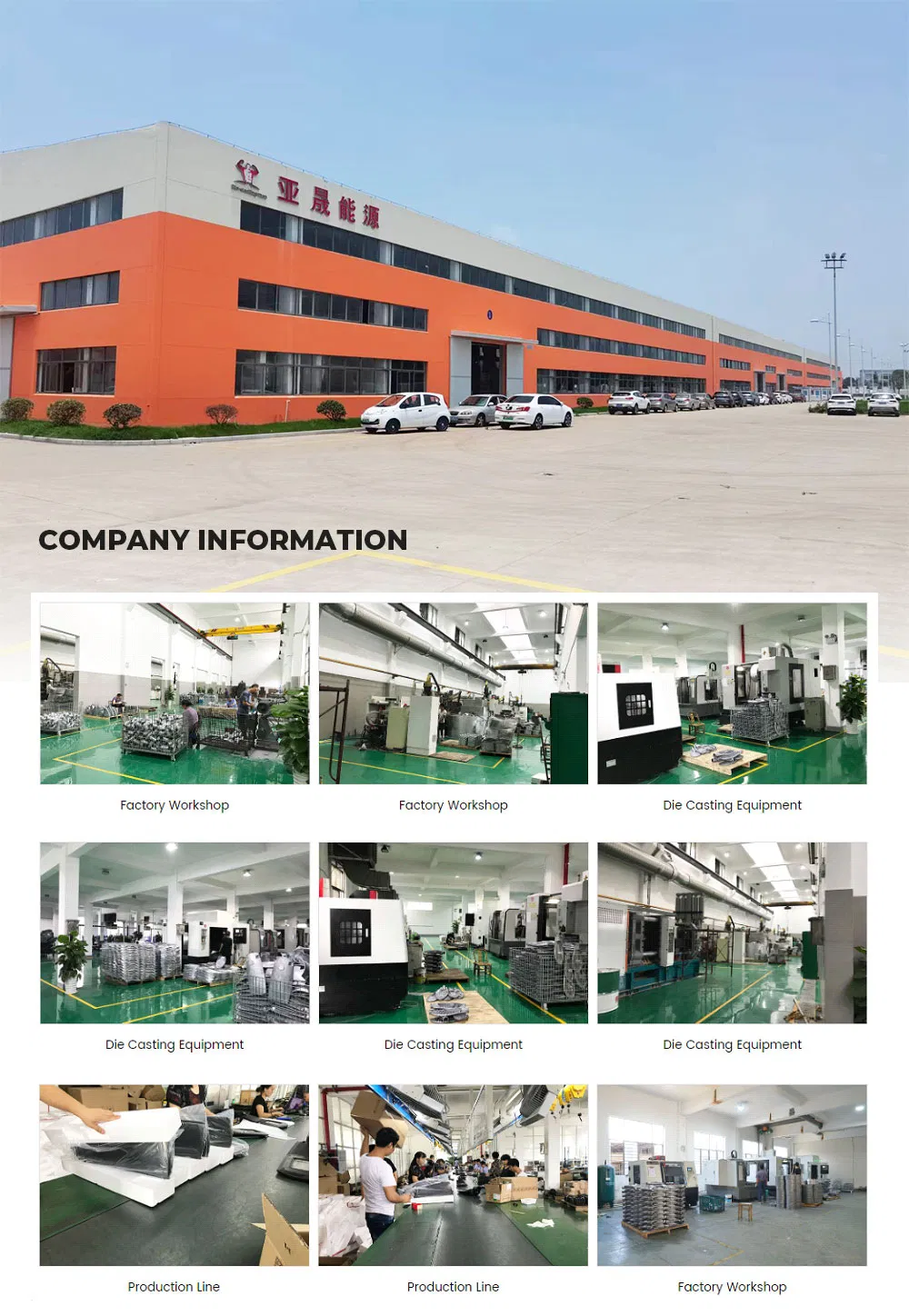

Established in 1996, we are a professional lighting manufacturer specializing in design, development, production, and testing.
