Lithium battery: Top or hang on the pole, holds 1 battery.
>10 years
1 pc
10
Cables
2*1.5mm², from LED lamp to controller.
>20 years
3-8M
2*4mm², from solar panel to controller.
>20 years
2-8M
2*4mm², from solar battery to controller.
>20 years
2-5M
System Operating Configuration & Customization Notes
Working Capacity: 10-12 hours per night at intelligent working mode * 2-3 overcast days (based on 5.0 KWH/M²/day radiation).
Pole Configuration Options: Pole heights ranging from 3M to 12M are available for solar street lights, and 15M to 50M for high mast poles.
LED Power Choices: Ranges from 15W to 150W for solar street light selection.
Design Flexibility: Fully customized designs are available.
Smart Functionality: Solar street lights with integrated remote functions are optional.

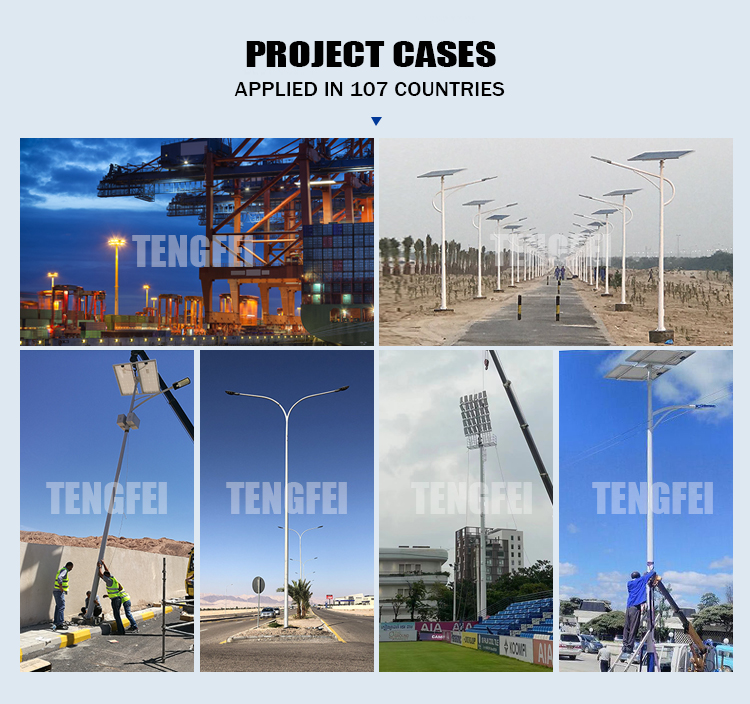

Product & Project Gallery
Frequently Asked Questions
Q

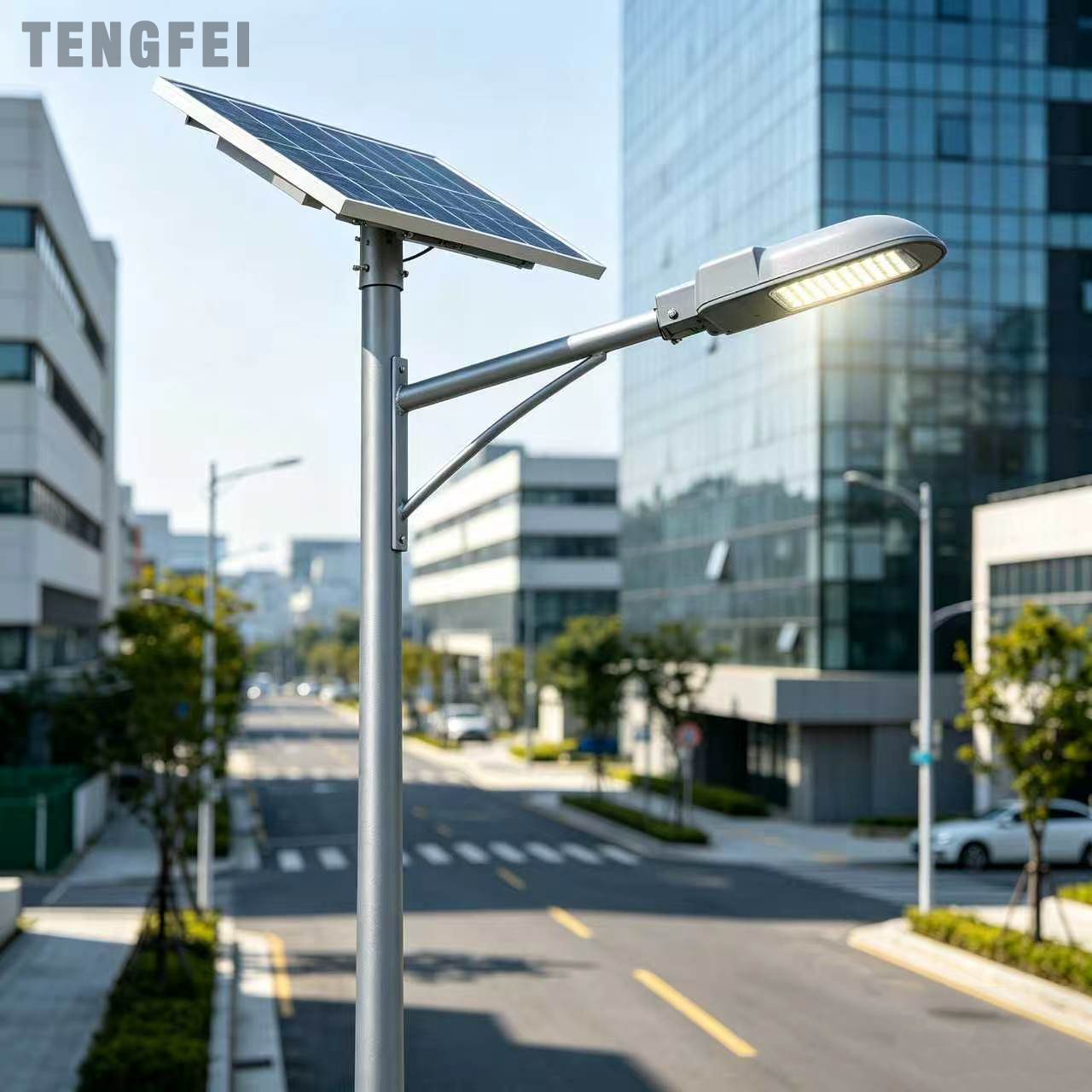

What are the core technical specifications of the 10M Pole Solar Street Light system?

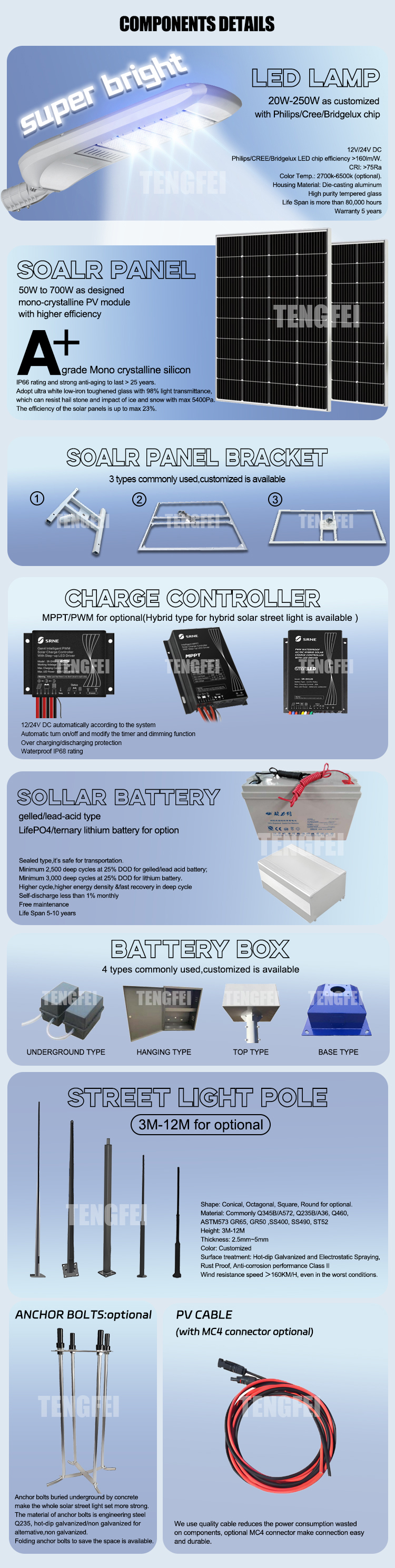

The standard system configuration features a 10-meter Q235 steel lighting pole, a 270W/36V Mono Crystalline solar panel with over 22.12% efficiency, an 80W Phillips Lumileds 3030 LED lamp delivering 160LM/W, and a 15A automatic dusk-to-dawn charge controller.
Q
What battery options are available, and what are their lifespans?
We offer two battery configurations. Option 1 is a Maintenance-Free Deep Cycle GEL Battery (120AH/12V * 2PCS) featuring a lifespan of >10 years. Option 2 is a LifePO4 Lithium Battery (84AH/25.6V) which is lighter in weight and provides a longer cycle lifespan of 5~10 years.
Q
How long does the solar street light operate, and how does it handle overcast days?
The solar street light system operates for 10-12 hours per night using an intelligent working mode. It is designed to sustain 2-3 consecutive overcast or rainy days under an average solar radiation assumption of 5.0 KWH/M²/day.
Q
Can I customize the pole height and the LED lamp wattage?
Yes, customized designs are fully supported. For solar street lights, the pole height can range from 3M to 12M (and 15M to 50M for high mast poles). The LED lamp power options range from 15W up to 150W.
Q

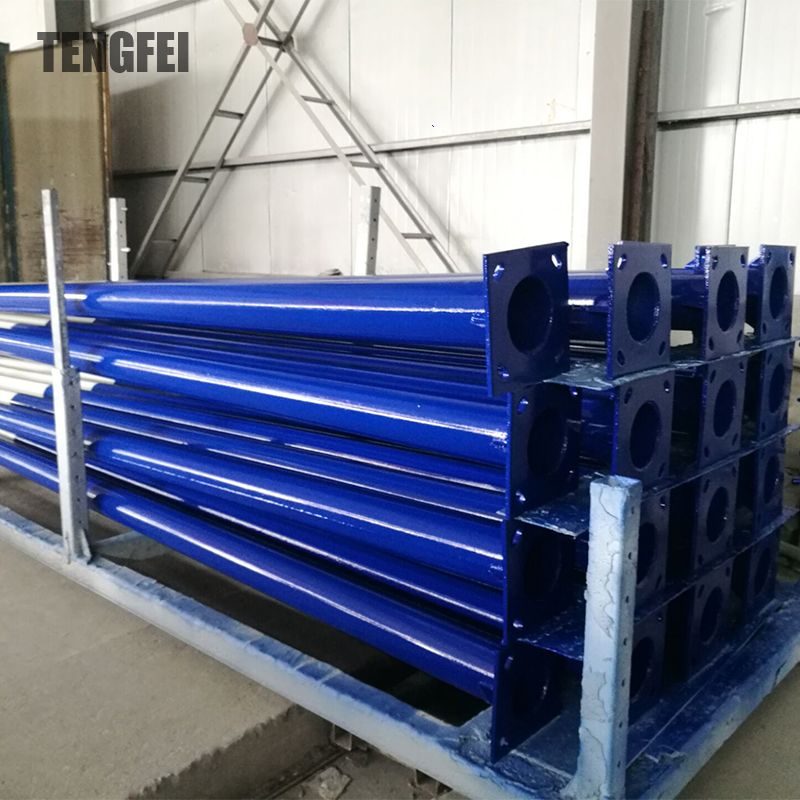

What is the expected lifespan of structural parts like the pole and bracket?

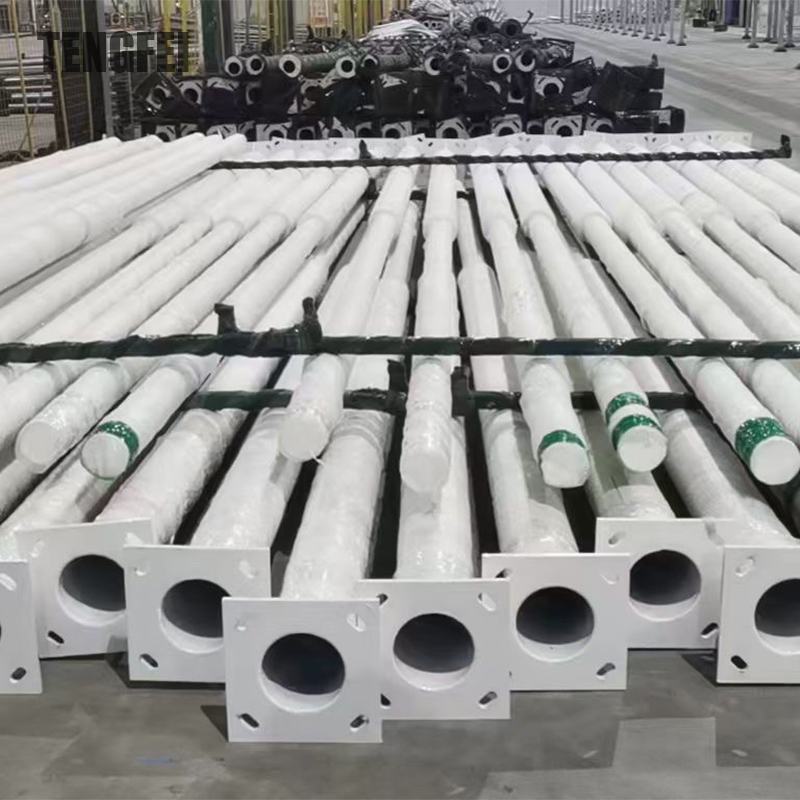

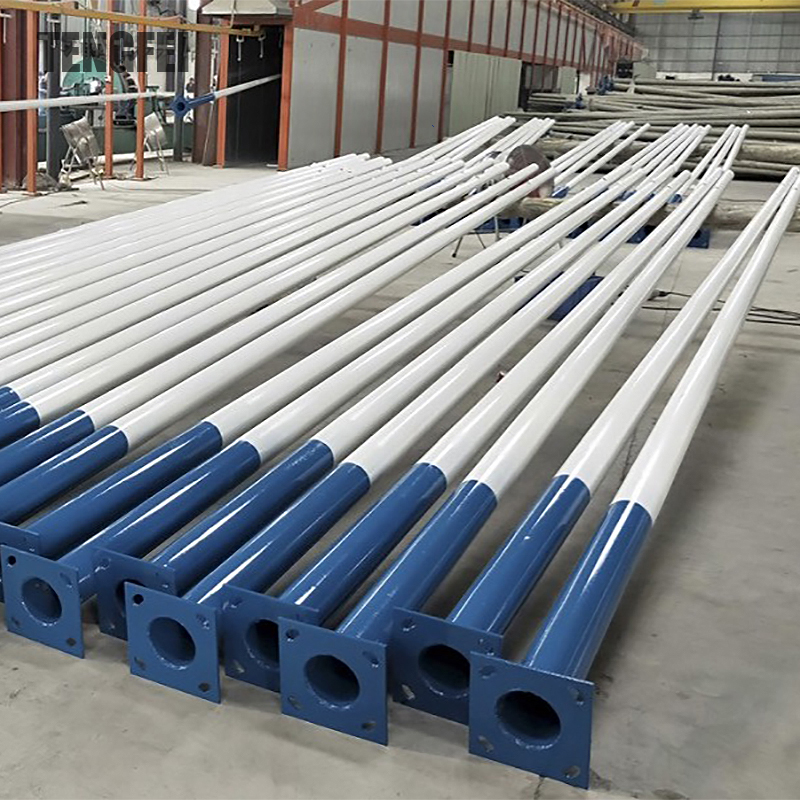

Both the lighting pole and the solar panel bracket are constructed of Q235 steel that is hot-dip galvanized and powder coated. These rust-proof structural components boast an expected lifespan of >25 years.
Q
Is there a remote control feature available for the solar street lights?
Yes. While the standard setup utilizes a automatic dusk-to-dawn charge controller, a solar street light design incorporating remote functionality is available as an optional feature.
