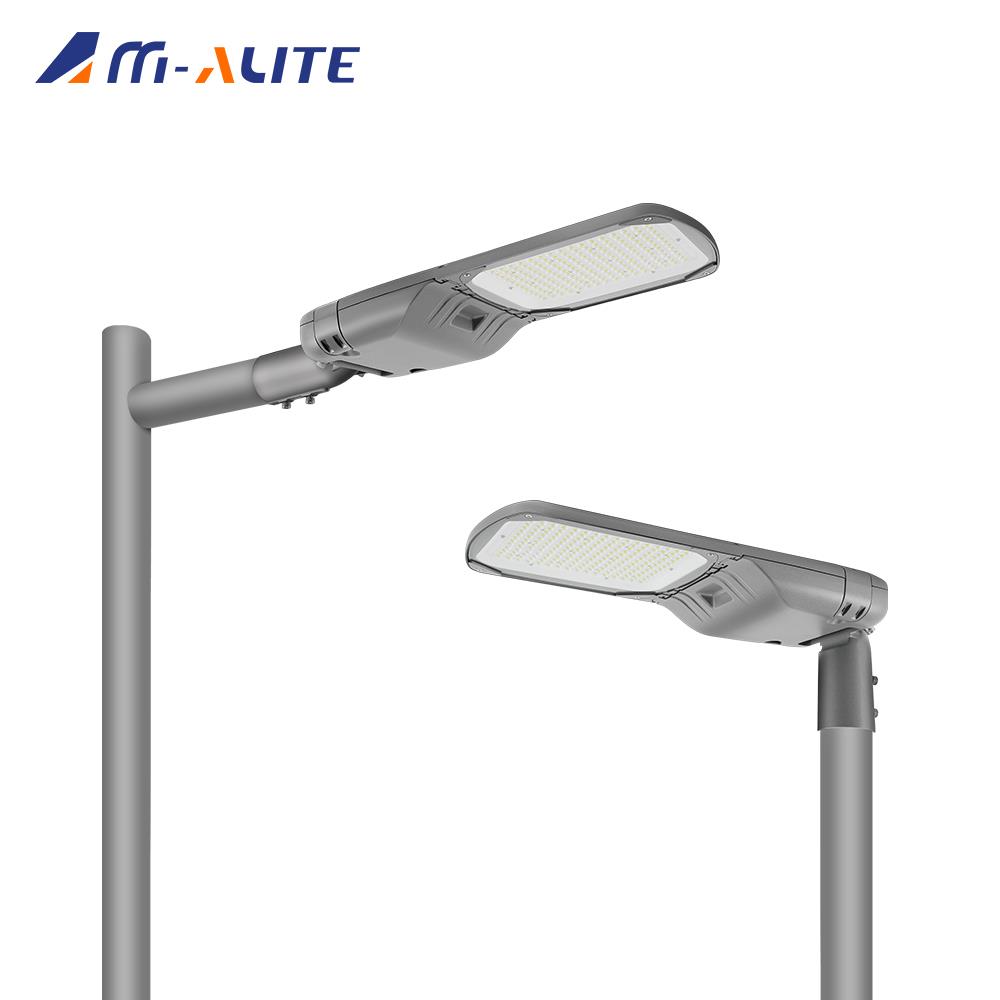

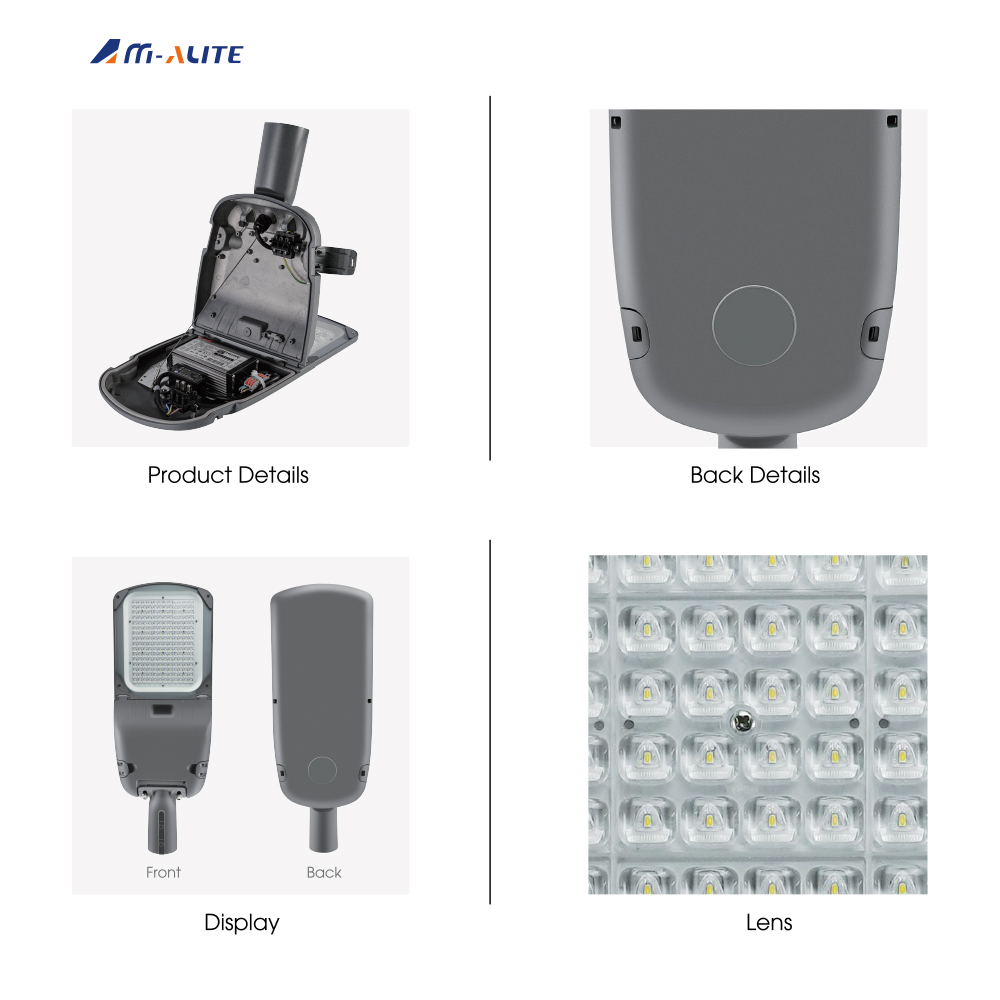

Led Street Light Retrofit Kit Led Street Light With 7 Pin Nema 90w Lampadaire Solaire Led Street Light

Product Description

Application

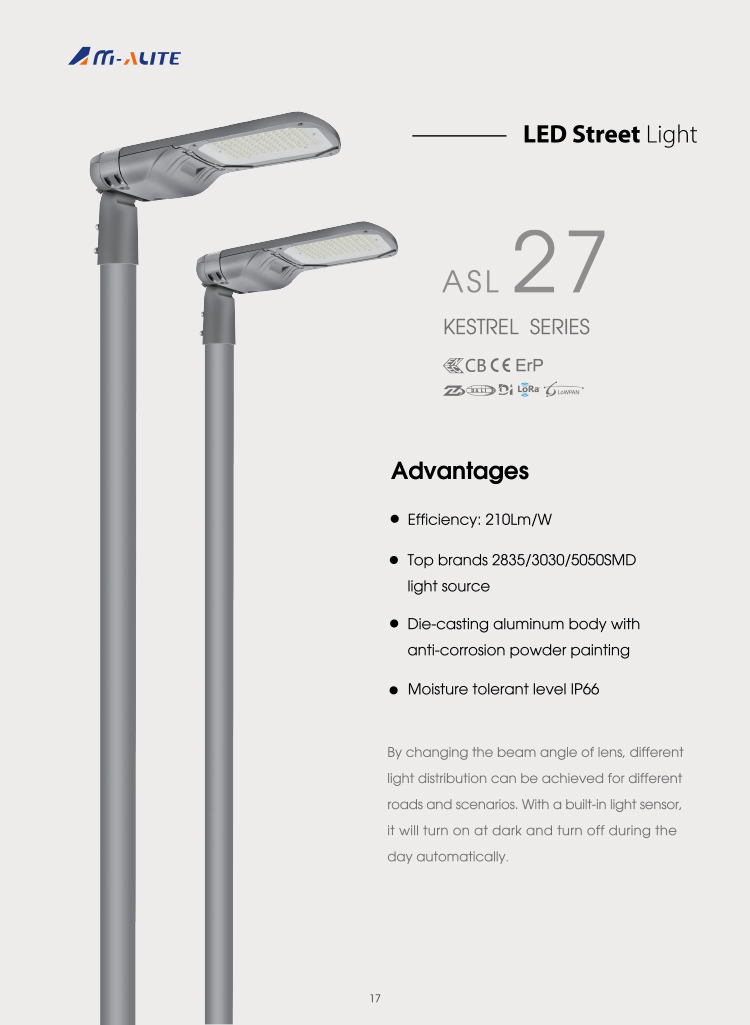

Application view 1

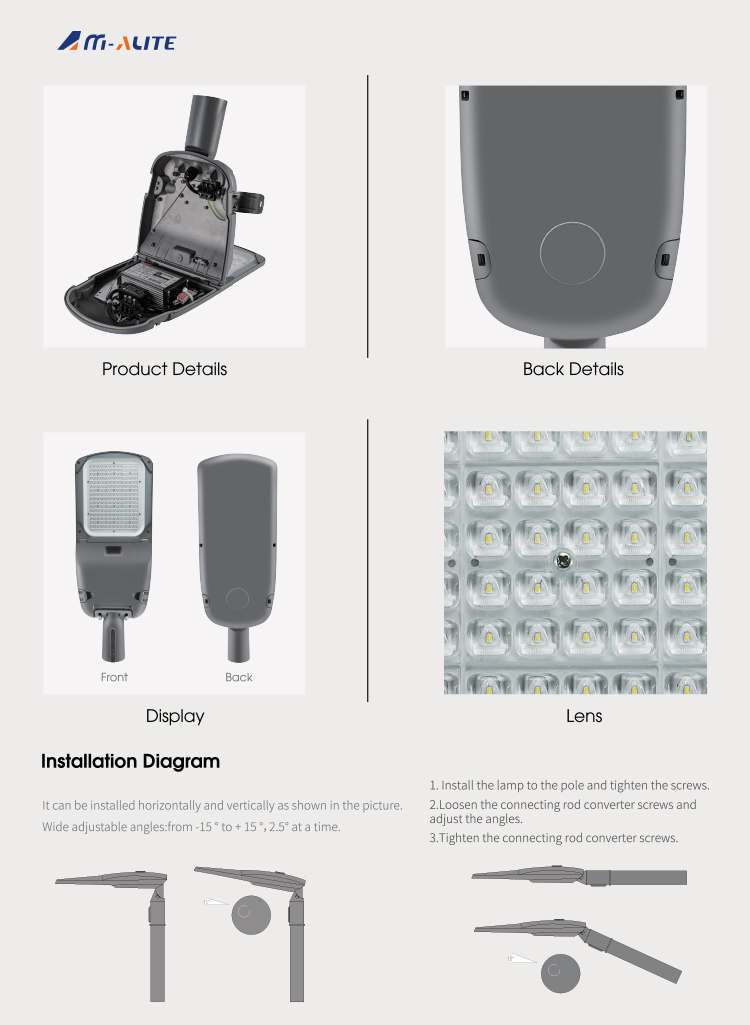

Application view 2

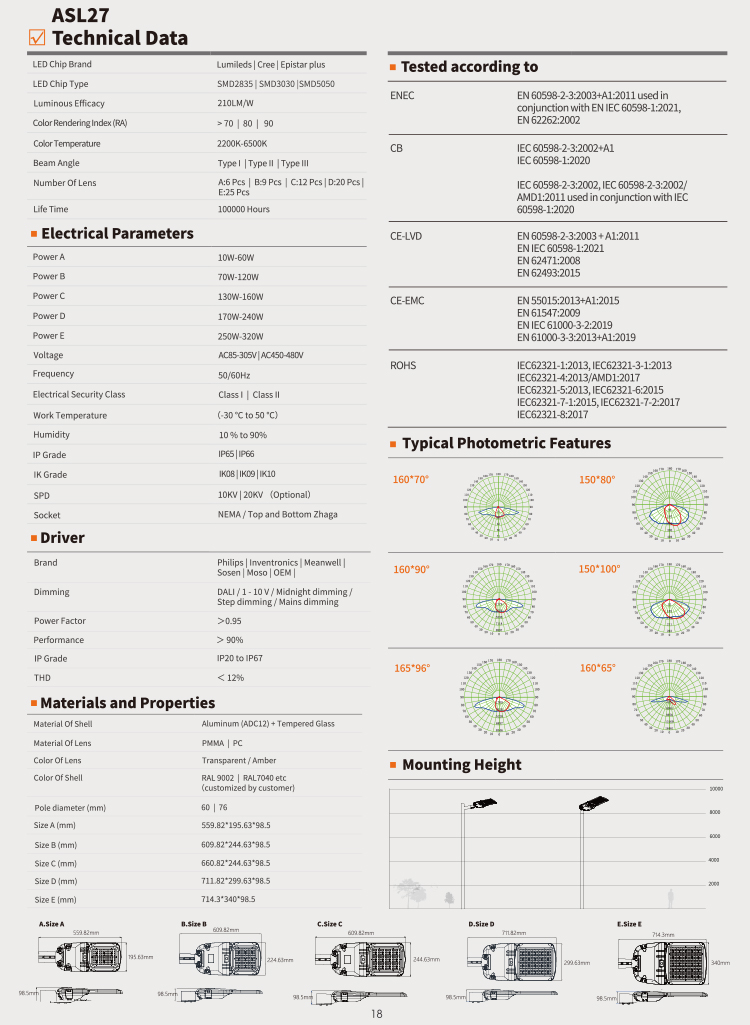

Application view 3

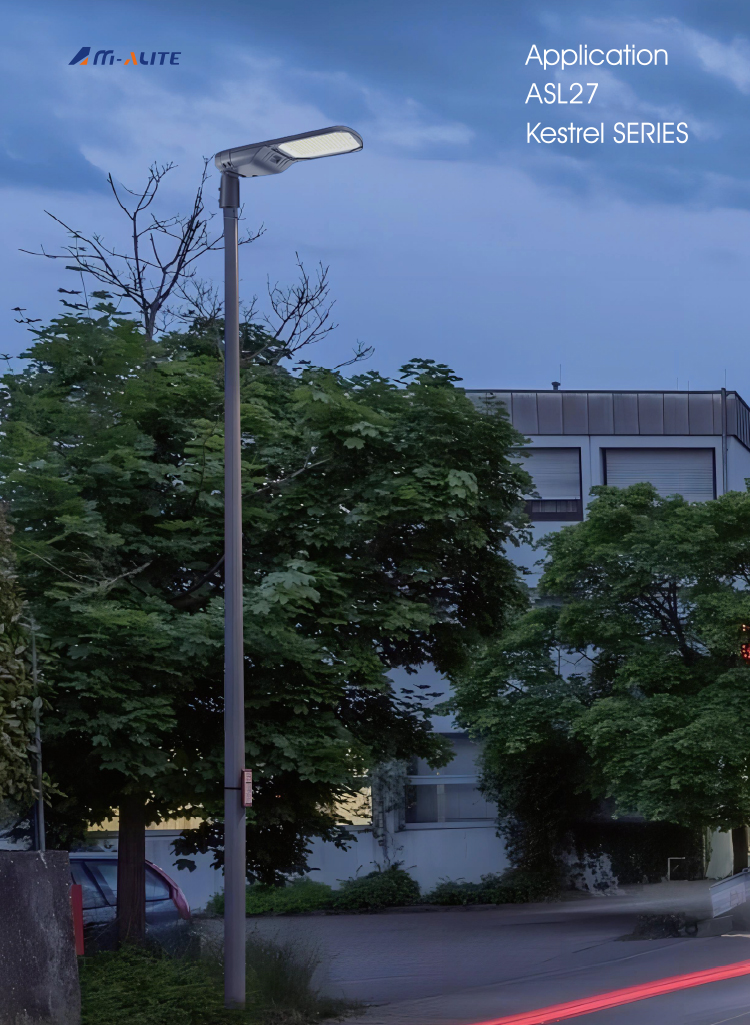

Application view 4

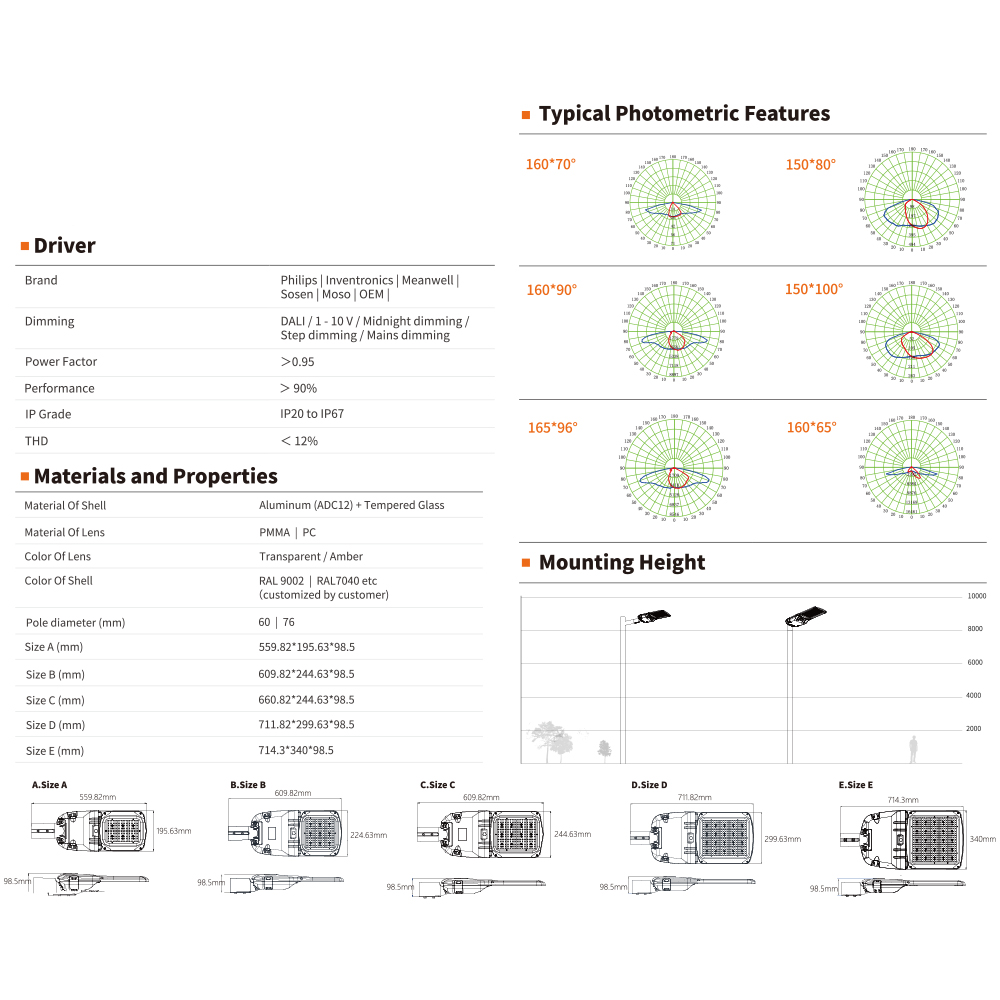

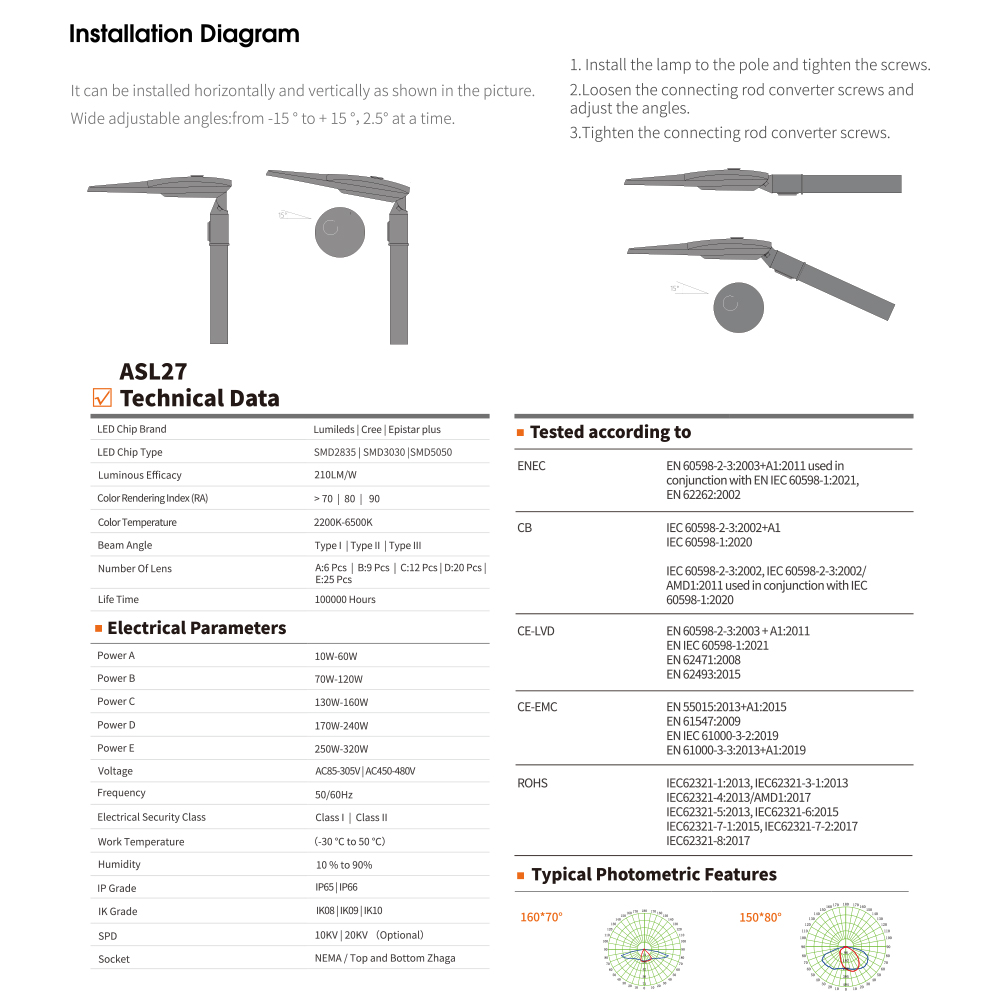

Product Specifications
General Parameter Specification Details
Product Model ASL27
Power Factor PF ≥ 0.95
Input Voltage 120-240V
Luminous Efficacy 140 Lm/W
Color Temperature 2400K / 2700K / 3000K / 4000K / 5000K
Color Rendering Index Ra > 70 / 80 / 90
Lifespan 50,000 Hours
Material Aluminum + Glass (AL+Glass)
IP Rating IP66
Power Rating Lumen Output Number of LEDs
30W 4,500 Lm 48 PCS
60W 7,500 Lm 64 PCS
80W 9,000 Lm 96 PCS
100W 12,000 Lm 144 PCS
120W 15,000 Lm 144 PCS
150W 18,000 Lm 180 PCS
200W 22,500 Lm 192 PCS
240W 27,000 Lm 216 PCS
300W 34,000 Lm 48 PCS (5050)
Packing & Loading
Packing and loading detail
Hot Sale
Hot sale options
Certifications
Certification 1
Certification 2
Certification 3
Certification 4
Frequently Asked Questions
Q1: What are the power options available for the ASL27 series?
A1: The ASL27 series offers a versatile selection of power configurations, ranging from low to high outputs including 30W, 60W, 80W, 100W, 120W, 150W, 200W, 240W, and 300W models.
Q2: What is the ingress protection (IP) rating and durability of the light housing?
A2: The light features an IP66 rating, meaning it is dust-tight and completely protected against powerful water jets. The structural body is built from premium Aluminum and robust Glass (AL+Glass) to ensure long-term durability in outdoor conditions.
Q3: What input voltage does the ASL27 series support?
A3: The system operates on a wide standard input voltage range of 120-240V, making it highly compatible with most standard commercial and municipal power grids.
Q4: What color temperatures and CRI parameters are available?
A4: We offer multiple color temperature selections including 2400K, 2700K, 3000K, 4000K, and 5000K. The Color Rendering Index (CRI) options include Ra >70, >80, and >90, depending on your lighting requirements.
Q5: What is the overall lifespan and luminous efficacy of the ASL27?
A5: It has a rated operational lifespan of over 50,000 hours and delivers a high luminous efficacy of 140Lm/W, maximizing power savings while maintaining high brightness output.
Q6: What type of LEDs are integrated into the 300W model?
A6: The 300W high-power model is equipped with 48 units of high-performance 5050 specification LEDs, delivering up to 34,000 Lumens.
