| Model NO. | AGSL2201 |
| Lamp Body Material | Aluminum Alloy |
| Power | 30W |
| Application | Highway, Parking Lot, Street |
| IP Rating | IP66 |

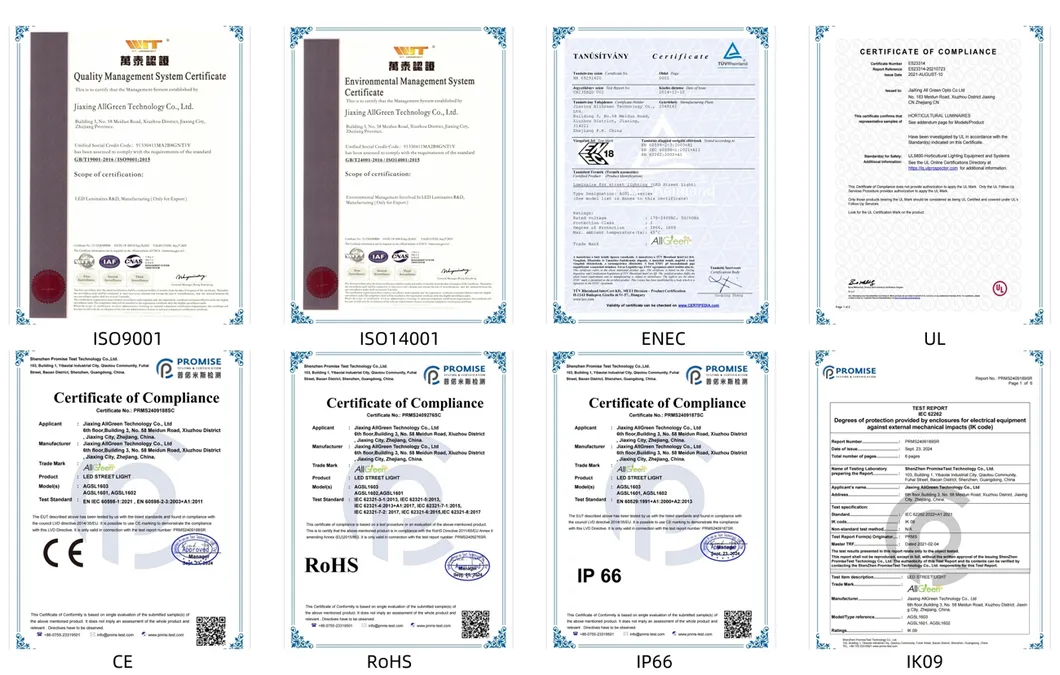

| Certification | CE, EMC, LVD, RoHS, IP66 Ik08 |
| Input Voltage | 100-277V |
| With Light Source | With Light Source |
| LED Chips Brand | Luxeon 3030 |
| Luminaire Efficiency | up to 170lm/W |
| Beam Angle | Type II-M etc. |
| Warranty | 5 Years |
| Dimming | 1-10V/Dali/D4I/Timer etc. |
| Driver | Inventronics/MW/Moso/Sosen etc. |
| Options | NEMA/Zhaga/Photocell |
| Transport Package | Standard Export Carton |
| Specification | 1016*390*118mm |
| Trademark | Customized |
| Origin | China |
| HS Code | 9405429000 |
| Production Capacity | 20000PCS/Month |
| Package Size | 73.50cm * 38.50cm * 17.00cm |
| Package Gross Weight | 7.300kg |

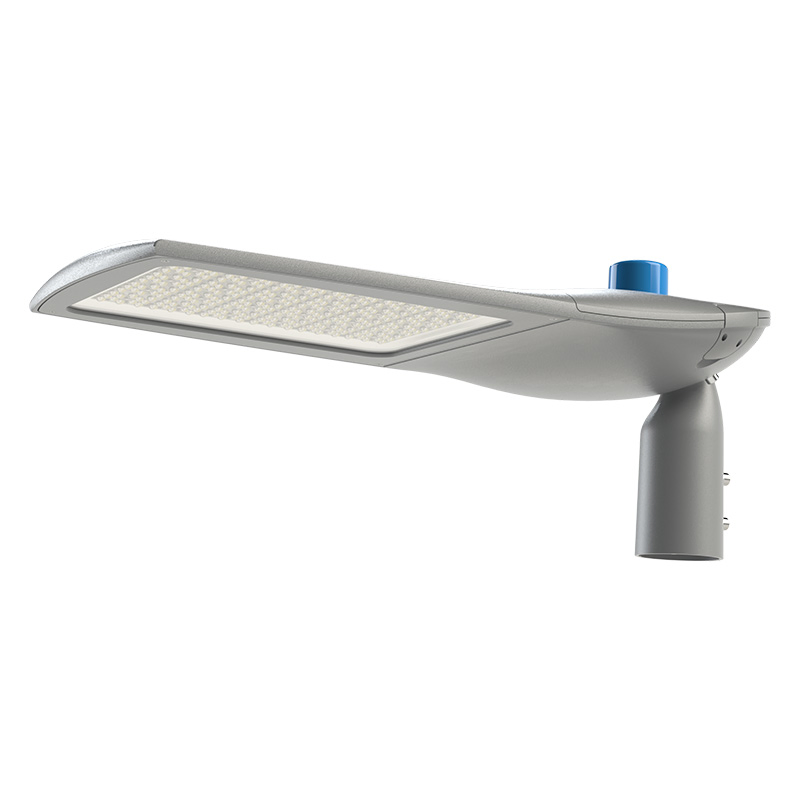

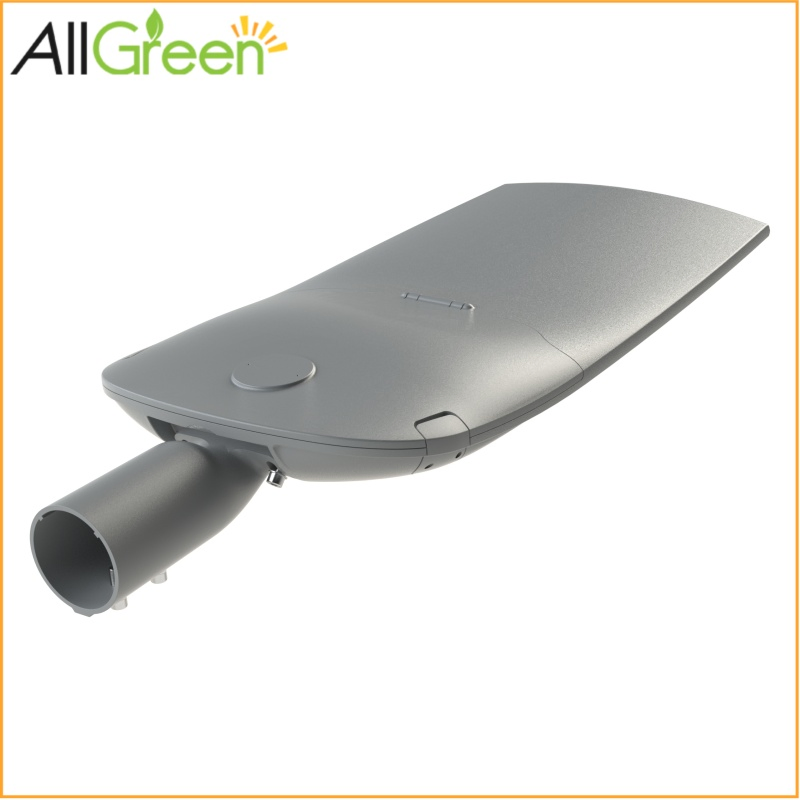

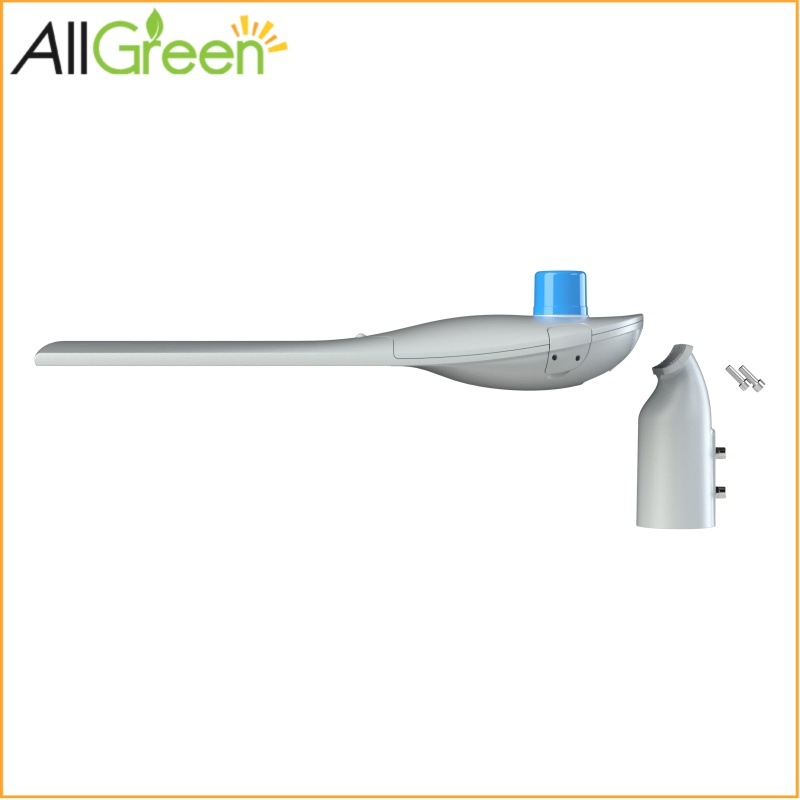

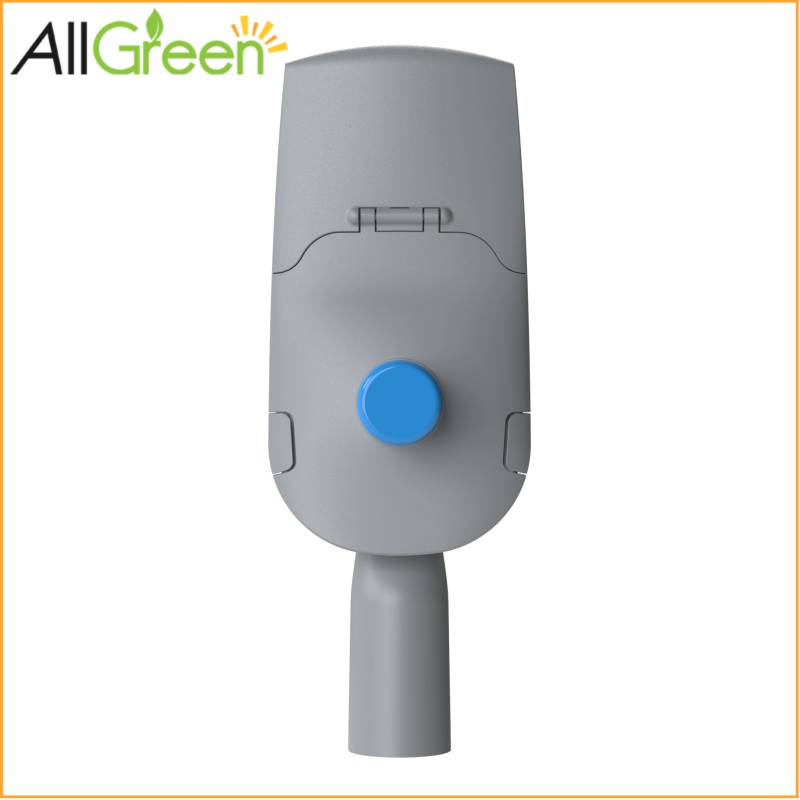

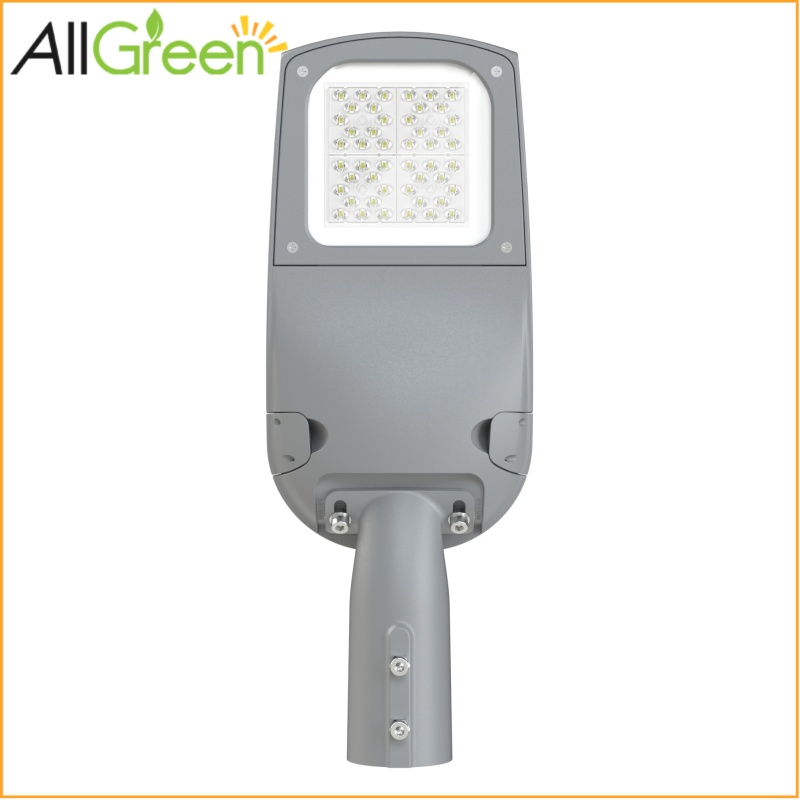

Outdoor LED Street Lighting 200W Die-Casting Aluminum Housing Parking Lot Lights with Photocell for Commercial Street Area Light
Designed for parking lots, commercial streets, and outdoor areas, these high-performance LED lights combine robust die-casting aluminum housing with IP66 waterproofing and IK08 impact resistance, ensuring durability in harsh environments. Equipped with a built-in photocell for automatic dusk-to-dawn operation, they deliver energy-efficient illumination while reducing maintenance costs. Offering high lumens output and uniform light distribution, they enhance safety and visibility in urban or industrial zones. Available in CKD (Completely Knocked Down) and SKD (Semi-Knocked Down) kits, these lights provide flexible assembly options to meet regional standards and budget needs. Ideal for municipalities, businesses, and contractors seeking reliable, weatherproof, and cost-effective outdoor lighting solutions.
Key Highlight: Equipped with premium Luxeon 3030 LED Chips, offering high system efficacy up to 170lm/W and 5 years warranty for reliable long-term operations.

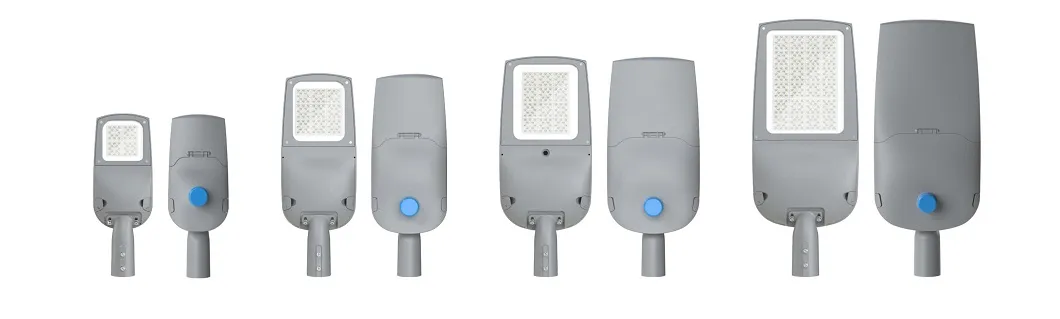

| MODEL | AGSL2201 | AGSL2202 | AGSL2203 | AGSL2204 |
|---|---|---|---|---|
| System Power | 30W-60W | 80W-100W | 120W-200W | 200W-240W |
| Lumen Efficiency | 140 lm/W (160lm/W optional) | |||
| CCT | 2700K-6500K | |||
| CRI | Ra≥70 (Ra≥80 optional) | |||
| Beam Angle | Type II-S, Type II-M, Type III-S, Type III-M | |||
| Input Voltage | 100-240V AC (277-480V AC optional) | |||
| Power Factor | ≥0.95 | |||
| Frequency | 50/60HZ | |||
| Surge Protection | 6kv line-line, 10kv line-earth | |||
| Dimming | Dimmable (1-10v/Dali/Timer/Photocell) | |||
| IP, IK Rating | IP66, IK09 | |||
| Operating Temp. | -20ºC to +50ºC | |||
| Storage Temp. | -40ºC to +60ºC | |||
| Lifespan | L70≥50000 hours | |||
| Warranty | 5 Years | |||

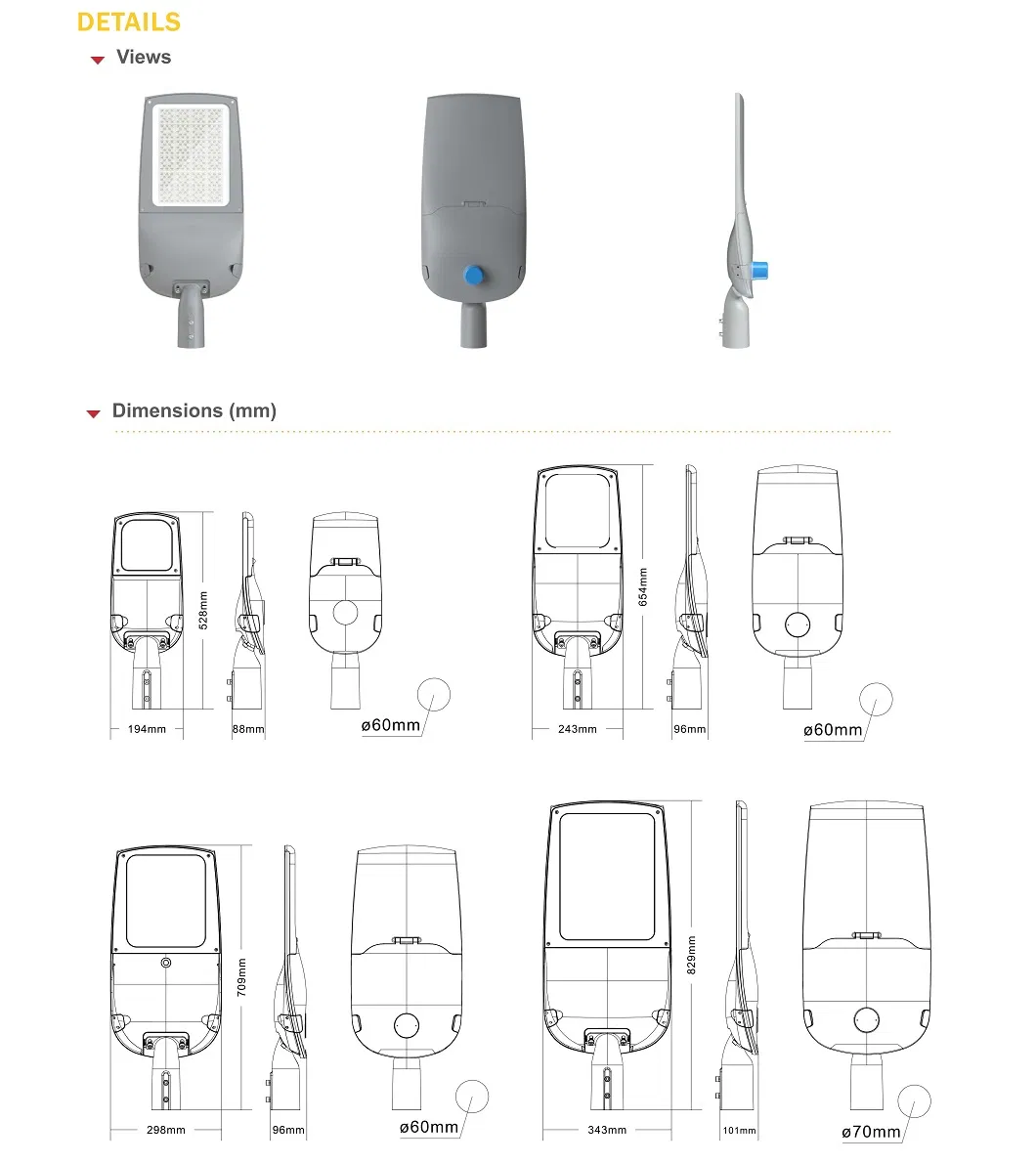

| Product Dimension | 528*194*88mm | 654*243*96mm | 709*298*96mm | 829*343*101mm |

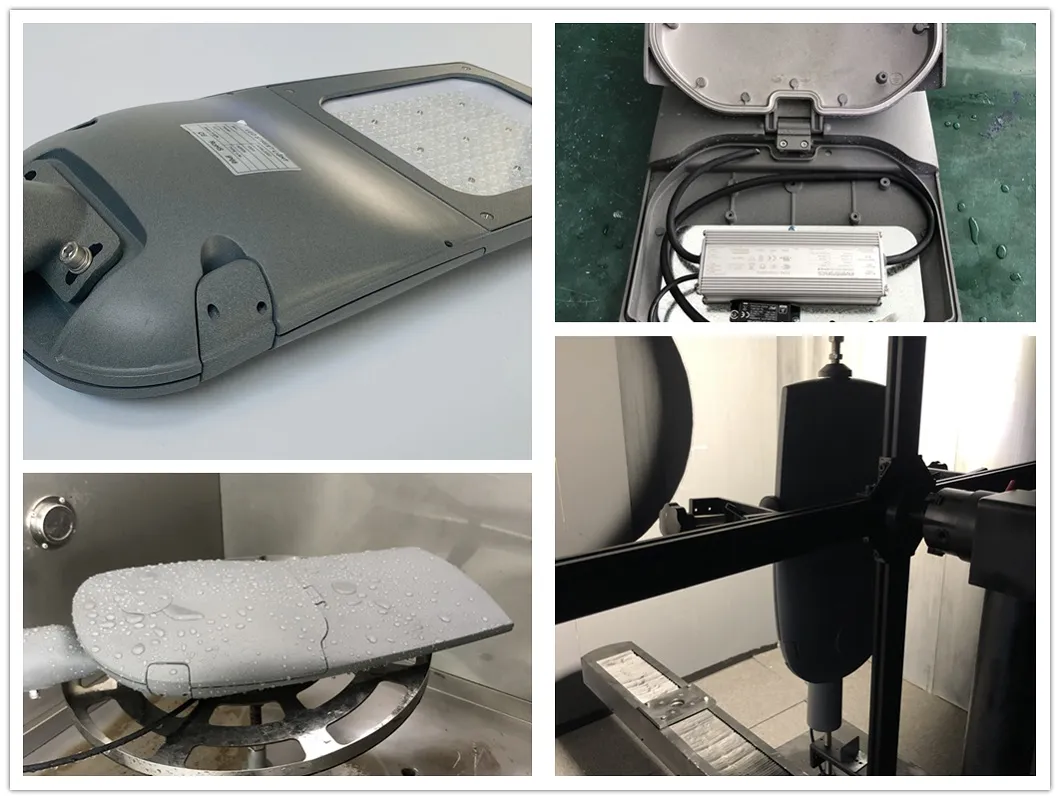

These street lights feature an IP66 weatherproofing rating, preventing dust and strong water ingress, and an IK09 impact rating to withstand mechanical shocks and harsh outdoor environments.
Yes, we support multiple dimming methods including 1-10V, DALI, Timer dimming, as well as NEMA/Zhaga photocell sensor interfaces for smart dusk-to-dawn operations.
We utilize high-efficiency Luxeon 3030 LED chips alongside reliable driver brands such as Inventronics, MeanWell (MW), Moso, or Sosen to ensure a lifespan exceeding 50,000 hours.
Yes, the LED street lights are available in CKD (Completely Knocked Down) and SKD (Semi-Knocked Down) form factors, providing flexibility for local assembly and optimized tariff costs.
We provide a comprehensive 5-year warranty on our complete LED street lighting systems, covering performance, driver reliability, and housing integrity.
